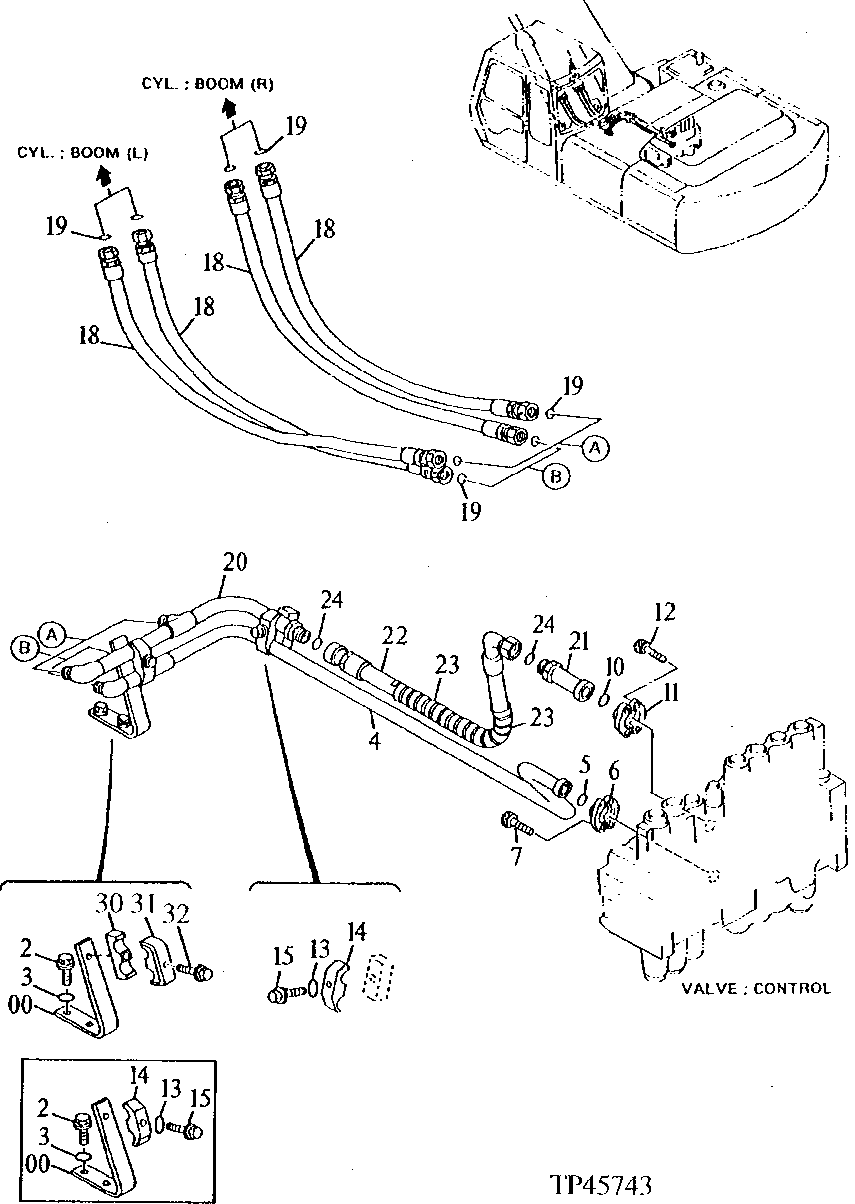

Запчасти John Deere 90ELC 237 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

9725460

Support

(SUB FOR TH109547)

1шт.

9743745

Support

(SUB FOR AT204856)

1шт.

2

19M7872

Cap Screw

M12 X 25

2шт.

19M8011

Cap Screw

M12 X 30

2шт.

3

12H301

Lock Washer

1/2"

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

4

8048429

Line

(SUB FOR AT155546)

1шт.

5

T59014

O-Ring

1шт.

6

R29424

Flange Fitting

2шт.

7

19M8337

Screw

M10 X 30

4шт.

10

T78313

O-Ring

1шт.

11

H61354

Flange Fitting

2шт.

12

19M8337

Screw

M10 X 30

4шт.

13

12H301

Lock Washer

1/2"

2шт.

12H301

Lock Washer

1/2"

1шт.

14

4153488

Clamp

(SUB FOR TH103780)

2шт.

4153488

Clamp

(SUB FOR TH103780)

1шт.

15

19M7753

Cap Screw

M12 X 70

2шт.

19M7753

Cap Screw

M12 X 70

1шт.

18

AT155257

Hydraulic Hose

4шт.

19

T77858

O-Ring

8шт.

20

8052740

Line

(SUB FOR AT155570)

1шт.

21

9738326

Line

(SUB FOR AT155586)

1шт.

22

4289539

Hose

(SUB FOR AT155372)

1шт.

23

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

24

T76938

O-Ring

2шт.

30

AT309596

Clamp

(SUB FOR AT155350, 4285724)

1шт.

31

4285725

Clamp

(SUB FOR AT155351)

1шт.

32

19M8088

Cap Screw

M12 X 75

1шт.

12H301

Lock Washer

1/2"

1шт.
