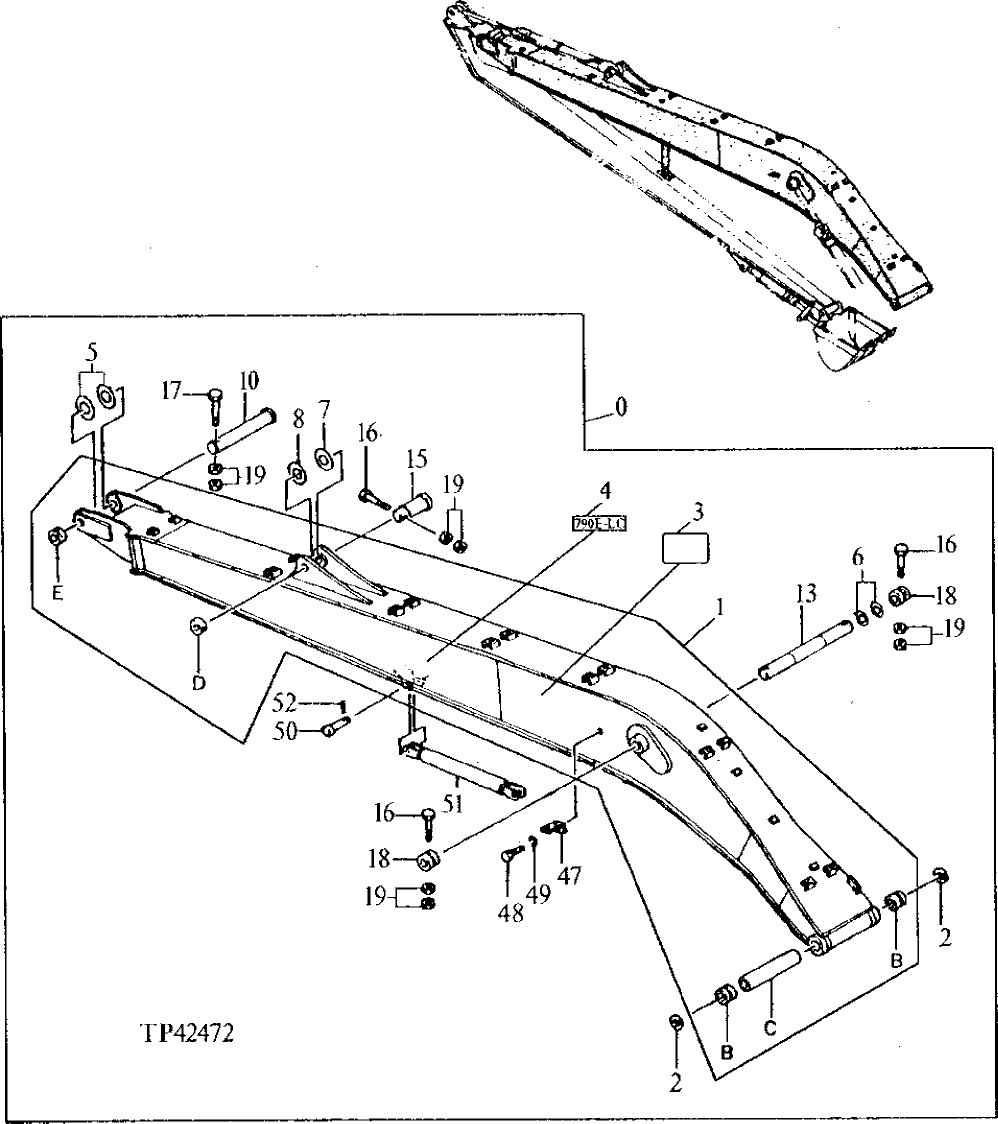

Запчасти John Deere 90ELC 236 - SUPER LONG FRONT 3344 FRAMES 3340

0

AT159517

Mounting Parts

WHOLEGOODS (SUPER LONG FRONT) (CONTAINS A LL ITEMS ON THIS PAGE - ADDITIONAL COMPONE NTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

7025574

Excavator Boom

(SUB FOR AT159562)

1шт.

1B

3051159

Bushing

(SUB FOR AT154682)

2шт.

1C

4253959

Spacer

(SUB FOR AT154738)

1шт.

1D

TH102409

Bushing

92.075 X 120.650 X 50.800 mm

1шт.

1E

Plate

( TH103198 NLA)

1шт.

2

TH102411

Seal

2шт.

3

JD5627

Label

(LEAPING DEER)

2шт.

4

0001247

Label

(SUB FOR T114391)(MODEL DESIGNATION)

2шт.

5

4144513

Washer

(SUB FOR TH102423)

2шт.

6

4372971

Washer

(SUB FOR AT154797, THIS APPL ICATION ) (SUB FOR AT217822)

2шт.

7

TH106307

Washer

1шт.

8

TH106308

Washer

1шт.

9

T145119

Label

(SUPER LONG FRONT LIFT CHART) (NOT ILLUSTRATED)

1шт.

10

AT318055

Pin

(SUB FOR 3060072, AT159564)

1шт.

13

TH109795

Dowel Pin

90 X 864 mm

1шт.

15

TH103204

Pin

1шт.

16

19M8503

Cap Screw

M20 X 160

3шт.

17

19M8100

Cap Screw

M20 X 180

1шт.

18

TH102409

Bushing

92.075 X 120.650 X 50.800 mm

2шт.

19

14M7277

Nut

M20

8шт.

47

4224631

Angle

(SUB FOR TH111685)

1шт.

48

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

49

12H317

Lock Washer

9/16"

1шт.

50

AT159565

Pin

2шт.

51

9738224

Cylinder

(SUB FOR AT159566)

1шт.

52

11M7034

Cotter Pin

5 X 63 mm (SUB FOR AT159567)

2шт.
