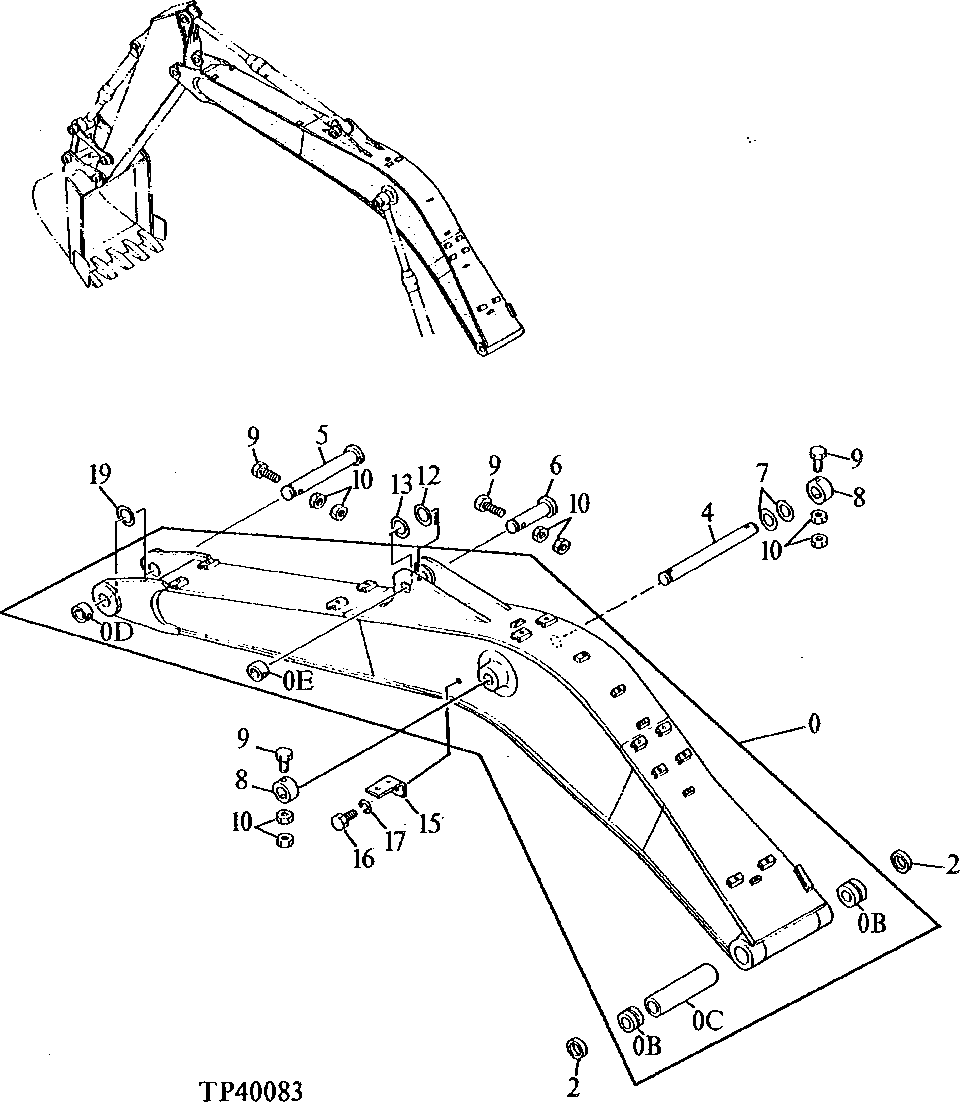

Запчасти John Deere 90ELC 235 - Boom 3344 FRAMES 3340

0

7021914

Excavator Boom

(SUB FOR AT154816)

1шт.

0B

3051159

Bushing

(SUB FOR AT154682)

2шт.

0C

4253959

Spacer

(SUB FOR AT154738)

1шт.

0D

TH102409

Bushing

1шт.

0E

4067719

Pivot

(SUB FOR TH102410)

1шт.

2

TH102411

Seal

2шт.

4

TH109795

Dowel Pin

1шт.

5

TH109796

Dowel Pin

1шт.

6

TH109797

Pin

1шт.

7

4372971

Washer

(SUB FOR AT154797, THIS APPL ICATION ) (SUB FOR AT217822)

2шт.

8

TH102409

Bushing

2шт.

9

19M8503

Cap Screw

M20 X 160

4шт.

10

14M7277

Nut

M20

8шт.

12

4367409

Thrust Washer

(SUB FOR TH104297, THIS APPL ICATION ) (SUB FOR AT214039)

1шт.

13

4366691

Thrust Washer

(SUB FOR TH104296, THIS APPL ICATION ) (SUB FOR AT214029)

1шт.

15

4224631

Angle

(SUB FOR TH111685)

1шт.

16

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

17

12H317

Lock Washer

9/16"

1шт.

19

4361177

Washer

(SUB FOR TH106309 ) (SUB FOR AT214005)

1шт.
