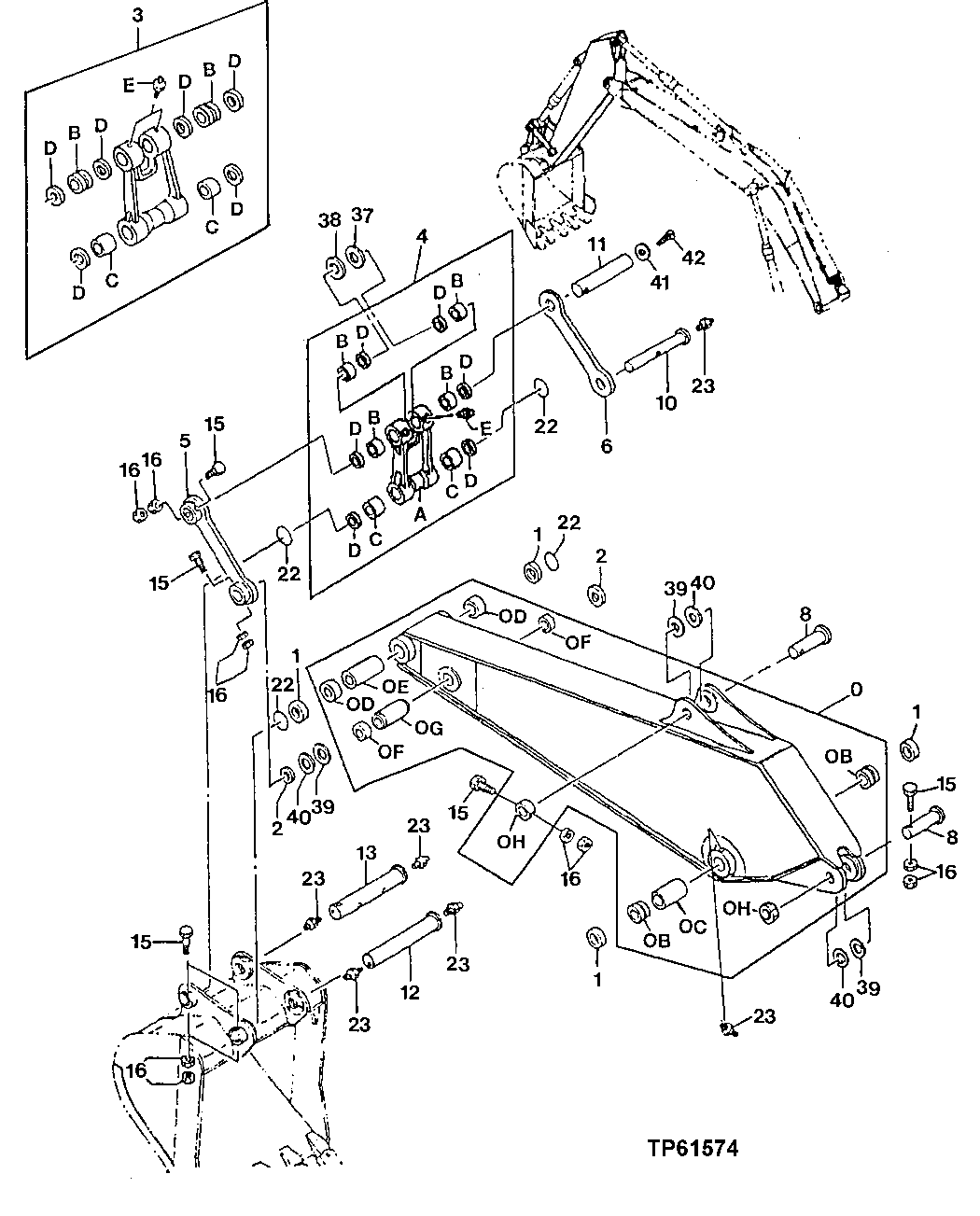

Запчасти John Deere 90ELC 233 - Long Arm (3.61 m. - 11 ft. 10 in.) 3340 Frames

0

7032176

Arm

(SUB FOR AT131364, AT155724 OR AT217 867)(WHEN REPLACING 2.32M OR 2.96M AR M, ALSO ORDER AT155743 AND AT155744)

1шт.

0B

3054062

Bushing

(SUB FOR TH109801 ) (SUB FOR AT1546 89)(USE WITH AT155724 ARM ASSEMBLY)

2шт.

4385295

Bushing

(SUB FOR AT186154)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

2шт.

0C

4144320

Spacer

(SUB FOR TH102428)(USE WI TH AT155724 ARM ASSEMBLY)

1шт.

4360149

Spacer

(SUB FOR AT217790)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

1шт.

0D

TH109802

Bushing

(USE WITH AT155724 ARM ASSEMBLY)

2шт.

4355876

Bushing

(SUB FOR AT217782)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

2шт.

0E

4144379

Spacer

(SUB FOR TH102430)(USE WI TH AT155724 ARM ASSEMBLY)

1шт.

4372776

Spacer

(SUB FOR AT217818)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

1шт.

0F

TH109803

Bushing

(USE WITH AT155724 ARM ASSEMBLY)

2шт.

4332285

Bushing

(SUB FOR AT217750)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

2шт.

0G

4144380

Spacer

(SUB FOR TH102432)(USE WI TH AT155724 ARM ASSEMBLY)

1шт.

4360145

Spacer

(SUB FOR AT217789)(USE WITH AT2 17867 REPLACEMENT ARM ASSEMBLY)

1шт.

0H

4067719

Pivot

(SUB FOR TH102410)

2шт.

1

TH102445

Seal

(I.D. 100 MM - O.D. 115 MM)

4шт.

2

TH102446

Seal

(I.D. 80 MM - O.D. 95 MM)

2шт.

3

Link

(SUB AT217891)( AT1548 35 NO LONGER AVAILABLE)

1шт.

3B

TH109806

Bushing

2шт.

3C

TH109807

Bushing

2шт.

3D

TH102445

Seal

6шт.

3E

TH100074

Lubrication Fitting

2шт.

4

8066447

Link

(SUB FOR AT217891)

1шт.

4B

4358100

Bushing

(SUB FOR AT217787)

4шт.

4C

4355876

Bushing

(SUB FOR AT217782)

2шт.

4D

TH102445

Seal

(I.D. 100 MM - O.D. 115 MM)

6шт.

4E

TH100074

Lubrication Fitting

2шт.

5

8050930

Link

(SUB FOR AT154838)

1шт.

6

3056355J

Link

(SUB FOR AT154693 OR 3056355)

1шт.

8

TH109797

Pin

2шт.

10

TH109810

Pin

1шт.

11

T138885

Pin

1шт.

12

TH110235

Pin Fastener

1шт.

13

TH110236

Pin Fastener

1шт.

15

19M8503

Cap Screw

M20 X 160

6шт.

16

14M7277

Nut

M20

12шт.

22

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T379473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

7шт.

37

4361177

Washer

(SUB FOR TH106309 ) (SUB FOR AT214005)

ARшт.

38

4189837

Washer

(SUB FOR TH106310)

ARшт.

39

4366691

Thrust Washer

(SUB FOR TH104296, THIS APPL ICATION ) (SUB FOR AT214029)

ARшт.

40

4367409

Thrust Washer

(SUB FOR TH104297, THIS APPL ICATION ) (SUB FOR AT214039)

ARшт.

41

T138902

Bushing

1шт.

42

19M8029

Cap Screw

M16 X 30

1шт.

50

AT176026

Arm

WHOLEGOODS (INCLUDES LONG ARM, BUCKET CYLINDER AND LINKAGE) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S)

1шт.
