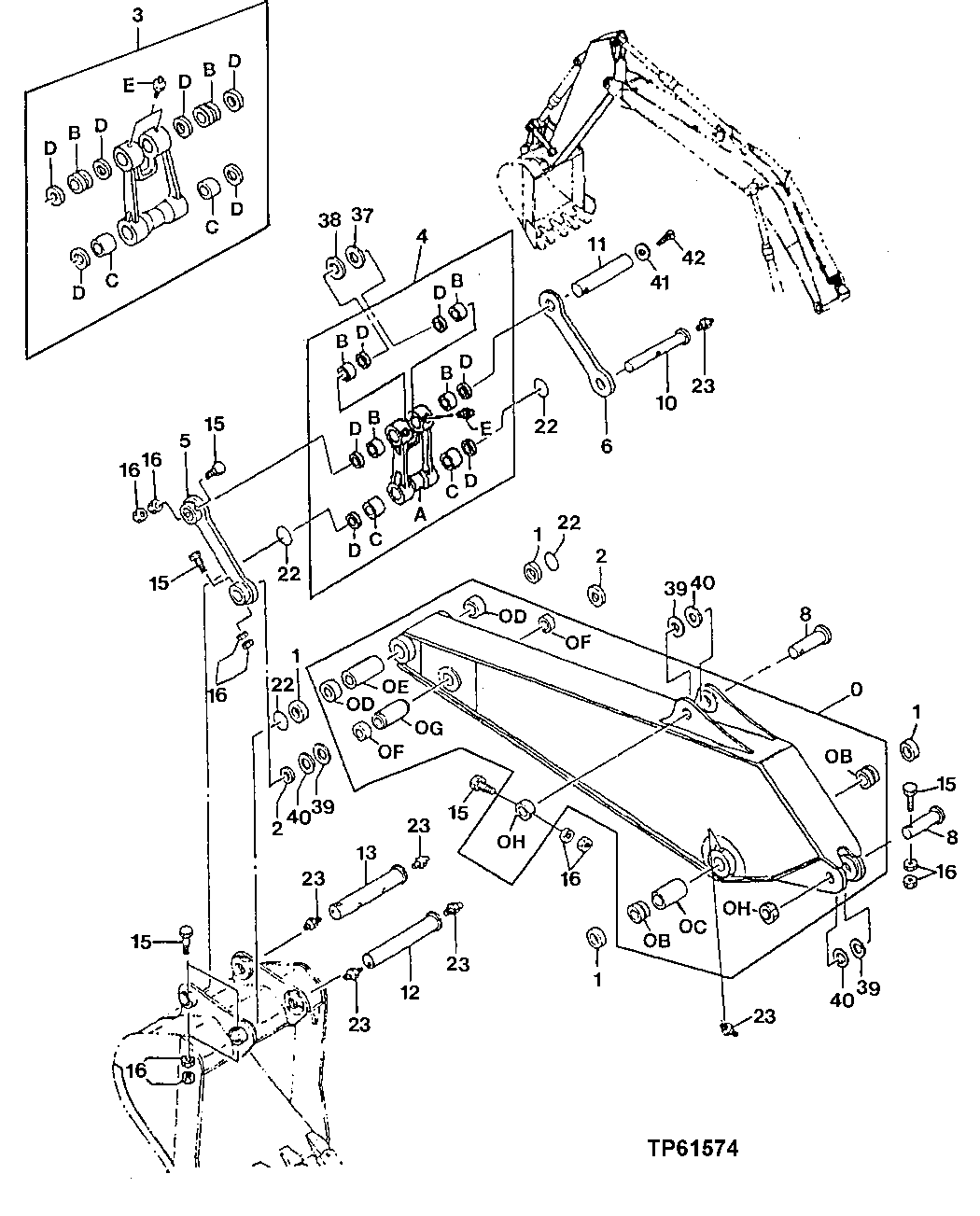

Запчасти John Deere 90ELC 230 - Standard Arm (2.96 m. - 9 ft. 9 in.) 3340 Frames

11

T138885

Pin

ALSO ORDER T138902 AND 19M8029, SUB FOR 3038448

1шт.

T138902

Bushing

Not Illustrated

1шт.

19M8029

Cap Screw

M16 X 30 Not Illustrated

1шт.

12

TH110235

Pin Fastener

1шт.

13

TH110236

Pin Fastener

1шт.

15

19M8503

Cap Screw

M20 X 160 (SUB FOR 19M8217)

6шт.

16

14M7277

Nut

M20

12шт.

22

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T379473

V-Ring Seal

V O-Ring

1шт.

23

TH100074

Lubrication Fitting

7шт.

37

4361177

Washer

(SUB FOR TH106309 ) (SUB FOR AT214005)

ARшт.

38

4189837

Washer

(SUB FOR TH106310)

ARшт.

39

4366691

Thrust Washer

(SUB FOR TH104296, THIS APPL ICATION ) (SUB FOR AT214029)

ARшт.

40

4367409

Thrust Washer

(SUB FOR TH104297, THIS APPL ICATION ) (SUB FOR AT214039)

ARшт.

41

T138902

Bushing

1шт.

42

19M8029

Cap Screw

M16 X 30

1шт.

50

AT175813

Arm

WHOLE GOODS Includes Standard Arm, Buc ket Cylinder And Linkage Not Illustrate d Contains All Items On This Page Addit ional Components Listed on Other Pages

1шт.
