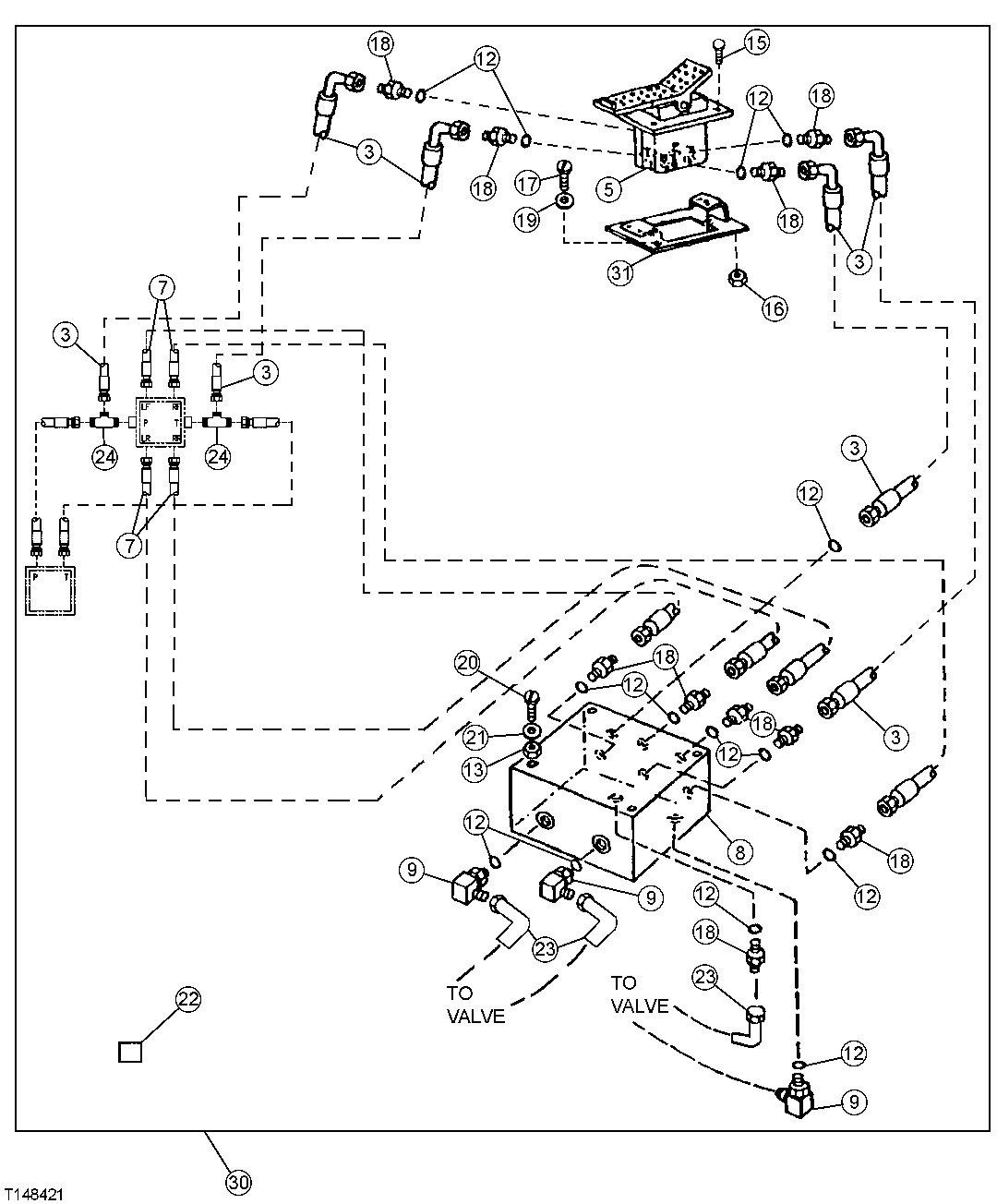

Запчасти John Deere 90ELC 228 - SINGLE PEDAL CONTROL KIT 3315 Control Linkage

3

AT71082

Hydraulic Hose

4шт.

5

AT152120

Valve

(FOOT)

1шт.

7

AT215538

Hydraulic Hose

4шт.

8

AT170459

Hyd Actuated Control Valve

1шт.

9

AT35121

Elbow Fitting

3шт.

12

R26448

O-Ring

14шт.

13

14M7273

Nut

4шт.

15

19M7866

Screw

4шт.

16

14M7298

Flange Nut

4шт.

17

19M7784

Screw

2шт.

18

R27212

Fitting

11шт.

19

24M7296

Washer

2шт.

20

19M8456

Cap Screw

4шт.

21

24M7036

Washer

4шт.

22

T153674

Label

(WITHOUT AUXILIARY HYDRAULICS) (LO WER FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

T153676

Label

(WITH AUXILIARY HYDRAULICS) (LOWE R FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

23

AE24616

Elbow Fitting

3шт.

24

AT36921

Tee Fitting

2шт.

30

AT196435

Kit

(SUB FOR AT170399)(WHOLEGOOD S) (SINGLE PEDAL PROPEL KIT)

1шт.

31

AT115535

Support

1шт.
