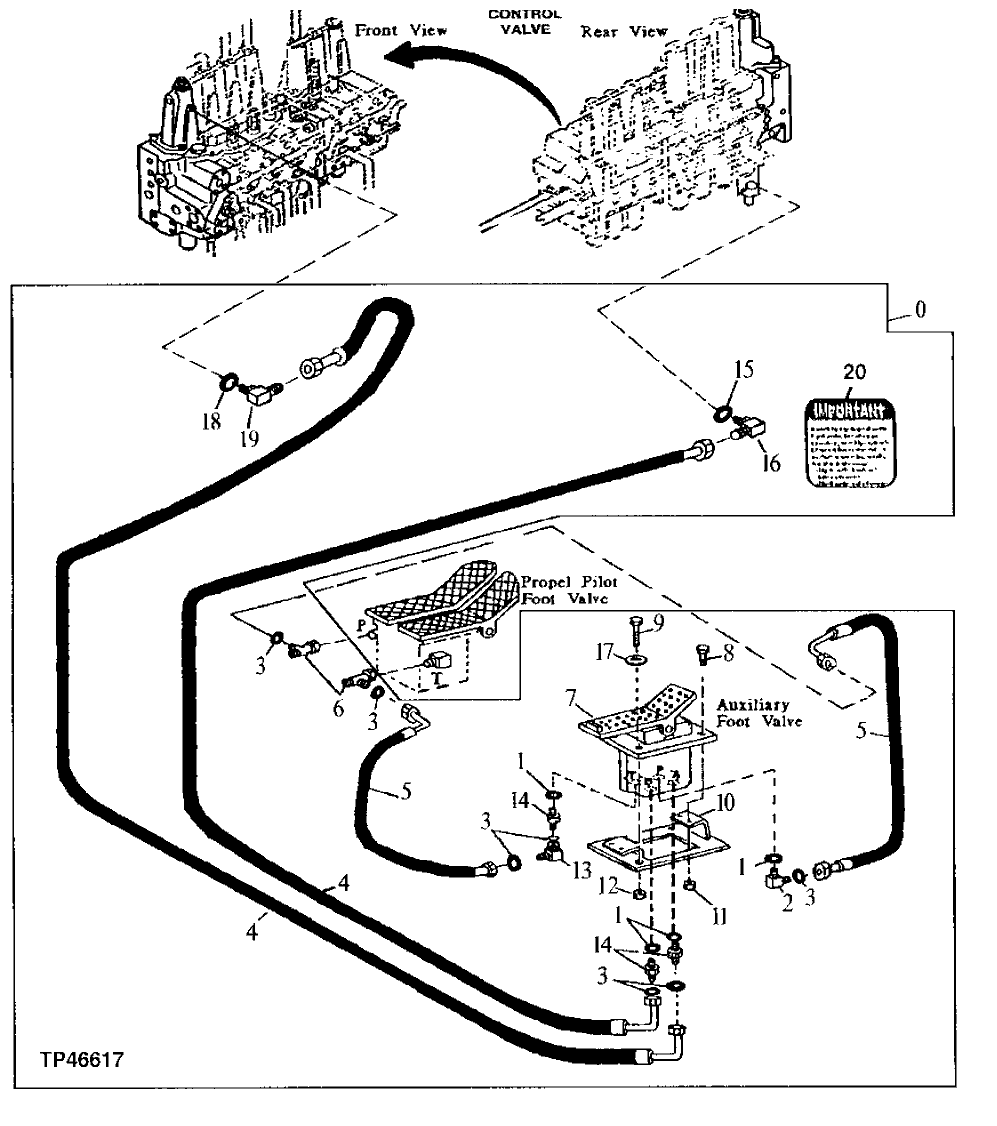

Запчасти John Deere 90ELC 223 - Auxiliary Foot Pedal Control 3315 Control Linkage

0

Control

( AT160350 AND AT185482 NLA) (S UB AT195684) ( AT195684 NLA) (AU XILIARY FOOT PEDAL) WHOLE GOODS

1шт.

1

R26448

O-Ring

4шт.

2

38H1004

Elbow Fitting

1шт.

3

T77613

O-Ring

7шт.

4

AT160348

Hydraulic Hose

2шт.

5

AT152138

Hydraulic Hose

2шт.

6

AT36921

Tee Fitting

2шт.

7

AT152120

Valve

1шт.

8

19M7866

Screw

4шт.

9

19M7784

Screw

2шт.

10

AT115535

Support

1шт.

11

14M7298

Flange Nut

4шт.

12

14M7296

Flange Nut

1шт.

13

38H1094

Elbow Fitting

1шт.

14

38H1160

Adapter Fitting

3шт.

15

CH11570

O-Ring

2шт.

16

AT137356

Elbow Fitting

2шт.

17

24M7296

Washer

2шт.

20

T149434

Label

Caution Decal

1шт.

90

AT172037

Clamp

NLA, WHOLE GOODS Hydraulic Thumb Kit Contains All Components On This Page A dditional Components On Separate Pages

1шт.
