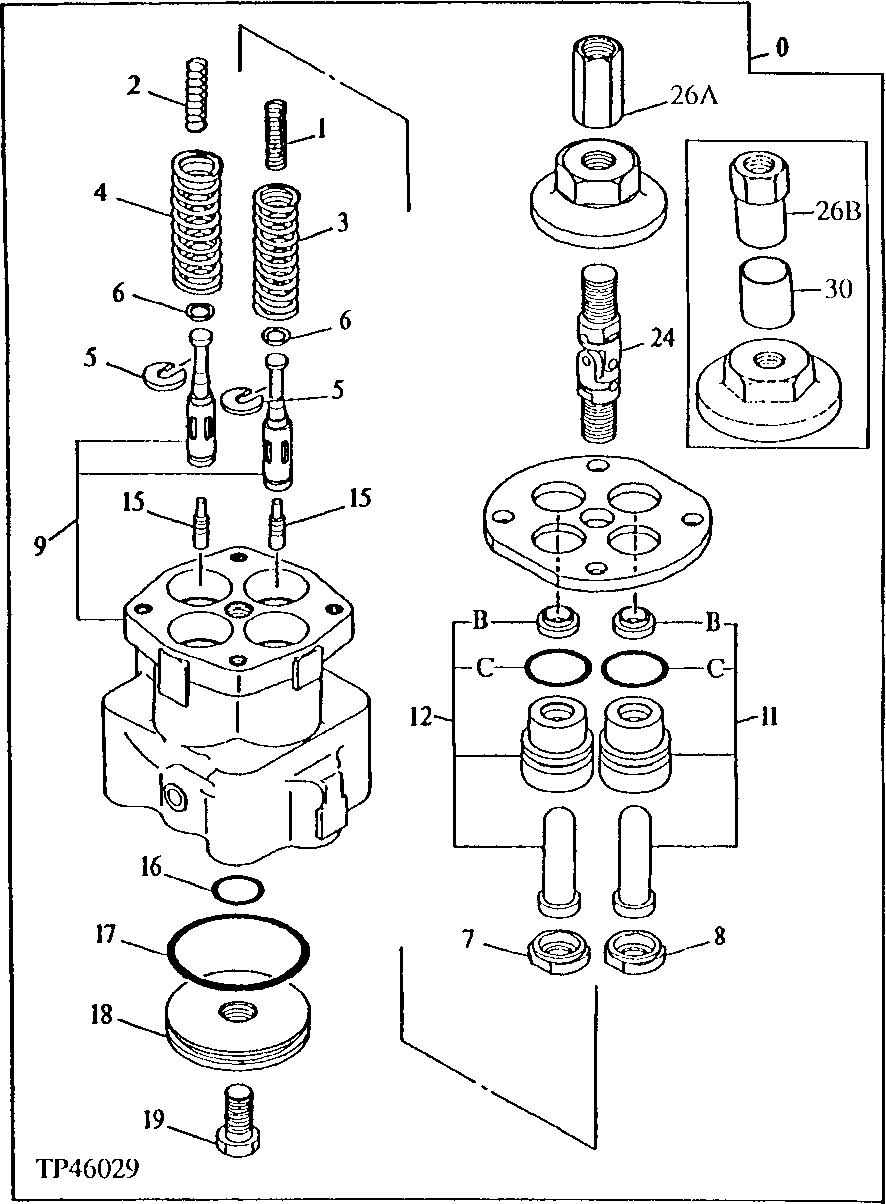

Запчасти John Deere 90ELC 220 - CONTROL LEVER PILOT VALVE 3315 Control Linkage

0

AT154525

Hyd Actuated Control Valve

(NLA) (ORDER AT189841)

1шт.

AT189841

Hyd/Pilot Cntl Valve Reman

(REMAN FOR AT154525)

1шт.

AT189843

Valve

(ORDER 9134239EX ) (SUB FOR AT202169)NLA

1шт.

9134239EX

Hyd/Pilot Cntl Valve Reman

(REMAN FOR AT189843)

1шт.

1

4201915

Spring

(SUB FOR TH109212)

2шт.

2

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

3

4195421

Compression Spring

(SUB FOR TH109214)

2шт.

4

4186544

Compression Spring

(SUB FOR TH109215)

2шт.

4195421

Compression Spring

(SUB FOR TH109214)

2шт.

5

4177777

Spacer

(SUB FOR AT154411 ) (SUB FOR TH109216)

4шт.

6

4173208

Shim

(SUB FOR TH109217)

20шт.

7

4177896

Guide

(SUB FOR TH109218)

2шт.

8

4179257

Guide

(SUB FOR AT154412 ) (SUB FOR TH109219)

2шт.

9

7024552

Housing

(SUB FOR AT155700)

1шт.

11

9101513

Cap

(SUB FOR AT154538)

2шт.

11B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

11C

U46166

O-Ring

1шт.

12

9108066

Cap

(SUB FOR AT154540)

2шт.

12B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

12C

U46166

O-Ring

1шт.

15

4184929

Piston

(SUB FOR TH109228)

4шт.

16

4286874

Sealing Washer

(SUB FOR AT155701)

1шт.

17

CH11571

Packing

1шт.

18

4184954

Plate

(SUB FOR TH109229)

1шт.

19

19M8168

Screw

M12 X 25

1шт.

24

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

26A

4182067

Jointer

(SUB FOR TH109232)

1шт.

26B

Universal Joint

(SUB TH109232)( AT2021 51 NO LONGER AVAILABLE)

1шт.

30

Bushing

(NO LONGER REQUIRED)

1шт.
