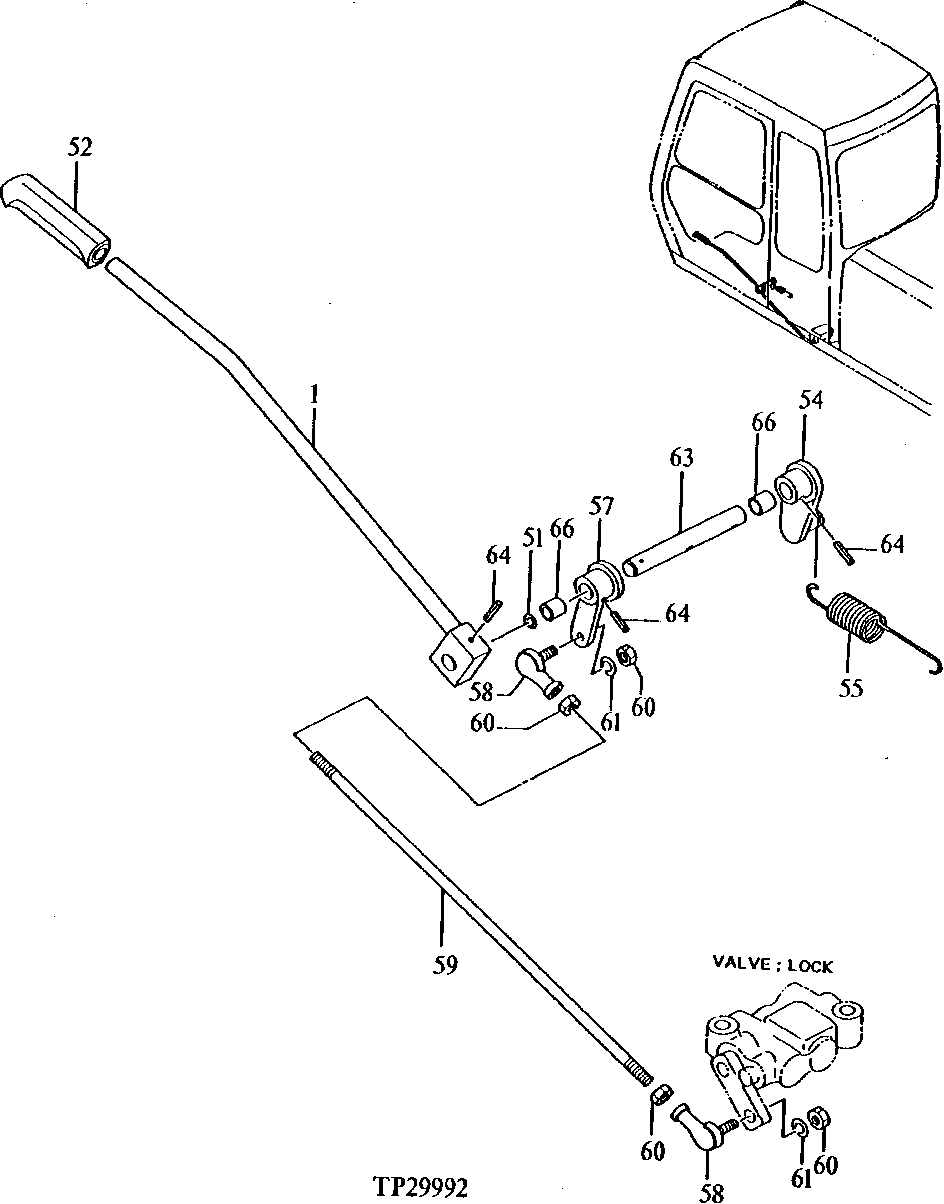

Запчасти John Deere 90ELC 217 - Control Lever ( - 015384) 3315 Control Linkage

1

8050900

Lever

(SUB FOR AT154503)

1шт.

51

24M7053

Washer

17 X 30 X 3 mm

1шт.

52

3051611

Grip

(SUB FOR AT154122)

1шт.

54

9738060

Link

(SUB FOR AT154551)

1шт.

55

4189184

Extension Spring

(SUB FOR TH108392)

1шт.

57

9738059

Link

(SUB FOR AT154550)

1шт.

58

T110021

Ball Joint Socket

2шт.

59

4259591

Rod

(SUB FOR AT154262)

1шт.

60

14M7273

Nut

M8

4шт.

61

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

63

4259592

Pin

(SUB FOR AT154263)

1шт.

64

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

3шт.

66

4259767

Bushing

(SUB FOR AT154271)

2шт.
