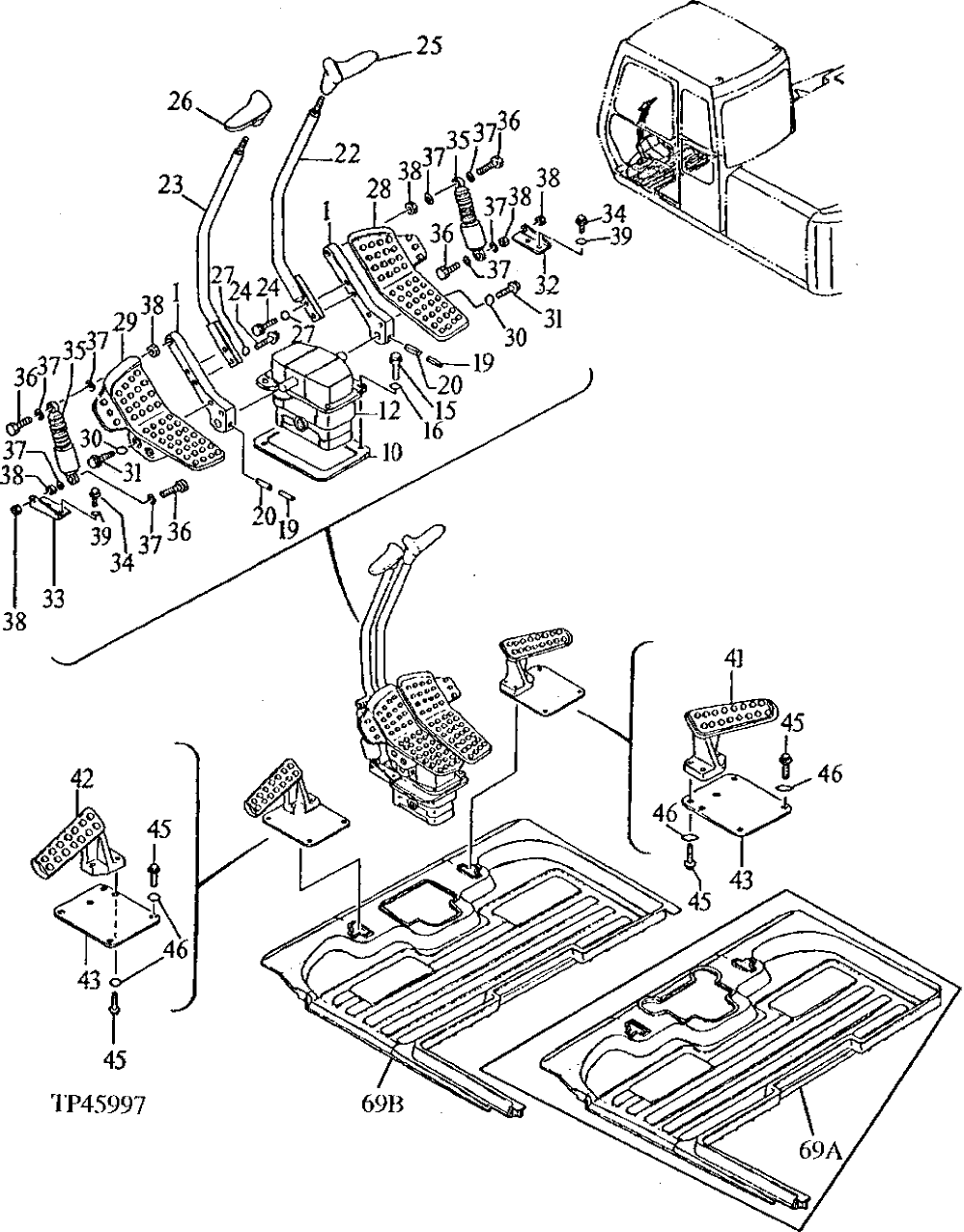

Запчасти John Deere 90ELC 215 - CONTROL PEDALS ( - 014999) 3315 Control Linkage

1

3052542

Bracket

SUB FOR AT154126

2шт.

10

4191969

Plate

SUB FOR TH108382

1шт.

12

9149235

Hyd Actuated Control Valve

SUB FOR AT154526 AND AT214393 Propel Pilot

1шт.

15

19M7358

Cap Screw

M10 X 40

2шт.

16

12M7066

Lock Washer

10 mm

2шт.

19

34M7062

Spring Pin

5 X 32 mm

2шт.

20

34M7124

Spring Pin

8 X 30 mm SUB FOR 34M7065

2шт.

22

8075450

Lever

SUB FOR AT154488, AT15 9142 AND 8062667 Propel

1шт.

2043585

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

23

8075449

Lever

SUB FOR AT154489 OR 8062623

1шт.

2043584

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

24

19M7550

Cap Screw

M10 X 35

4шт.

25

2030249

Grip

SUB FOR AT154077

1шт.

26

2030254

Grip

SUB FOR AT154078

1шт.

27

12M7066

Lock Washer

10 mm

4шт.

28

1024384

Pedal

SUB FOR AT154054 Propel Use If Available

1шт.

1024384

Pedal

SUB FOR AT154054 AND AT202292 Propel

1шт.

29

1024224

Pedal

SUB FOR AT154053 Propel Use If Available

1шт.

1024224

Pedal

SUB FOR AT154053 AND AT202291 Propel

1шт.

30

12M7066

Lock Washer

10 mm

4шт.

31

19M7358

Cap Screw

M10 X 40

4шт.

32

4259594

Bracket

SUB FOR AT154264

1шт.

33

4259595

Bracket

SUB FOR AT154265

1шт.

34

19M7402

Cap Screw

M10 X 25

4шт.

35

4304665

Torsional Damper

SUB FOR AT157554

2шт.

36

19M7922

Cap Screw

M8 X 40

4шт.

37

4259596

Washer

SUB FOR AT154266

8шт.

38

14M7273

Nut

M8

6шт.

39

12M7066

Lock Washer

10 mm

4шт.

41

Footrest

Not Available For Service

1шт.

42

Footrest

Not Available For Service

1шт.

43

Cover

Not Available For Service

2шт.

45

19M7550

Cap Screw

M10 X 35

12шт.

46

12M7066

Lock Washer

10 mm

12шт.

69A

4324918

Mat

SUB FOR AT153824

1шт.

69B

Mat

0001633 AND AT167568 NLA

1шт.
