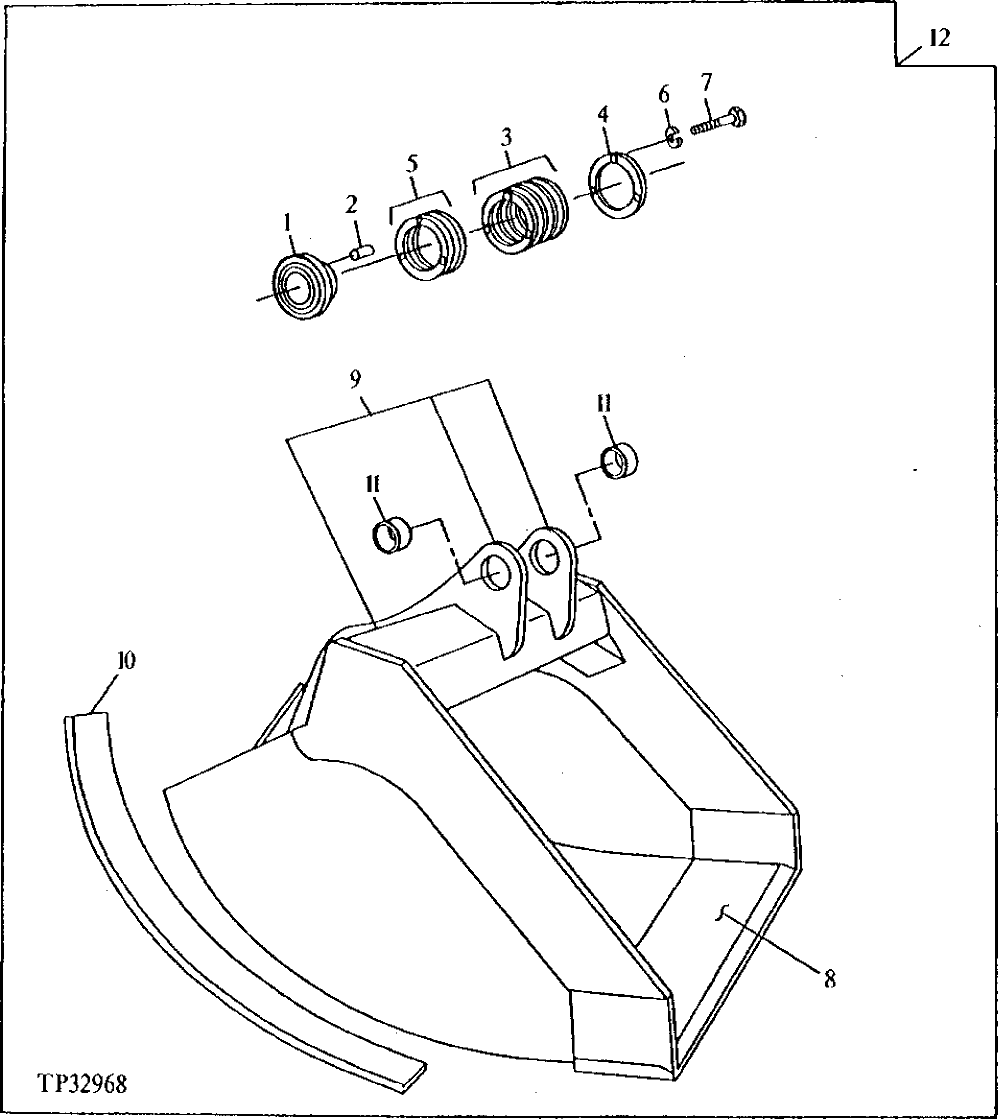

Запчасти John Deere 90ELC 204 - DITCHING BUCKET (LONG FRONT) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

AT131084

Bushing

(1" HEAD THICKNESS)

1шт.

2

R48685

Dowel Pin

1шт.

3

TH104512

Washer

9шт.

4

TH104514

Spacer

1шт.

5

TH104513

Shim

1шт.

6

12H294

Lock Washer

5/8"

3шт.

7

19H2706

Cap Screw

5/8" X 2"

3шт.

8

Cutting Edge

(CUT TO LENGTH FROM AT131088 BULK MATERIAL)

1шт.

9

C607480

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10

300204

Bar

(F) (WEAR)

5шт.

11

TH108649

Bushing

2шт.

12

Excavator Bucket

( AT160757 NLA) 60" WIDE .90 CU YD 990 LB. DITCHING (USE WITH 1500 LB. PER CUBIC YARD)

1шт.

Excavator Bucket

( AT160685 NLA) 60" WIDE .75 CU YD 835 LB. DITCHING WHOLEGOODS

1шт.
