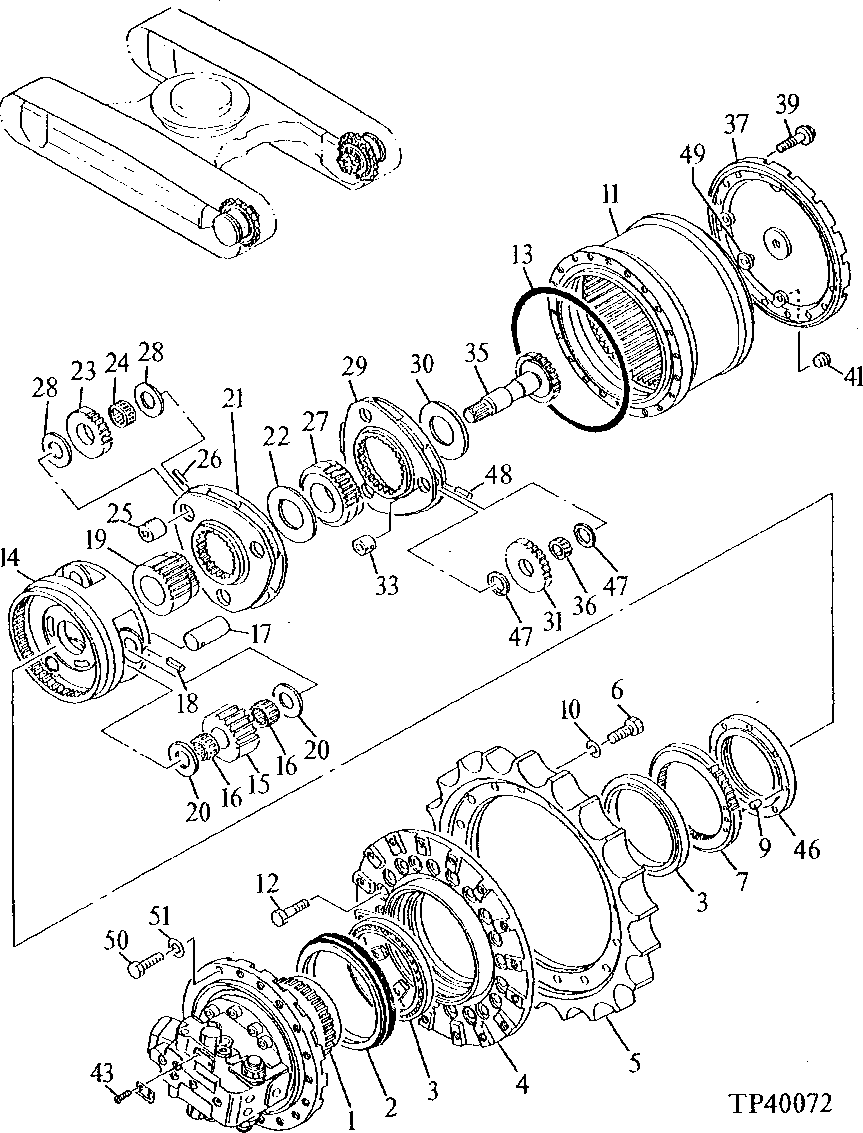

Запчасти John Deere 90ELC 10 - PROPEL DRIVE 0260 HYDRAULIC SYSTEM

1

9116838EX

Hydraulic Motor Reman

SUB FOR AT217336, REMAN FOR 9116838 AND AT159502

1шт.

9131678

Hydraulic Motor

SUB FOR AT202483 OR AT217337

1шт.

9131678EX

Hydraulic Motor Reman

SUB FOR AT202483 OR AT2 17337, REMAN FOR 9131678

1шт.

2

FYB00000549

Seal

SUB FOR AT154697 OR 4634693

1шт.

3

AT130941

Tapered Roller Bearing

2шт.

4

1013983

Drum

SUB FOR AT154627

1шт.

5

AT311805

Drive Sprocket

SUB FOR TH109726 OR 1010203

1шт.

6

19M8002

Cap Screw

M20 X 55

16шт.

7

3047448

Hub

SUB FOR AT154662

1шт.

9

4246783

Pin

SUB FOR AT154708

1шт.

10

12M7070

Lock Washer

20 mm

16шт.

11

1014493

Ring Gear

SUB FOR AT154634

1шт.

12

19M7369

Cap Screw

M16 X 60

20шт.

13

4246792

O-Ring

342.100 X 3.100 mm SUB FOR AT154711

1шт.

14

1014491

Planet Pinion Carrier

SUB FOR AT154632

1шт.

15

AT318028

Gear

SUB FOR 3052346 OR AT154686

3шт.

16

4172394

Needle Bearing

SUB FOR AT154701

6шт.

17

4252442

Pin

SUB FOR AT154721

3шт.

18

34M7133

Spring Pin

8 X 70 mm

3шт.

19

3049870

Sun Gear

SUB FOR AT154668

1шт.

20

4271698

Shim

SUB FOR AT154777

6шт.

21

1014492

Planet Pinion Carrier

SUB FOR AT154633

1шт.

22

4246785

Washer

SUB FOR AT154710

1шт.

23

3052345

Gear

SUB FOR AT154685

3шт.

24

4354271

Needle Bearing

SUB FOR AT130375 OR AT214453

3шт.

25

4252441

Spacer

SUB FOR AT154720

3шт.

26

34M7119

Spring Pin

5 X 65 mm

3шт.

27

3049872

Sun Gear

SUB FOR AT154669

1шт.

28

4269295

Shim

SUB FOR AT154773

6шт.

29

1014490

Planet Pinion Carrier

SUB FOR AT154631

1шт.

30

4401293

Spacer

SUB FOR TH111249

1шт.

31

3049873

Gear

SUB FOR AT154670

3шт.

33

4210853

Spacer

SUB FOR AT154702

3шт.

35

2028764

Shaft

SUB FOR AT154653

1шт.

36

AT127994

Needle Bearing

3шт.

37

2028763

Cover

SUB FOR AT154652

1шт.

39

19M8011

Cap Screw

M12 X 30

16шт.

41

94-2013

Fitting Plug

SUB FOR TH100648

3шт.

43

37H99

Screw

0.100" X 1/4"

2шт.

46

3057125

Ring

SUB FOR AT154694

1шт.

47

4192910

Plate

SUB FOR TH108847

6шт.

48

4173093

Spring Pin

SUB FOR TH108841

3шт.

49

4478346

Pin

SUB FOR 4285323 OR AT154798

1шт.

50

TH111692

Cap Screw

SUB FOR AT154757 OR 4258061

28шт.

51

N231749

Washer

20.620 X 38.100 X 6.350 mm

28шт.
