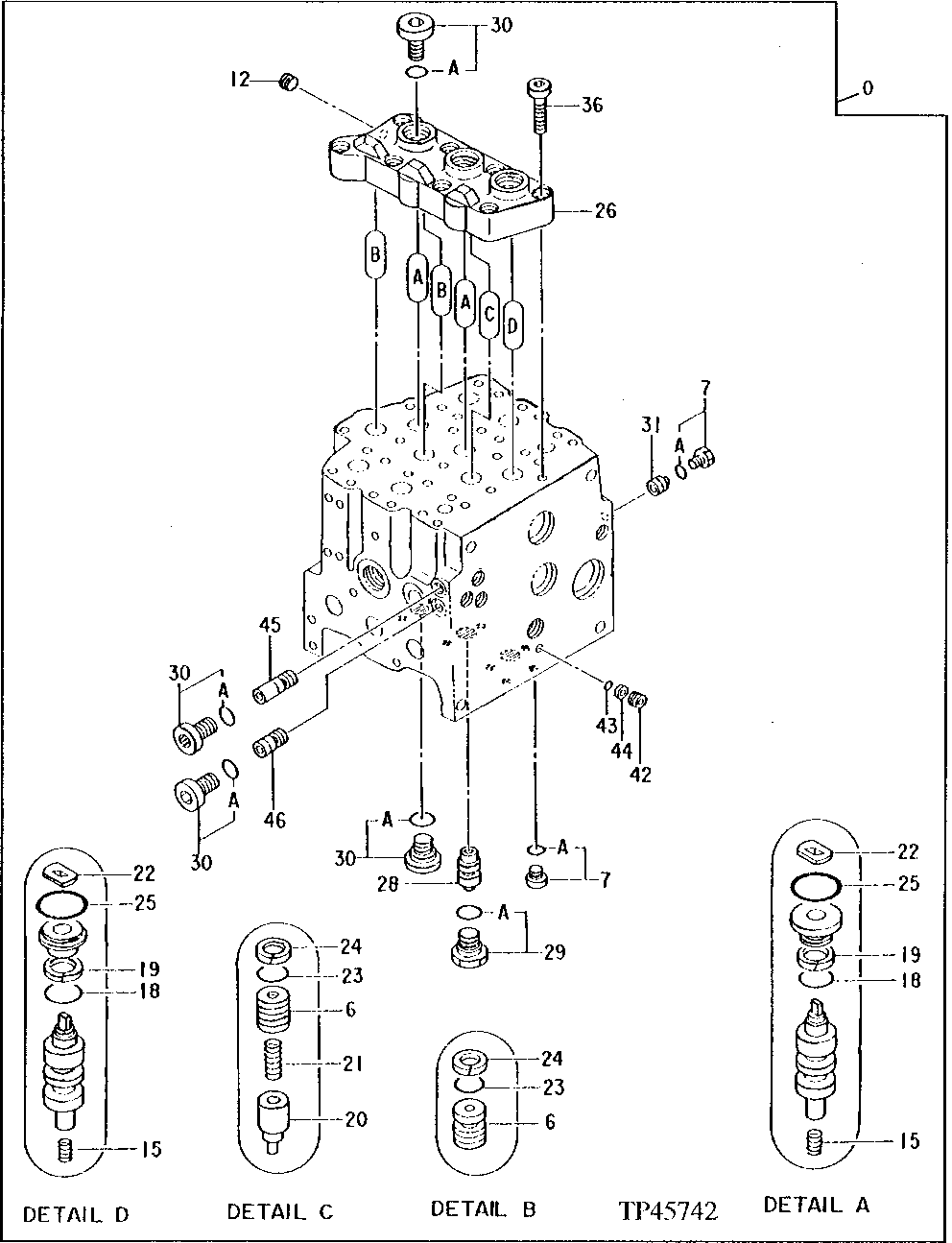

Запчасти John Deere 90ELC 190 - Control Valve (015000 - ) 2160 HYDRAULIC SYSTEM

0

4342876

Hyd Actuated Control Valve

(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREV IOUS AND FOLLOWING PAGES) (SUB FOR A T183694 AND 4342876EX REMANUFACTURED )

1шт.

6

0617401

Fitting

(SUB FOR AT204813)

3шт.

7

0413504

Plug

(SUB FOR AT154559)

9шт.

7A

4506408

O-Ring

7.800 X 1.900 mm (SUB FOR TH101490)

1шт.

12

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

15

0488901

Spring

(SUB FOR AT204814 ) (SUB FOR AT166061)

3шт.

18

953610

O-Ring

(SUB FOR AT154871)

3шт.

19

0413705

Back-Up Ring

(SUB FOR AT154597)

3шт.

20

0488902

Poppet

(SUB FOR AT204815 ) (SUB FOR AT166063)

1шт.

21

0413904

Spring

(SUB FOR AT154614)

1шт.

22

0488903

Spacer

(SUB FOR AT204805 ) (SUB FOR AT166071)

3шт.

23

CH11562

O-Ring

3шт.

24

0413905

Back-Up Ring

(SUB FOR AT154615)

3шт.

25

4018880

O-Ring

(SUB FOR AT154696)

3шт.

26

0617404

Flange

(SUB FOR AT204816)

1шт.

28

0488705

Flow Control Hyd. Valve

(SUB FOR AT204806 OR AT166067)

2шт.

29

0413711

Plug

(SUB FOR AT154603)

2шт.

29A

CH11570

O-Ring

1шт.

30

0413907

Guard

(SUB FOR AT154617)

4шт.

30A

M800650

Packing

1шт.

31

0413908

Plug

(SUB FOR AT154618)

1шт.

36

0413909

Bolt

(SUB FOR AT154619)

8шт.

42

0413910

Plug

(SUB FOR AT154620)

1шт.

43

4092111

O-Ring

(SUB FOR AT154150)

1шт.

44

4101947

Back-Up Ring

(SUB FOR 0413911)

1шт.

45

0413912

Filter

(SUB FOR AT154622)

1шт.

46

0413913

Filter

(SUB FOR AT154623)

1шт.
