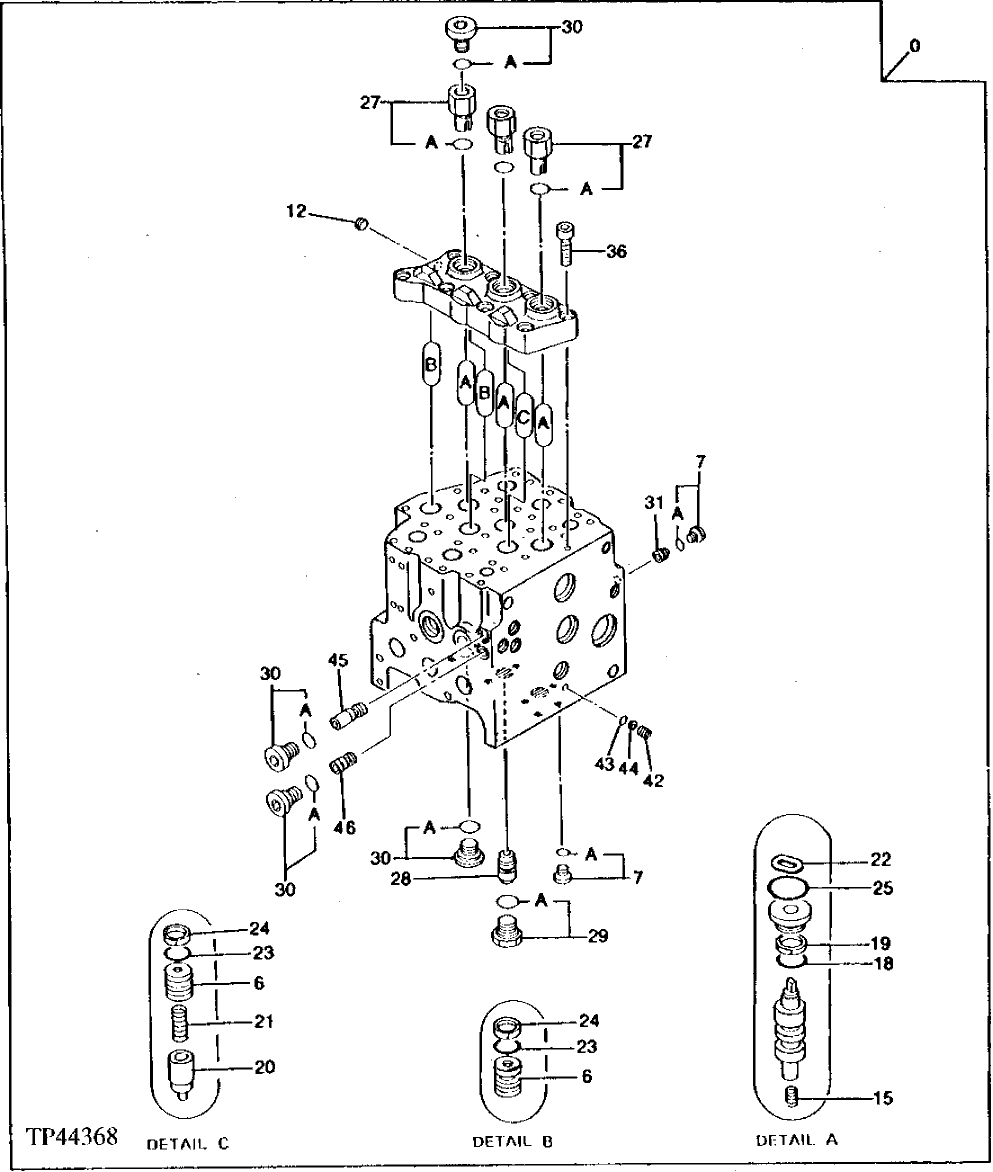

Запчасти John Deere 90ELC 189 - Control Valve ( - 014999) 2160 HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
0
4302754
Hyd Actuated Control Valve
(SUB FOR AT158396, AT1861 02 AND AT154751, 4312149)
1шт.
6
0413901
Plug
(SUB FOR AT154611)
3шт.
7
0413504
Plug
(SUB FOR AT154559)
9шт.
12
94-2010
Fitting Plug
(SUB FOR TH100689)
1шт.
15
0413902
Spring
(SUB FOR AT154612)
3шт.
0488901
Spring
(SUB FOR AT166061)
3шт.
0413902
Spring
(SUB FOR AT154612)
3шт.
0488901
Spring
(SUB FOR AT166061)
3шт.
18
953610
O-Ring
(SUB FOR AT154871)
3шт.
19
0413705
Back-Up Ring
(SUB FOR AT154597)
3шт.
20
0413903
Poppet
(SUB FOR AT154613)
1шт.
0488902
Poppet
(SUB FOR AT166063)
1шт.
0413903
Poppet
(SUB FOR AT154613)
1шт.
0488902
Poppet
(SUB FOR AT166063)
1шт.
21
0413904
Spring
(SUB FOR AT154614)
1шт.
22
Spacer
(NOT REQUIRED)
3шт.
0488903
Spacer
(SUB FOR AT166071)
3шт.
Spacer
(NOT REQUIRED)
3шт.
0488903
Spacer
(SUB FOR AT166071)
3шт.
23
CH11562
O-Ring
3шт.
24
0413905
Back-Up Ring
(SUB FOR AT154615)
3шт.
27
0413707
Plug
(SUB FOR AT154599)
3шт.
0488704
Plug
(SUB FOR AT166065)
3шт.
0413707
Plug
(SUB FOR AT154599)
3шт.
0488704
Plug
(SUB FOR AT166065)
3шт.
27A
CH11570
O-Ring
1шт.
28
0488705
Flow Control Hyd. Valve
(SUB FOR AT154602)
2шт.
0488705
Flow Control Hyd. Valve
(SUB FOR AT166067)
2шт.
0488705
Flow Control Hyd. Valve
(SUB FOR AT154602)
2шт.
0488705
Flow Control Hyd. Valve
(SUB FOR AT166067)
2шт.
29
0413711
Plug
(SUB FOR AT154603)
2шт.
29A
CH11570
O-Ring
1шт.
30
0413907
Guard
(SUB FOR AT154617)
4шт.
30A
M800650
Packing
1шт.
31
0413908
Plug
(SUB FOR AT154618)
1шт.
36
0413909
Bolt
(SUB FOR AT154619)
8шт.
42
0413910
Plug
(SUB FOR AT154620)
1шт.
43
4092111
O-Ring
(SUB FOR AT154150)
1шт.
44
4101947
Back-Up Ring
(SUB FOR 0413911)
1шт.
45
0413912
Filter
(SUB FOR AT154622)
1шт.
46
0413913
Filter
(SUB FOR AT154623)
1шт.
Выбрано товаров: 43
