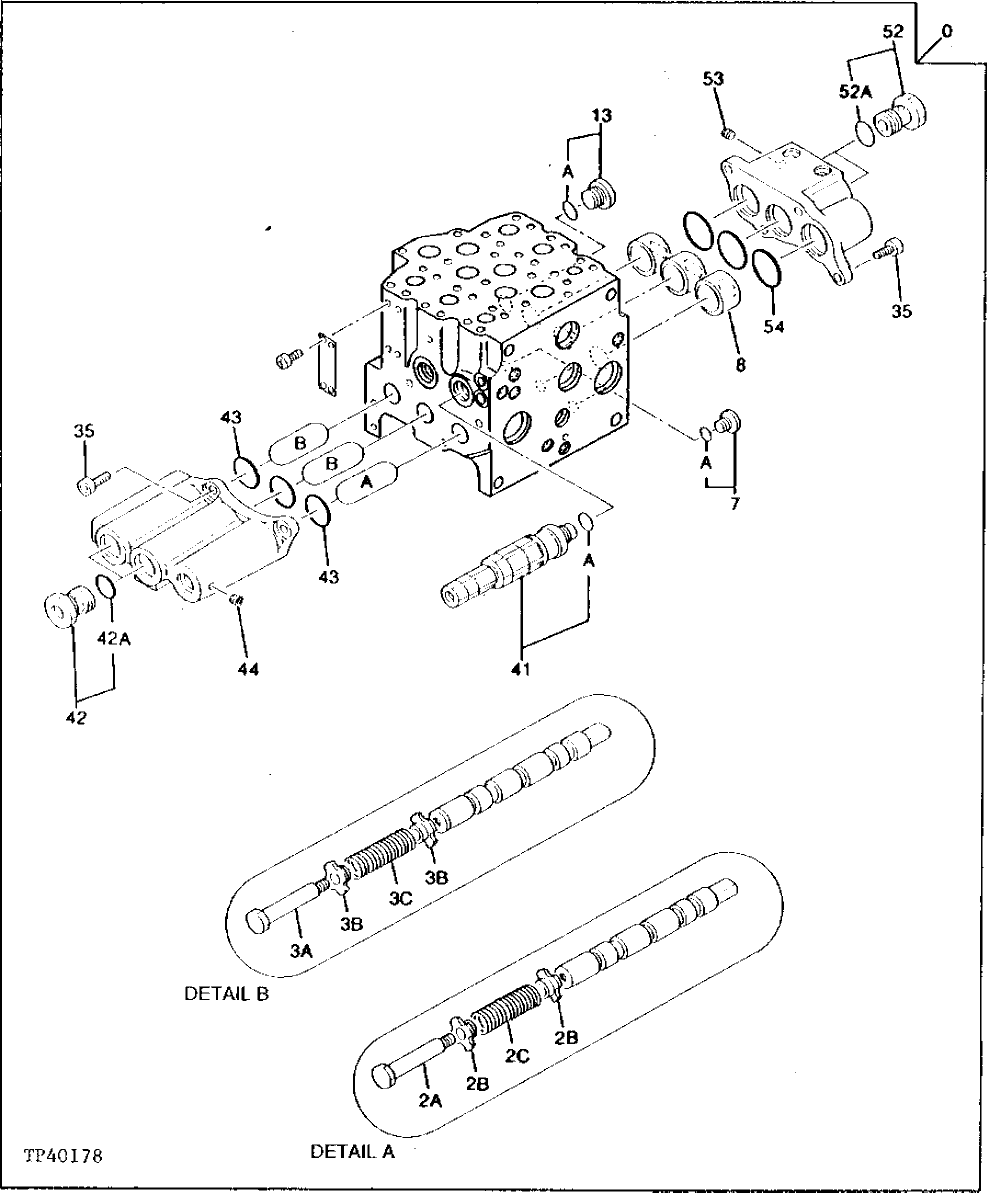

Запчасти John Deere 90ELC 187 - Control Valve ( - 014999) 2160 HYDRAULIC SYSTEM

0

4302754

Hyd Actuated Control Valve

(SUB FOR AT158396, AT1861 02 AND AT154751, 4312149)

1шт.

2A

0413801

End

(SUB FOR AT154605)

1шт.

2B

0306003

Plate

(SUB FOR TH109968)

2шт.

2C

0413802

Spring

(SUB FOR AT154606)

1шт.

0488801

Spring

(SUB FOR AT166059)

1шт.

0413802

Spring

(SUB FOR AT154606)

1шт.

0488801

Spring

(SUB FOR AT166059)

1шт.

3A

0413801

End

(SUB FOR AT154605)

1шт.

3B

0306003

Plate

(SUB FOR TH109968)

2шт.

3C

0413803

Spring

(SUB FOR AT154607)

1шт.

0488802

Spring

(SUB FOR AT166060)

1шт.

0413803

Spring

(SUB FOR AT154607)

1шт.

0488802

Spring

(SUB FOR AT166060)

1шт.

7

0413504

Plug

(SUB FOR AT154559)

3шт.

7A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

8

0413505

Spacer

(SUB FOR AT154560)

3шт.

13

0413518

Plug

(SUB FOR AT154573)

1шт.

13A

CH11570

O-Ring

1шт.

35

0413511

Bolt

(SUB FOR AT154566)

8шт.

41

4289604

Pressure Relief Valve

(SUB FOR AT154802)(SYSTEM RELIEF)

1шт.

41A

U12547

O-Ring

1шт.

42

0413805

Plug

(SUB FOR AT154609)

2шт.

42A

TH101926

O-Ring

1шт.

43

CH14701

O-Ring

3шт.

44

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

Fitting Plug

(NOT REQUIRED)

1шт.

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

Fitting Plug

(NOT REQUIRED)

1шт.

52

0413805

Plug

(SUB FOR AT154609)

2шт.

52A

TH101926

O-Ring

1шт.

53

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

Fitting Plug

(NOT REQUIRED)

1шт.

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

Fitting Plug

(NOT REQUIRED)

1шт.

54

CH14701

O-Ring

3шт.
