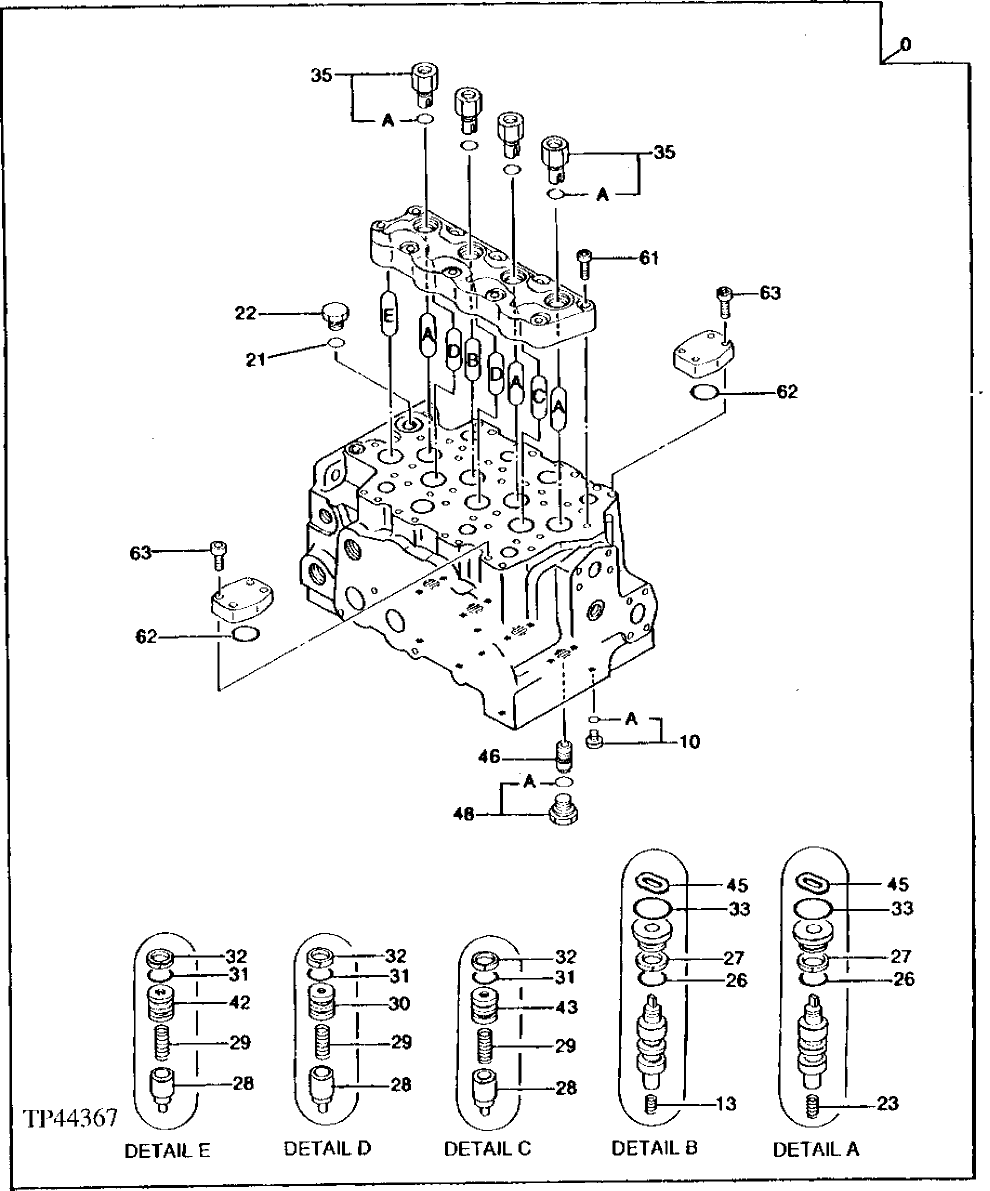

Запчасти John Deere 90ELC 185 - Control Valve ( - 014999) 2160 HYDRAULIC SYSTEM

0

4302754

Hyd Actuated Control Valve

( AT154751 NO LONGER AVAILABLE) (SUB FOR AT158396, AT154751 AND AT186102, 4312149)

1шт.

10

0413504

Plug

(SUB FOR AT154559)

14шт.

10A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

13

0414301

Spring

(SUB FOR AT154626)

1шт.

21

4506418

O-Ring

(SUB FOR U46489)

1шт.

22

0225216

Fitting Plug

(SUB FOR TH105757)

1шт.

23

0413701

Spring

(SUB FOR AT154593)

3шт.

26

CH17653

Packing

4шт.

27

Back-Up Ring

4шт.

28

0413702

Poppet

(SUB FOR AT154594)

4шт.

0488701

Poppet

(SUB FOR AT166066)

4шт.

0413702

Poppet

(SUB FOR AT154594)

4шт.

0488701

Poppet

(SUB FOR AT166066)

4шт.

29

0413703

Spring

(SUB FOR AT154595)

4шт.

30

0413708

Plug

(SUB FOR AT154600)

2шт.

0488702

Guard

(SUB FOR AT166068)

2шт.

0413708

Plug

(SUB FOR AT154600)

2шт.

0488702

Guard

(SUB FOR AT166068)

2шт.

31

953610

O-Ring

(SUB FOR AT154871)

4шт.

32

0413705

Back-Up Ring

(SUB FOR AT154597)

4шт.

33

953758

O-Ring

(SUB FOR AT154872 OR 4514010)

4шт.

35

0413707

Plug

(SUB FOR AT154599)

4шт.

0488704

Plug

(SUB FOR AT166065)

4шт.

0413707

Plug

(SUB FOR AT154599)

4шт.

0488704

Plug

(SUB FOR AT166065)

4шт.

35A

CH11570

O-Ring

1шт.

42

0413708

Plug

(SUB FOR AT154600)

1шт.

43

0413709

Plug

(SUB FOR AT154601)

1шт.

45

Spacer

(NOT REQUIRED)

4шт.

0488903

Spacer

(SUB FOR AT166071)

4шт.

Spacer

(NOT REQUIRED)

4шт.

0488903

Spacer

(SUB FOR AT166071)

4шт.

46

0488705

Flow Control Hyd. Valve

(SUB FOR AT154602)

5шт.

0488705

Flow Control Hyd. Valve

(SUB FOR AT166067)

5шт.

0488705

Flow Control Hyd. Valve

(SUB FOR AT154602)

5шт.

0488705

Flow Control Hyd. Valve

(SUB FOR AT166067)

5шт.

48

0413711

Plug

(SUB FOR AT154603)

5шт.

48A

CH11570

O-Ring

1шт.

61

19M8904

Screw

M10 X 45 (SUB FOR M341045)

10шт.

62

A4730R

O-Ring

2шт.

63

0413619

Bolt

(SUB FOR AT154591)

8шт.
