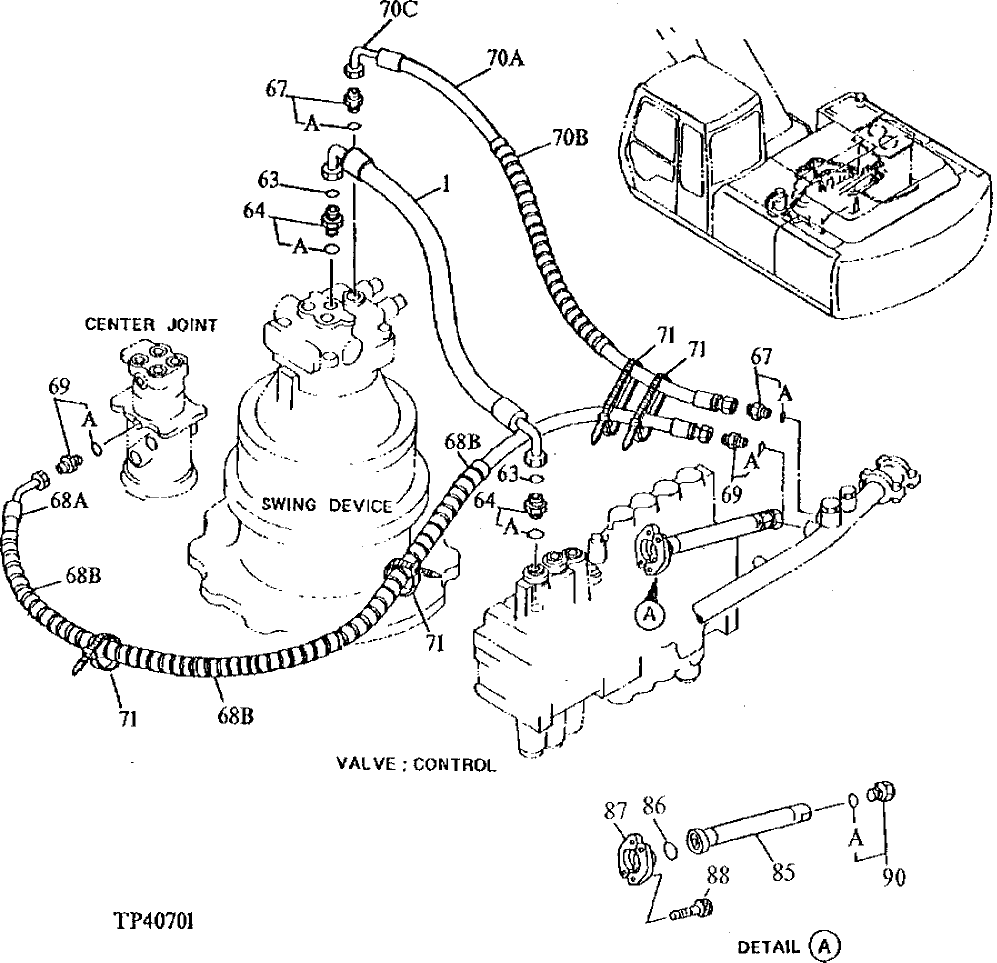

Запчасти John Deere 90ELC 177 - OIL COOLER PIPINGS 2160 HYDRAULIC SYSTEM

1

AT155316

Hydraulic Hose

1шт.

63

T77858

O-Ring

2шт.

64

A853166

Adapter Fitting

SUB FOR AT107392 OR 4189619

2шт.

64A

AT318035

O-Ring

SUB FOR 4506424, TH100055

1шт.

67

4200466

Adapter Fitting

SUB FOR TH108320

2шт.

67A

CH11570

O-Ring

1шт.

68A

AT155263

Hydraulic Hose

1шт.

68B

Hose Guard

MAKE FROM XHG-075 BULK MATERIAL , CUT TO LENGTH SUB FOR AT138222

3шт.

69

4190243

Adapter Fitting

SUB FOR TH106151

2шт.

4221290

Adapter Fitting

SUB FOR AT131902

2шт.

69A

CH11570

O-Ring

1шт.

70A

4283567

Hydraulic Hose

SUB FOR AT66084

1шт.

70B

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

70C

AE24616

Elbow Fitting

1шт.

71

H77698

Tie Band

4шт.

85

9739709

Line

SUB FOR AT155737

1шт.

86

T59014

O-Ring

1шт.

87

T107446

Flange Fitting

2шт.

88

19M8447

Screw

4шт.

90

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH103949, SUB FOR TH102536

1шт.

90A

M800650

Packing

1шт.
