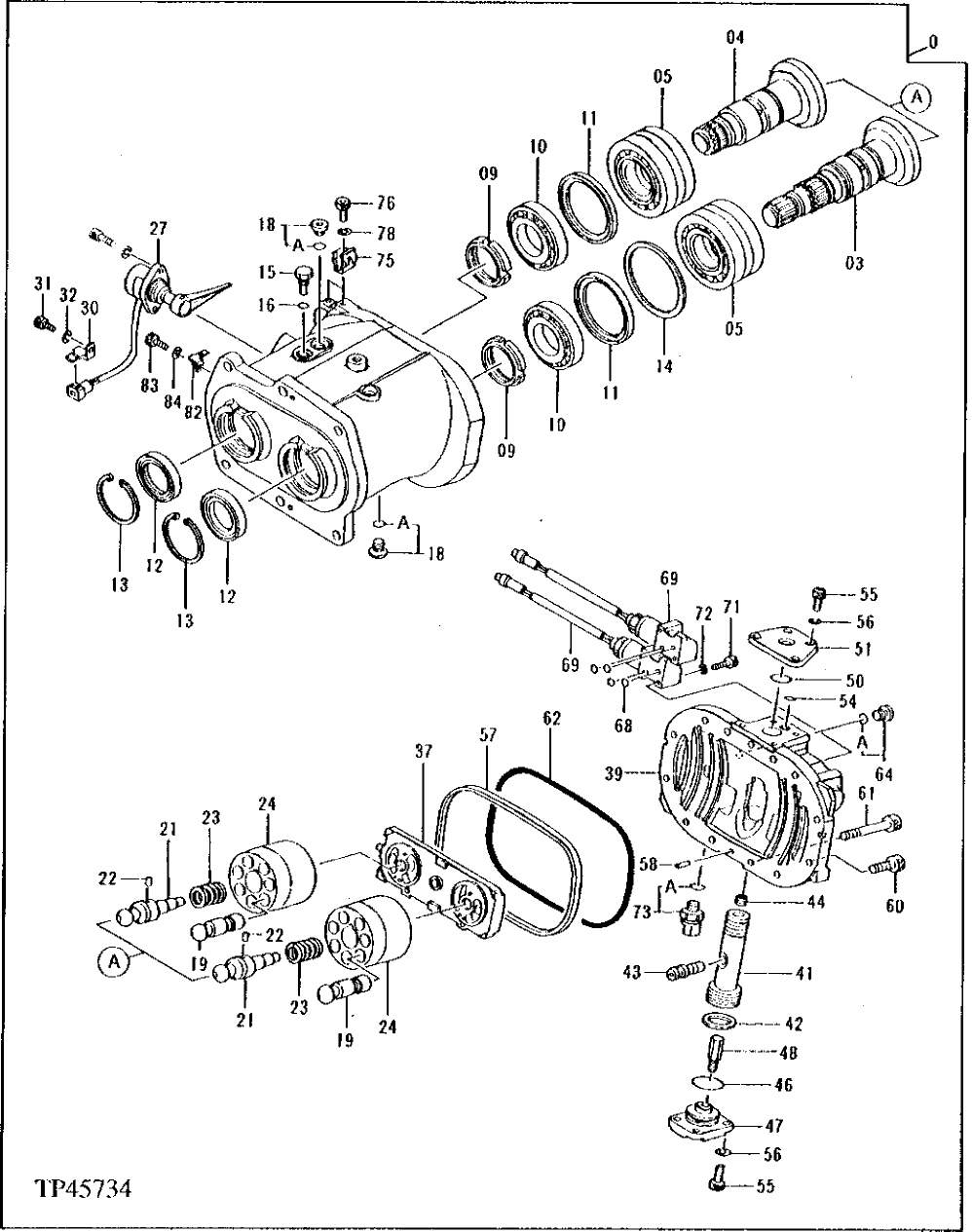

Запчасти John Deere 90ELC 170 - Main Hydraulic Pump (015000 - ) 2160 HYDRAULIC SYSTEM

0

AT204852

Pump

ORDER AT217335, NLA

1шт.

AT217335

Hydraulic Pump Reman

REMAN FOR AT204852, CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL C OMPONENTS LISTED ON PREVIOUS PAGE

1шт.

3

2034788

Disk

SUB FOR AT203652

1шт.

4

2034789

Disk

SUB FOR AT202407

1шт.

5

TH109868

Tapered Roller Bearing

2шт.

9

4178173

Nut

SUB FOR T107755

2шт.

10

CH16496

Tapered Roller Bearing

2шт.

11

4339171

Ring

SUB FOR AT202467

2шт.

12

T225266

Seal

SUB FOR TH112064, T1077 59, AT213847 OR 4333170

2шт.

13

4116290

Snap Ring

SUB FOR TH111929

2шт.

14

4330054

Thrust Washer

SUB FOR AT202466, SUB FOR AT170630

1шт.

15

4310992

Plug

SUB FOR AT202445

2шт.

16

M800650

Packing

2шт.

18

9134111

Fitting

SUB FOR AT203648

3шт.

18A

CH11570

O-Ring

1шт.

19

8043698

Piston

SUB FOR AT154477

14шт.

21

4233180

Shaft

SUB FOR AT154165

2шт.

22

4198956

Pin Fastener

SUB FOR T107766

2шт.

23

4248499

Compression Spring

SUB FOR AT154188

2шт.

24

2027277

Rotor

SUB FOR AT154064

2шт.

27

Sensor

PUMP ANGEL SENSOR, NOT AVAILABL E FOR SERVICE AS COMPLETE ASSEMB LY - SEE SEPARATE PAGE FOR DETAI L

1шт.

30

4252767

Bracket

SUB FOR AT154206

1шт.

31

0209423

Bolt

SUB FOR TH100738

1шт.

32

12M7133

Lock Washer

6 mm SUB FOR 12M7129

1шт.

37

1020223

Hyd Actuated Control Valve

SUB FOR AT202406

1шт.

39

Case

NLA, SUB FOR AT202403, USE IF AVAILABLE

1шт.

Case

NLA, SUB FOR AT202403, SUB FOR AT174902

1шт.

41

3055313

Piston

SUB FOR AT154134

1шт.

42

4272674

Piston Ring

SUB FOR AT154320

1шт.

43

4260211

Pin

SUB FOR AT154273

1шт.

44

4179838

Set Screw

SUB FOR TH109881

1шт.

46

4355082

O-Ring

SUB FOR AT202453, 4317635

1шт.

47

4260500

Stop

SUB FOR AT154281

1шт.

48

4260493

Stop

SUB FOR AT154280

1шт.

50

4355084

O-Ring

SUB FOR AT202455, 4317637

1шт.

51

4311778

Cover

SUB FOR AT202446

1шт.

54

4317636

O-Ring

SUB FOR AT202454

1шт.

55

19M8446

Screw

M8 X 20

8шт.

56

12M7056

Lock Washer

8 mm SUB FOR 12M7065

8шт.

57

3066033

Back-Up Ring

SUB FOR AT202423

1шт.

58

34M7061

Spring Pin

8 X 20 mm

2шт.

60

19M8341

Screw

M12 X 45

10шт.

61

19M8547

Screw

M12 X 90 SUB FOR AT127258 OR M341290

2шт.

62

4342840

O-Ring

SUB FOR AT213890

1шт.

64

9134110

Fitting

SUB FOR AT203649

1шт.

64A

M800650

Packing

1шт.

68

4317636

O-Ring

SUB FOR AT202454

4шт.

69

Solenoid Valve

9147260 NLA, SUB FOR AT154524

2шт.

71

19M8713

Screw

M6 X 45

4шт.

72

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

73

4436271

Sensor

SUB FOR AT202390, AT175981 OR 4355 012, PUMP DISCHARGE PRESSURE SENSOR

1шт.

73A

TH102560

O-Ring

15.800 X 2.400 mm

1шт.

75

Clamp

NOT AVAILABLE FOR SERVICE

2шт.

76

0209423

Bolt

SUB FOR TH100738

2шт.

78

12M7133

Lock Washer

6 mm SUB FOR 12M7129

2шт.

82

4252767

Bracket

SUB FOR AT154206

1шт.

83

0209423

Bolt

SUB FOR TH100738

1шт.

84

12M7133

Lock Washer

6 mm SUB FOR 12M7129

1шт.
