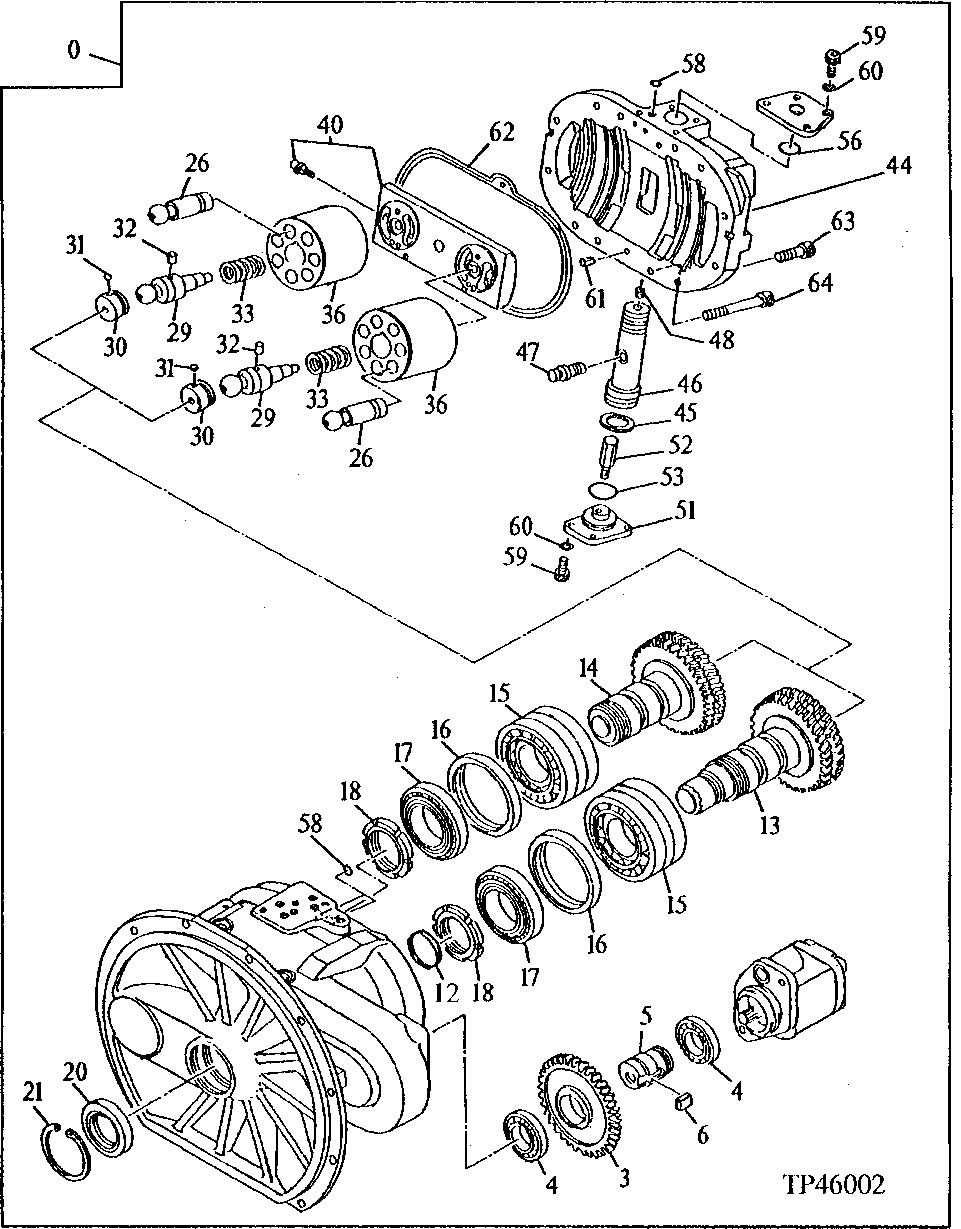

Запчасти John Deere 90ELC 168 - Main Hydraulic Pump ( - 014999) 2160 HYDRAULIC SYSTEM

0

AT154862

Pump

(USE IF AVAILABLE) (IF AT154862 NOT AVAILABLE, SUB AT217361) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.

AT217361

Hydraulic Pump Reman

(REMAN FOR AT154862) (CONTAINS AL L ITEMS ON THIS PAGE - ADDITIONAL C OMPONENTS LISTED ON PREVIOUS PAGE)

1шт.

3

3051201

Gear

(SUB FOR AT154114)

1шт.

4

JD8514

Ball Bearing

2шт.

5

3046466

Shaft

(SUB FOR AT154092)

1шт.

6

4118495

Key

(SUB FOR TH101802)

1шт.

12

4330054

Thrust Washer

(SUB FOR AT202466 ) (SUB FOR AT170630)

1шт.

13

AT154643

Disk

1шт.

14

1015178

Disk

(SUB FOR AT154644)

1шт.

15

TH109868

Tapered Roller Bearing

2шт.

16

4339171

Ring

(SUB FOR AT154163 OR AT202467)

2шт.

17

CH16496

Tapered Roller Bearing

2шт.

18

4178173

Nut

(SUB FOR T107755)

2шт.

20

4260561

Seal

(SUB FOR AT154282)

1шт.

21

4116290

Snap Ring

(SUB FOR TH111929)

1шт.

26

8043698

Piston

(SUB FOR AT154477)

14шт.

29

4233180

Shaft

(SUB FOR AT154165)

2шт.

30

4233181

Holder

(SUB FOR AT154166)

2шт.

31

L38718

Ball

6 mm

2шт.

32

4198956

Pin Fastener

(SUB FOR T107766)

2шт.

33

4248499

Compression Spring

(SUB FOR AT154188)

2шт.

36

2027277

Rotor

(SUB FOR AT154064)

2шт.

40

1020223

Hyd Actuated Control Valve

(SUB FOR AT158339, AT165064 OR AT202406)

1шт.

44

1016127

Cylinder Head

(SUB FOR AT154647)

1шт.

45

4272674

Piston Ring

(SUB FOR AT154320)

1шт.

46

3055313

Piston

(SUB FOR AT154134)

1шт.

47

4260211

Pin

(SUB FOR AT154273)

1шт.

48

4179838

Set Screw

(SUB FOR TH109881)

1шт.

51

4260500

Stop

(SUB FOR AT154281)

1шт.

52

4260493

Stop

(SUB FOR AT154280)

1шт.

53

992444

O-Ring

39.700 X 3.500 mm (SUB FOR TH108863, 4509931)

1шт.

56

4260309

O-Ring

26.700 X 3.500 mm (SUB FOR AT154274)

1шт.

58

4317636

O-Ring

(SUB FOR TH106280 ) (SUB FOR AT202454)

3шт.

59

19M8446

Screw

M8 X 20

8шт.

60

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

8шт.

61

34M7061

Spring Pin

8 X 20 mm

2шт.

62

8057232

Packing

(SUB FOR AT154834 ) (SUB FOR AT165096)

1шт.

63

19M8341

Screw

M12 X 45

10шт.

64

19M8547

Screw

M12 X 90 (SUB FOR AT127258 OR M341290)

2шт.
