Запчасти John Deere 90ELC 8 - TRACK CHAINS, PRESS IN MASTER 0130 TRACK SYSTEM

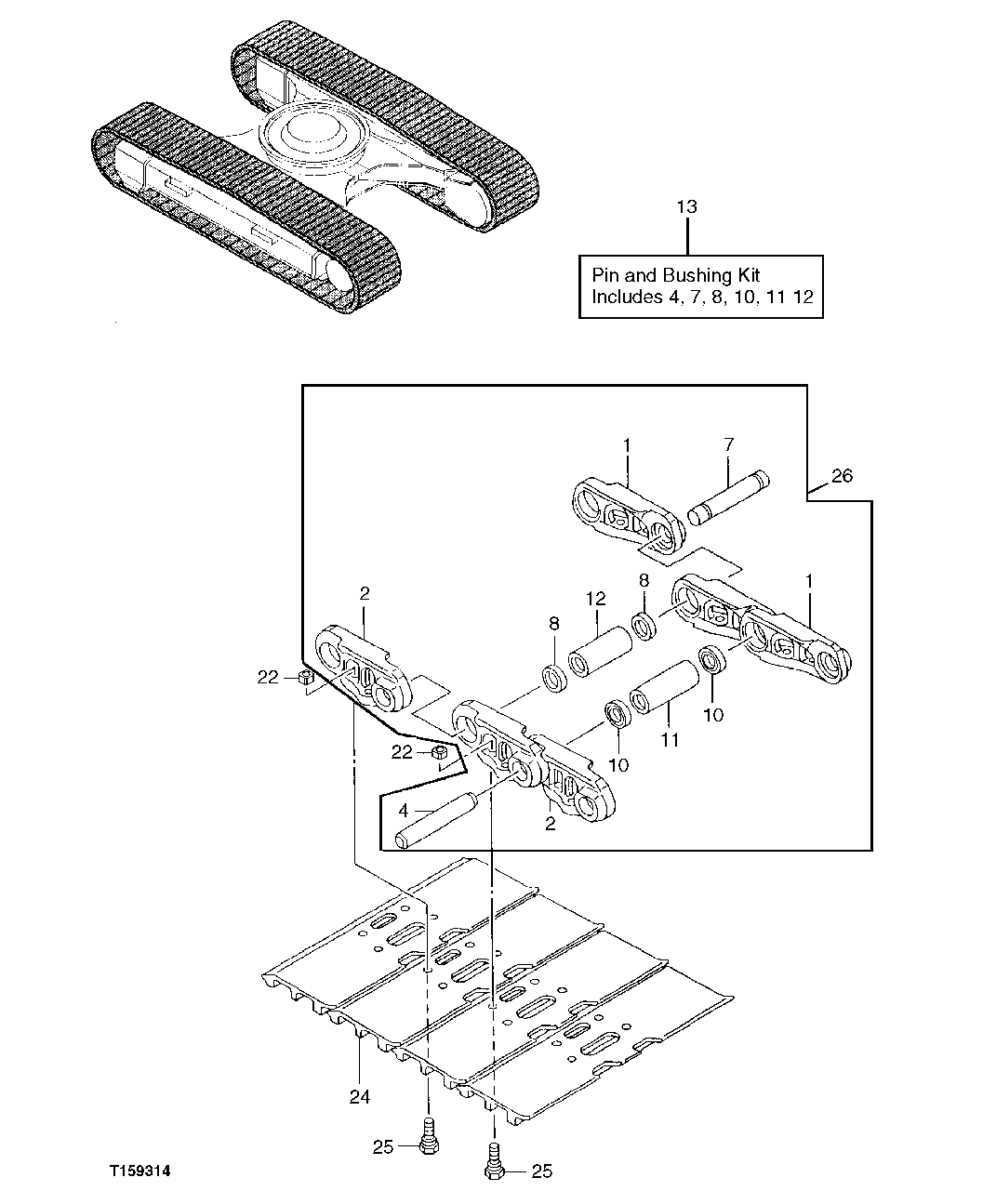

Схема запчастей John Deere 90ELC - 8 - TRACK CHAINS, PRESS IN MASTER 0130 TRACK SYSTEM

Артикул

Название

Примечание

Количество

1

AT219480

Strutted LINK-RH

NLA, RH, SUB 0005251R

51шт.

0005251R

Track Link

RH

1шт.

2

AT219481

Strutted LINK-LH

NLA, LH, SUB 0005252R

51шт.

0005252R

Track Link

LH

1шт.

4

AT180028

Pin Fastener

(A)

50шт.

7

AT180030

Pin Fastener

(A) ALSO ORDER (2) AT2194 71 AND AT219468 Master Pin

1шт.

8

Spacer

FFSB13386 NLA, ORDER AT219471 Master

2шт.

AT219471

Spacer

(A) ALSO ORDER AT1800 30 AND AT219468 Master

2шт.

10

AT180029

Seal

Dual Spring Washer

200шт.

AT186161

Seal

(A) M Seal

100шт.

11

Bushing

AT180032 NLA, ORDER AT186162

50шт.

AT186162

Bushing

(A) ALSO ORDER (2) AT 186161 Use With M Seal

50шт.

12

Master Track Bushing

Master FFSB113387 NLA, ORDER AT219468

1шт.

AT219468

Master Track Bushing

(A) ALSO ORDER (2) AT21 9471 AND AT180030 Master

1шт.

13

AT187185

Pin & Bushing Kit

Includes Parts Marked A

1шт.

22

T139615

Nut

M20 Each Side Of Unit

204шт.

24

AT219482

Open Center 3 Bar Shoe

600 MM Each Side Of Unit

51шт.

AT219483

Open Center 3 Bar Shoe

700 MM Each Side Of Unit

51шт.

AT219484

Open Center 3 Bar Shoe

800 MM Each Side Of Unit

51шт.

T142593

Single Bar Shoe

650 MM Heavy Duty

51шт.

T186385

Open Center 2 Bar Shoe

700 MM Heavy Duty

51шт.

25

T139614

Bolt

M20 X 55 Each Side Of Unit

204шт.

26

9250497R

Track Chain W/O Shoes

SUB FOR AT280815 AND AT311624 SNAP RING STYLE, QUANTITY OF 1 EACH SIDE OF UNIT

2шт.
