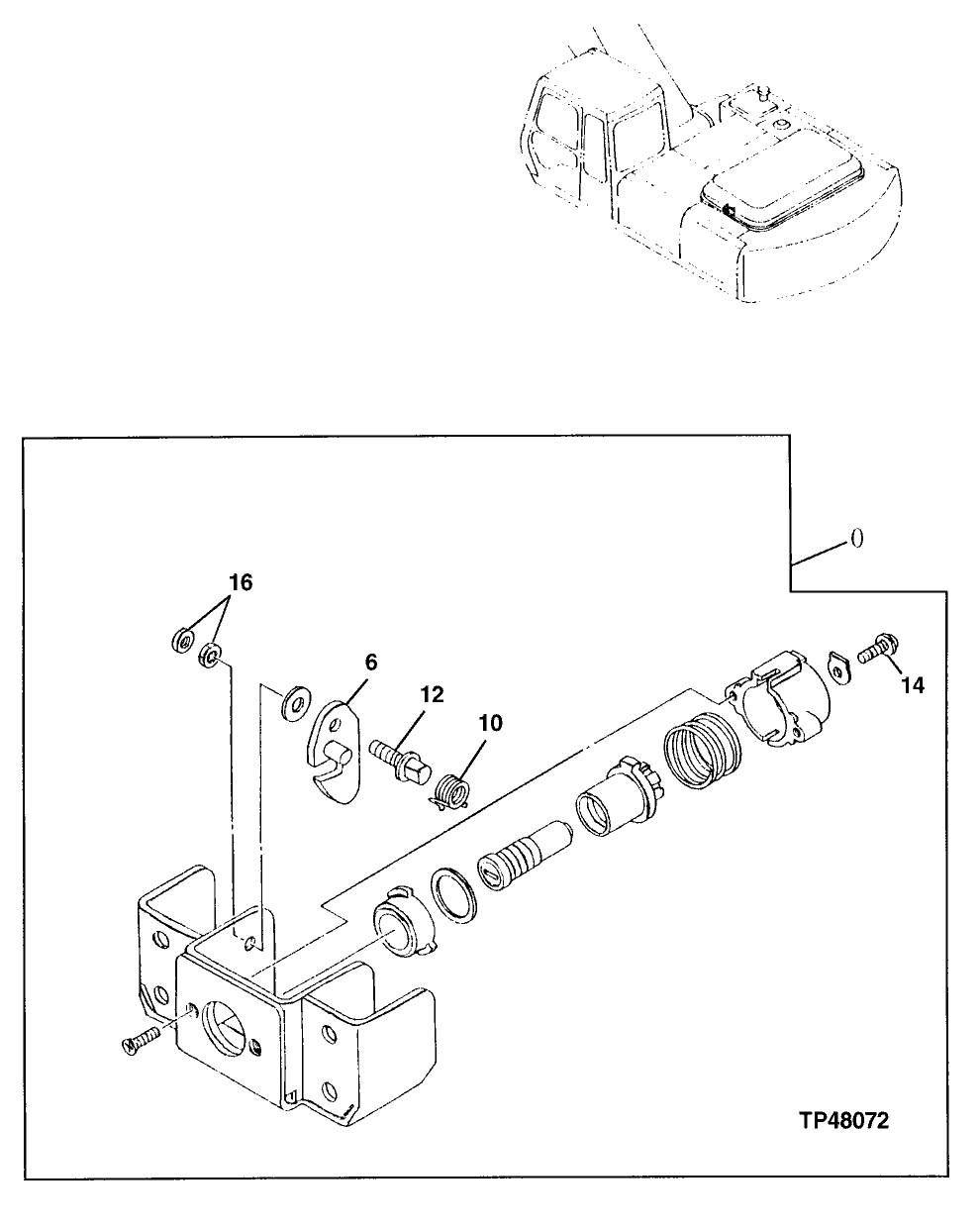

Запчасти John Deere 90ELC 161 - DOOR LOCK 1910 Hood Or Engine Enclosure

0

2038733

Lock

(SUB FOR 2031978, TH110126, AT155227)

1шт.

0A

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

6

4290549

Hook

(SUB FOR AT155377)

1шт.

10

4290553

Spring

(SUB FOR AT155381)

1шт.

12

4290555

Shaft

(SUB FOR AT155383)

1шт.

14

21M7409

Screw

M4 X 10

1шт.

16

14M7194

Nut

M6

2шт.
