Запчасти John Deere 90ELC 157 - Covers 1910 Hood Or Engine Enclosure

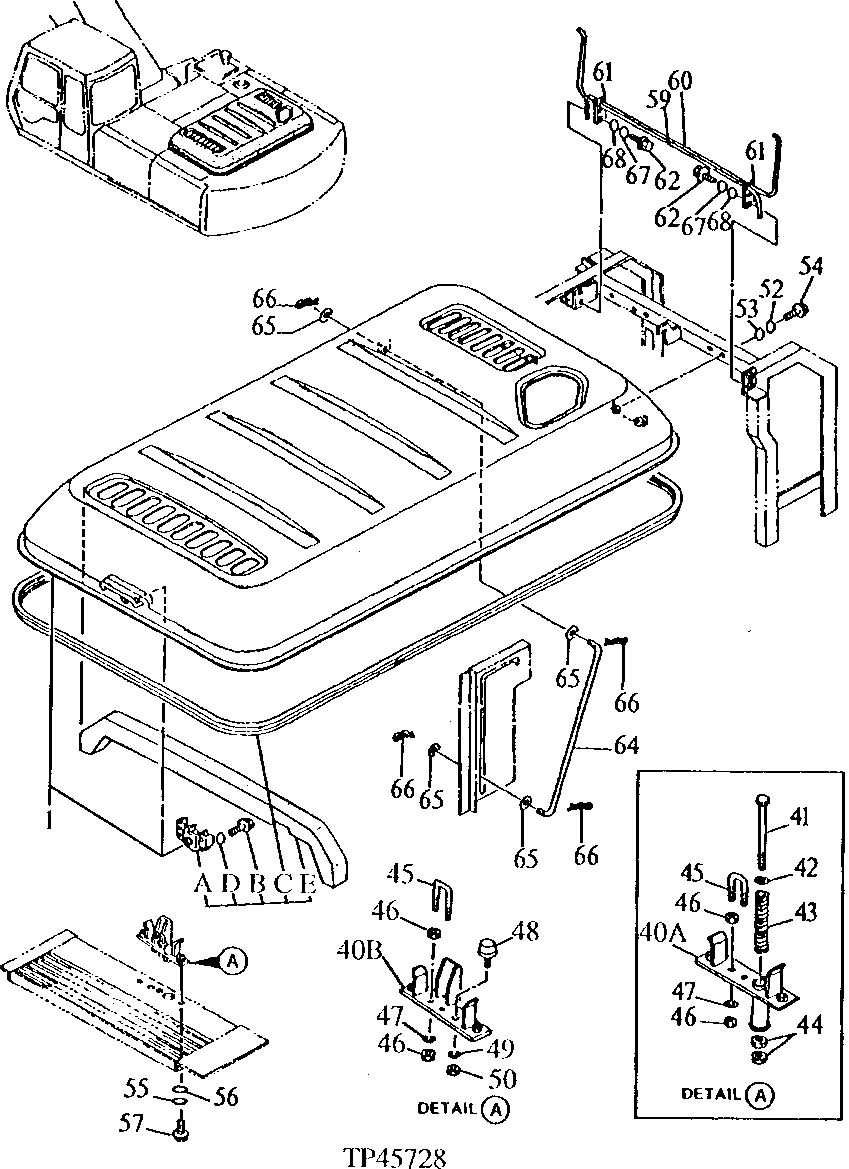

Схема запчастей John Deere 90ELC - 157 - Covers 1910 Hood Or Engine Enclosure

Артикул

Название

Примечание

Количество

1

5003398J

Cover

(SUB FOR AT155403 OR 5003398)

1шт.

1A

2038733

Lock

(SUB FOR 2031978, AT155227)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

1B

J900614

Bolt

(SUB FOR TH104056)

4шт.

1C

4387043

Isolator

(SUB FOR AT155314, 4278601)

1шт.

1D

12M7006

Lock Washer

6 mm

4шт.

1E

4320177

Isolator

(SUB FOR AT204826)

1шт.

40A

Bracket

( AT155568 NO LONGER AVAILABLE) (SUB AT20113 6, ALONG WITH AT201032, 12M7066 AND 14M7274)

1шт.

40B

AT307230

Bracket

(SUB FOR AT201136 OR 8053476)

1шт.

41

19M8061

Cap Screw

M12 X 140

1шт.

42

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

43

4283987

Compression Spring

(SUB FOR AT155328)

1шт.

44

14M7275

Nut

M12

2шт.

45

4280175

Bolt

(SUB FOR AT155315)

1шт.

46

14M7273

Nut

M8

4шт.

47

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

48

4294508

Bumper

(SUB FOR AT201032)

1шт.

49

12M7066

Lock Washer

10 mm

1шт.

50

14M7274

Nut

M10

1шт.

52

12M7066

Lock Washer

10 mm

4шт.

53

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

54

19M7662

Cap Screw

M10 X 30

4шт.

55

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

56

24M7346

Washer

11 X 20 X 2 mm

2шт.

57

19M7662

Cap Screw

M10 X 30

2шт.

59

3052305

Bracket

(SUB FOR AT155236)

1шт.

60

3052306

Bracket

(SUB FOR AT155237)

1шт.

61

4261669

Bracket

(SUB FOR AT155284)

2шт.

62

19M7662

Cap Screw

M10 X 30

4шт.

64

4262021

Bar

(SUB FOR AT155287)

1шт.

65

24M7085

Washer

15 X 28 X 2.500 mm

4шт.

66

L12622

Spring Locking Pin

4шт.

67

12M7066

Lock Washer

10 mm

4шт.

68

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

Выбрано товаров: 34
