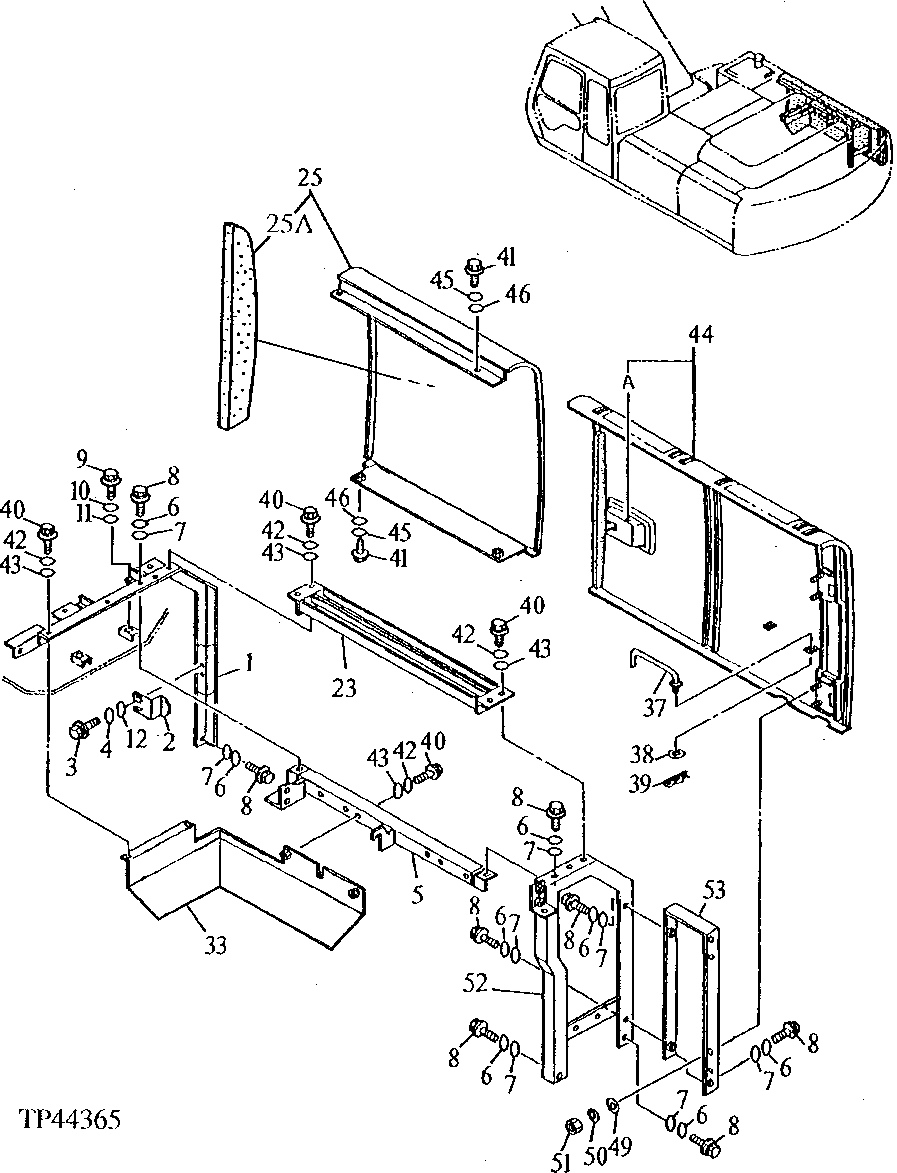

Запчасти John Deere 90ELC 155 - Covers 1910 Hood Or Engine Enclosure

1

7024915

Cover

(SUB FOR AT155417)

1шт.

2

4257087

Stop

(SUB FOR AT154930)

1шт.

3

19M7662

Cap Screw

M10 X 30

2шт.

4

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

5

8053660

Support

(SUB FOR AT157015)

1шт.

6

12M7066

Lock Washer

10 mm

8шт.

7

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

8

19M7662

Cap Screw

M10 X 30

8шт.

9

19M7402

Cap Screw

M10 X 25

2шт.

10

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

11

24M7346

Washer

11 X 20 X 2 mm

2шт.

12

24M7346

Washer

11 X 20 X 2 mm

2шт.

23

9737915

Guard

(SUB FOR AT155584)

1шт.

25

6011238

Cover

(SUB FOR AT155405)

1шт.

25A

4313365

Isolator

(SUB FOR AT166052)

1шт.

33

8048845

Cover

(SUB FOR AT155550)

1шт.

37

9737868

Bar

(SUB FOR AT155583)

1шт.

38

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

39

H132922

Cotter Pin

1шт.

40

19M7662

Cap Screw

M10 X 30

8шт.

41

19M7402

Cap Screw

M10 X 25

4шт.

42

12M7066

Lock Washer

10 mm

8шт.

43

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

44

5003549

Door

(SUB FOR AT155404)

1шт.

44A

Lock

(SUB AT214010)

1шт.

45

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

46

24M7346

Washer

11 X 20 X 2 mm

4шт.

49

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

50

12M7066

Lock Washer

10 mm

4шт.

51

14M7274

Nut

M10

4шт.

52

7024918

Support

(SUB FOR AT157014 ) (SUB FOR AT155419)

1шт.

53

7024950

Support

(SUB FOR AT155421)

1шт.
