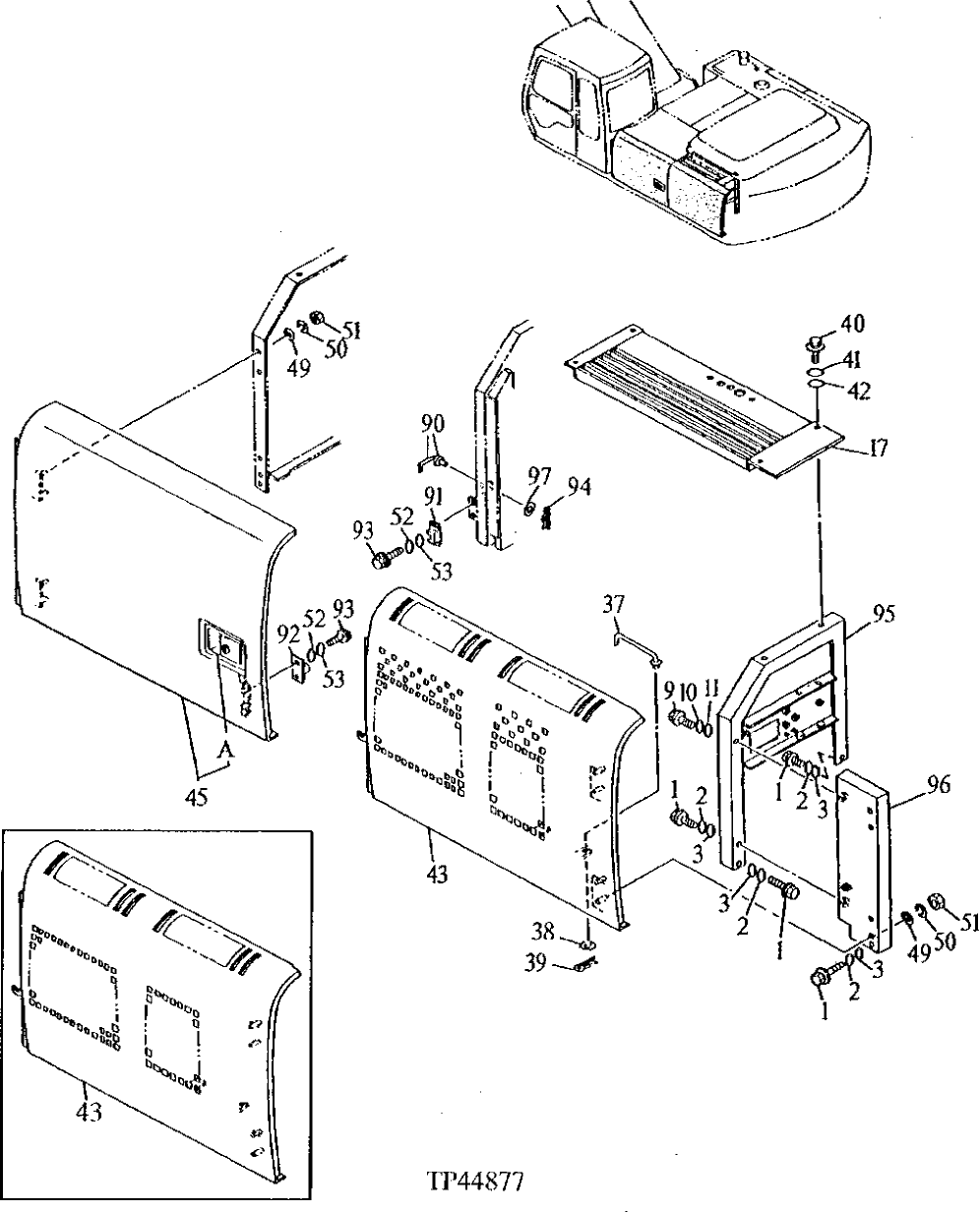

Запчасти John Deere 90ELC 154 - Covers 1910 Hood Or Engine Enclosure

1

19M7662

Cap Screw

M10 X 30

4шт.

2

12M7066

Lock Washer

10 mm

4шт.

3

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

9

19M7402

Cap Screw

M10 X 25

1шт.

10

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

11

24M7346

Washer

11 X 20 X 2 mm

1шт.

17

7025360

Cover

(SUB FOR AT155426)

1шт.

37

9737868

Bar

(SUB FOR AT155583)

1шт.

38

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

39

H132922

Cotter Pin

1шт.

40

19M7662

Cap Screw

M10 X 30

4шт.

41

12M7066

Lock Washer

10 mm

4шт.

42

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

43

6013198

Door

(SUB FOR AT158404)

1шт.

45

5003057

Door

(SUB FOR AT155401)

1шт.

45A

Lock

(SUB AT214010)

1шт.

49

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

50

12M7066

Lock Washer

10 mm

8шт.

51

14M7274

Nut

M10

8шт.

52

12M7006

Lock Washer

6 mm

4шт.

53

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

90

9738313

Bar

(SUB FOR AT155585)

1шт.

91

4175253

Bracket

(SUB FOR AT318015, AT154915)

1шт.

92

4175254

Stop

(SUB FOR AT154916)

1шт.

93

19M7923

Cap Screw

M6 X 12

4шт.

94

M800051

Pin

(SUB FOR CH10542)

1шт.

95

7024917

Support

(SUB FOR AT155418)

1шт.

96

7024949

Support

(SUB FOR AT155420)

1шт.

97

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.
