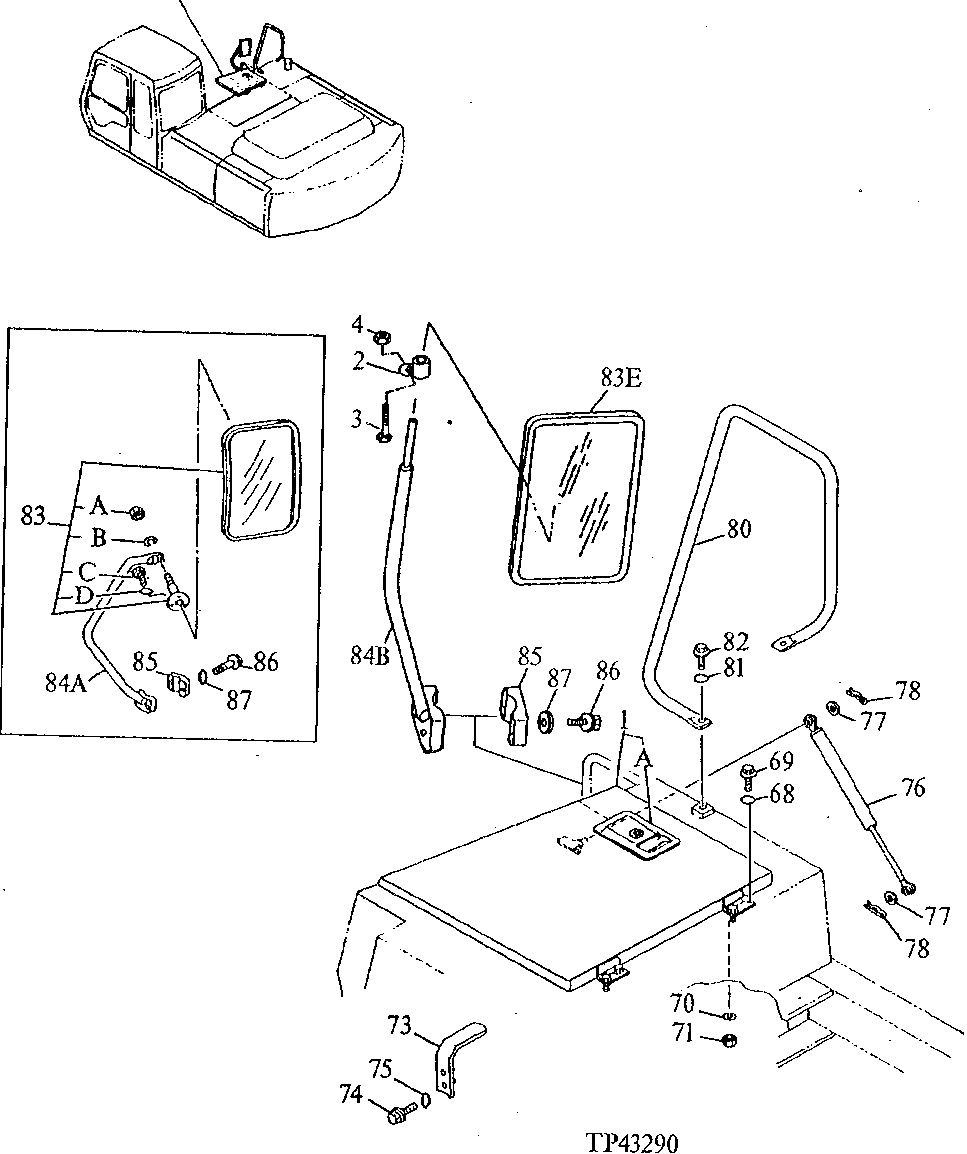

Запчасти John Deere 90ELC 153 - Covers 1910 Hood Or Engine Enclosure

1

7024563

Cover

(SUB FOR AT155414)

1шт.

1A

Lock

(SUB AT214010)

1шт.

2

Clamp

(NOT AVAILABLE FOR SERVICE)

1шт.

3

03M7193

Bolt

M10 X 35

1шт.

4

14M7400

Lock Nut

M10

1шт.

68

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

69

19M8761

Screw

M10 X 22

2шт.

70

12M7066

Lock Washer

10 mm

2шт.

71

14M7274

Nut

M10

2шт.

73

9736904

Bracket

(SUB FOR AT154546)

1шт.

74

19M7402

Cap Screw

M10 X 25

2шт.

75

12M7066

Lock Washer

10 mm

2шт.

76

4196560

Gas Operated Cylinder

(SUB FOR TH108776)

1шт.

77

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

78

H132922

Cotter Pin

2шт.

80

8047346J

Handrail

(SUB FOR AT154479 OR 8047346)

1шт.

81

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

82

19M8765

Screw

M12 X 28 (SUB FOR 19M3204)

2шт.

83

4318135

Rear View Mirror

(SUB FOR AT103919, THIS APPL ICATION ) (SUB FOR AT121241)

1шт.

83A

14M7273

Nut

M8

1шт.

83B

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

83C

21M7250

Screw

M4 X 12

3шт.

83D

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

3шт.

83E

Rear View Mirror

( TH104119 NO LONGER AVAILABLE) (SU B AT185207 MIRROR AND AT186649 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

84A

Arm

( 8019989 NO LONGER AVAILABLE) (SU B 8056640 ARM AND 4420724 MIRROR)

1шт.

84B

8056640

Arm

(SUB FOR AT161067)

1шт.

85

4113705

Clamp

(SUB FOR AT128469)

1шт.

86

19M7922

Cap Screw

M8 X 40

2шт.

87

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.
