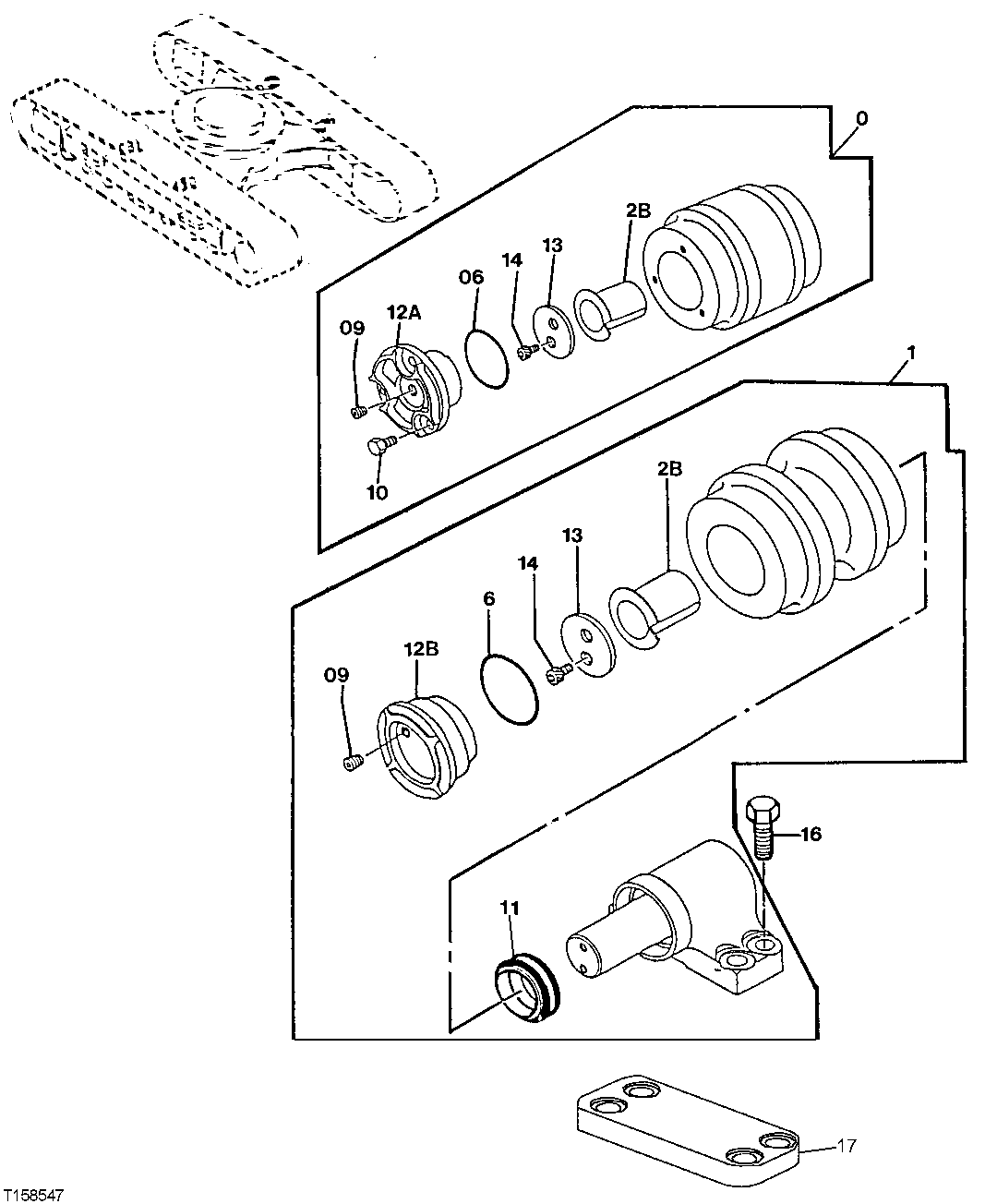

Запчасти John Deere 90ELC 4 - Upper Roller 0130 TRACK SYSTEM

0

Roller

(MARKED A) (PARTS 9178333, 913424 5, AT214385 AND AT154848 NO LONGER AVAILABLE) (REPLACE WITH AP34667 )

4шт.

1

AP34667

Roller

(USE WITH AP34667) (SUB FOR AP39243)

4шт.

2B

AT180004

Bushing

(USE WITH AP34667)

1шт.

4172348

Bushing

(A) (SUB FOR TH108089)

1шт.

6

CH17154

Packing

(A) (NOT AVAILABLE FOR AP34667)

1шт.

9

AT180007

Fitting Plug

(USE WITH AP34667)

1шт.

942011

Fitting Plug

(A) (SUB FOR 94-2011 AND TH100434)

1шт.

10

19M7938

Cap Screw

(A) M10 X 20 (USE WIT H BOLT ON STYLE COVER)

3шт.

11

AT180008

Seal

(USE WITH AP34667)

1шт.

4317584

Seal

(A) (SUB FOR TH111221 , TH102345 OR AT213828)

1шт.

12A

3052354

Cover

(A) (BOLT ON STYLE COVER) (ALSO OR DER (3) 19M7938 ) (SUB FOR AT154687)

1шт.

12B

Cover

(A) ( 3070078 NOT AVAILABLE FOR SERVICE) (S UB FOR AT213764 (NOT AVAILABLE FOR AP34667))

1шт.

13

AT180005

Washer

(USE WITH AP34667)

1шт.

T210827

Thrust Washer

(A) (SUB FOR AT131375 OR 4282842)

1шт.

14

AT180006

Screw

(USE WITH AP34667)

2шт.

M351018

Bolt

(A) (SUB FOR AT131372)

2шт.

16

19M8295

Cap Screw

M16 X 55 (SUB FOR 19M7480 )(USE WITH 4334245 SPACER)

16шт.

19M7488

Cap Screw

M16 X 40 (USE WITHOUT 4334245 SPACER)

16шт.

17

4334245

Spacer

1шт.
