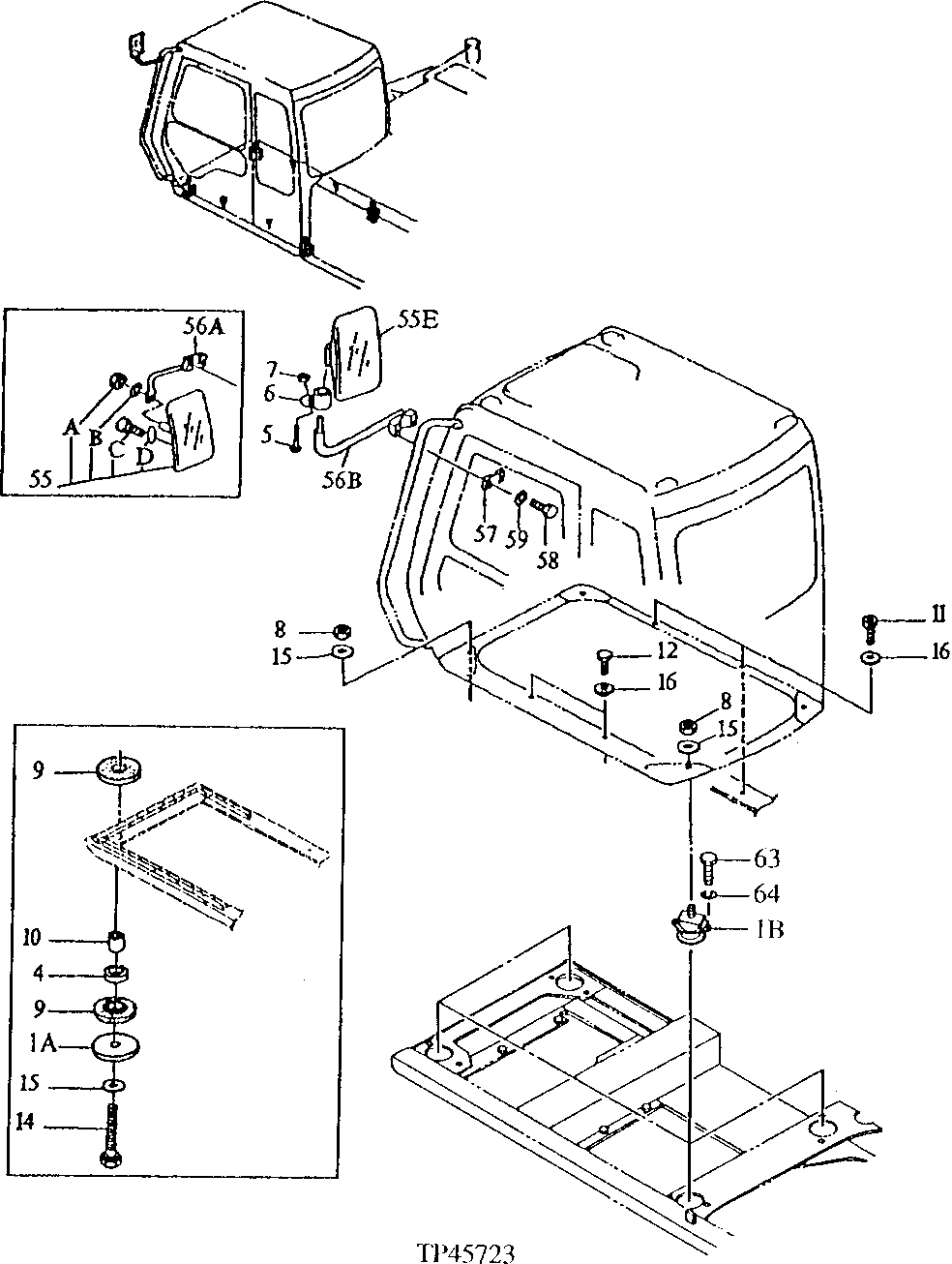

Запчасти John Deere 90ELC 128 - Cab 1810 Operator Enclosure

1A

4185675

Stop

(SUB FOR TH108607)

4шт.

1B

4366825

Isolator

(SUB FOR AT202465 ) (SUB FOR AT176229)

4шт.

4

4200085

Isolator

(SUB FOR TH108604)

4шт.

5

03M7193

Bolt

M10 X 35

1шт.

6

Clamp

(NOT AVAILABLE FOR SERVICE)

1шт.

7

14M7400

Lock Nut

M10

1шт.

8

14M7328

Lock Nut

M16

4шт.

9

4311428

Spacer

(SUB FOR AT158387)

8шт.

10

4310307

Bushing

(SUB FOR AT158389)

4шт.

11

19M8338

Screw

M10 X 40 (SUB FOR 19M8 337, THIS APPLICATION)

2шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

14

4215647

Bolt

(SUB FOR TH110648)

4шт.

15

24M7338

Washer

17 X 30 X 3 mm

8шт.

24M7338

Washer

17 X 30 X 3 mm

4шт.

16

24M7346

Washer

11 X 20 X 2 mm

4шт.

55

4318135

Rear View Mirror

(SUB FOR AT103919, THIS APPL ICATION ) (SUB FOR AT121241)

1шт.

55A

14M7273

Nut

M8

1шт.

55B

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

55C

21M7250

Screw

M4 X 12

3шт.

55D

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

3шт.

55E

4420724

Rear View Mirror

(USE IF AVAILABLE) (SUB AT185207 MIRRO R AND AT186649 ARM) (SUB FOR TH104119)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

56A

Arm

( AT130910 OR AT161068 NO LONGER AVAILAB LE) (SUB 4420724 ARM AND 8076201 MIRROR)

1шт.

56B

4420724

Rear View Mirror

(USE IF AVAILABLE) (SUB AT186649 AND AT185207) (SUB FOR AT219495)

1шт.

56C

8076201

Arm

(SUB FOR AT186649)

1шт.

57

AT219494

Clamp

(SUB FOR AT131743)

1шт.

58

19M8359

Cap Screw

M8 X 45

2шт.

59

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

63

19M7493

Cap Screw

M12 X 40 (SUB FOR 4330785 OR J921240)

8шт.

64

12H301

Lock Washer

1/2"

8шт.
