Запчасти John Deere 90ELC 118 - Cab Door 1810 Operator Enclosure

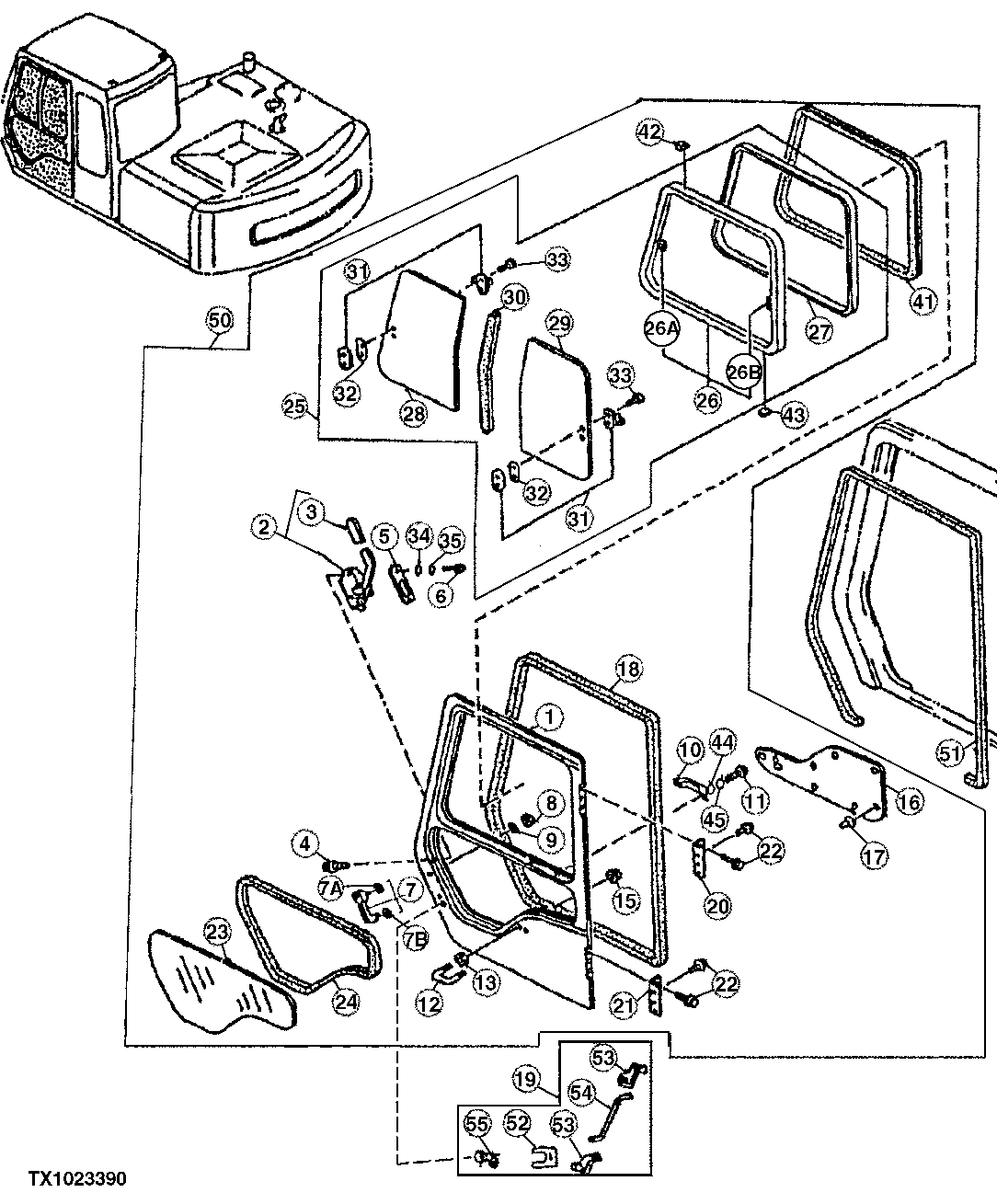

Схема запчастей John Deere 90ELC - 118 - Cab Door 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

0

4282696

Cab

(SUB FOR AT154356)(NOT ILLUSTRATED) (CONTAI NS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPO NENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.

1

Door

(NOT AVAILABLE FOR SERVICE)

1шт.

2

4295576

Lock

(SUB FOR AT157063)

1шт.

3

4295577

Cover

(SUB FOR AT157064)

1шт.

4

19M8425

Cap Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

19M8425

Cap Screw

M6 X 16 (SUB FOR 4320168, AL ONG WITH 24H1287 AND 12M7006)

4шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

4шт.

12M7006

Lock Washer

6 mm

4шт.

5

4295585

Cover

(SUB FOR AT157065)

1шт.

6

19M7372

Cap Screw

M5 X 16

2шт.

7

4295581

Handle

(SUB FOR AT157066)

1шт.

7A

4323455

Packing

(SUB FOR AT164071)

1шт.

7B

4323456

Packing

(SUB FOR AT164072)

1шт.

8

Nut

(SUB FOR 14M7273, THIS APPLICATION ) (SUB FOR AT163959)( 12M7065 NO LONGER REQUIRED)

2шт.

14M7273

Nut

M8

2шт.

12M7065

Lock Washer

8 mm

2шт.

9

Lock Washer

2шт.

10

4204579

Handle

(SUB FOR TH108661)

1шт.

11

19M8425

Cap Screw

M6 X 16

2шт.

12

4304829

Bolt

(SUB FOR AT157067)

1шт.

13

4414857

Nut

(SUB FOR AT157068)

2шт.

15

4414857

Nut

(SUB FOR AT157068)

2шт.

16

Acoustical Upholstery

( 4295730 NO LONGER AVAILABLE) (SU B 4372272, ALONG WITH (9) 4204607)

1шт.

4372272

Pad

(SUB FOR AT200589)

1шт.

17

4204607

Clip

(SUB FOR TH108690)

9шт.

18

4295587

Weatherstrip

(SUB FOR AT157070)

1шт.

19

Lock

( 4295588 NO LONGER AVAILABLE) (ORDER INDIVIDUAL COMPONENTS)

1шт.

20

4295589

Hinge

(SUB FOR AT157072)

1шт.

21

4295590

Hinge

(SUB FOR AT157073)

1шт.

22

R168831

Cap Screw

(SUB FOR AT157074 OR 4295578)

12шт.

24M7271

Washer

10.500 X 20 X 2 mm

12шт.

23

AT154422

Windowpane

1шт.

24

4289513

Isolator

(SUB FOR AT154423)

1шт.

25

Frame

(NOT AVAILABLE FOR SERVICE)

1шт.

Выбрано товаров: 36
