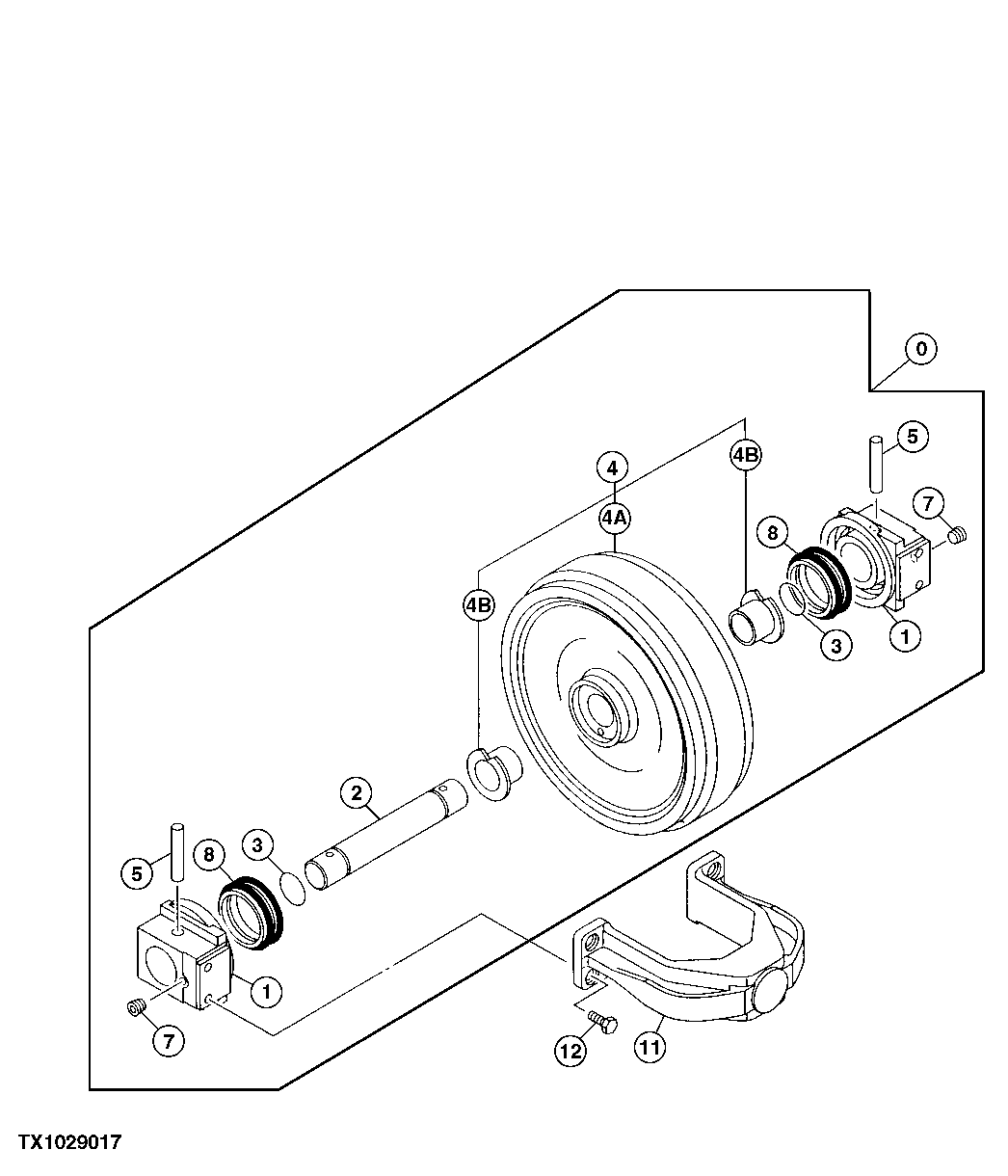

Запчасти John Deere 90ELC 2 - REPLACEMENT FRONT IDLER 0130 TRACK SYSTEM

0

AT180014

Track Idler

QUANTITY OF ONE EACH SIDE OF UNIT

2шт.

1

AT180016

Support

2шт.

2

AT180022

Shaft

1шт.

3

O-Ring

NLA

2шт.

4

AT180020

Roller Shell

1шт.

4A

Idler

1шт.

4B

AT180021

Bushing

75 X 79 X 48.500 mm

2шт.

5

AT180015

Pin Fastener

20.500 X 107 mm

2шт.

7

AT180007

Fitting Plug

2шт.

8

Seal

NLA

2шт.

11

AT180023

Yoke

QUANTITY OF 1 EACH SIDE OF UNIT

2шт.

12

19M8035

Cap Screw

M16 X 35 QUANTITY OF 4 EACH SIDE OF UNIT

8шт.
