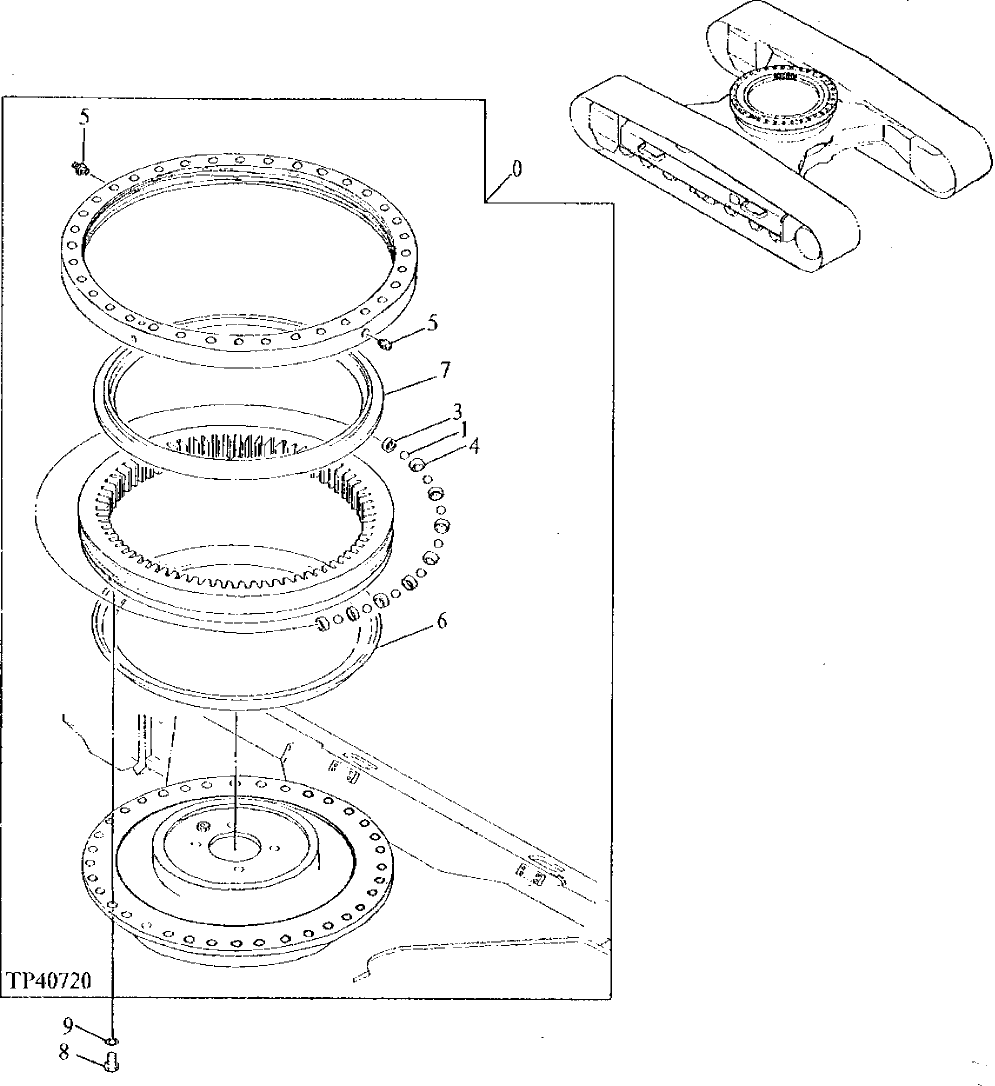

Запчасти John Deere 90ELC 109 - Swing Bearing 1740 Frame Installation

0

AT190770

Roller

1шт.

9154037EX

Swing Bearing

(SUB FOR AT178566)(REMAN FOR AT190770)

1шт.

1

4355766

Ball

(SUB FOR TH102257 OR TH10 3076 ) (SUB FOR AT174890)

90шт.

3

4134900

Spacer

(SUB FOR TH102260)

75шт.

4

4134901

Spacer

(SUB FOR TH102261)

15шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA, (SUB FOR T191211, AT1552 85, AT131484 AND AT131732 ) (ALSO ORDER TY21517 AND AT66866 ) (SUB FOR 4199645 )

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

1шт.

AT66866

Fluid

(NOT ILLUSTRATED)

1шт.

7

T203958

Seal

4631753 NLA, (SUB FOR T191211, AT1552 86, AT131484 AND AT131732 ) (ALSO ORDER TY21517 AND AT66866 ) (SUB FOR 4199645 )

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

1шт.

AT66866

Fluid

(NOT ILLUSTRATED)

1шт.

8

AT217784

Bolt

M22 X 70 (SUB FOR 4356694)

36шт.

9

J257222

Lock Washer

(SUB FOR 12H245, THIS APPLI CATION ) (SUB FOR AT217702)

36шт.
