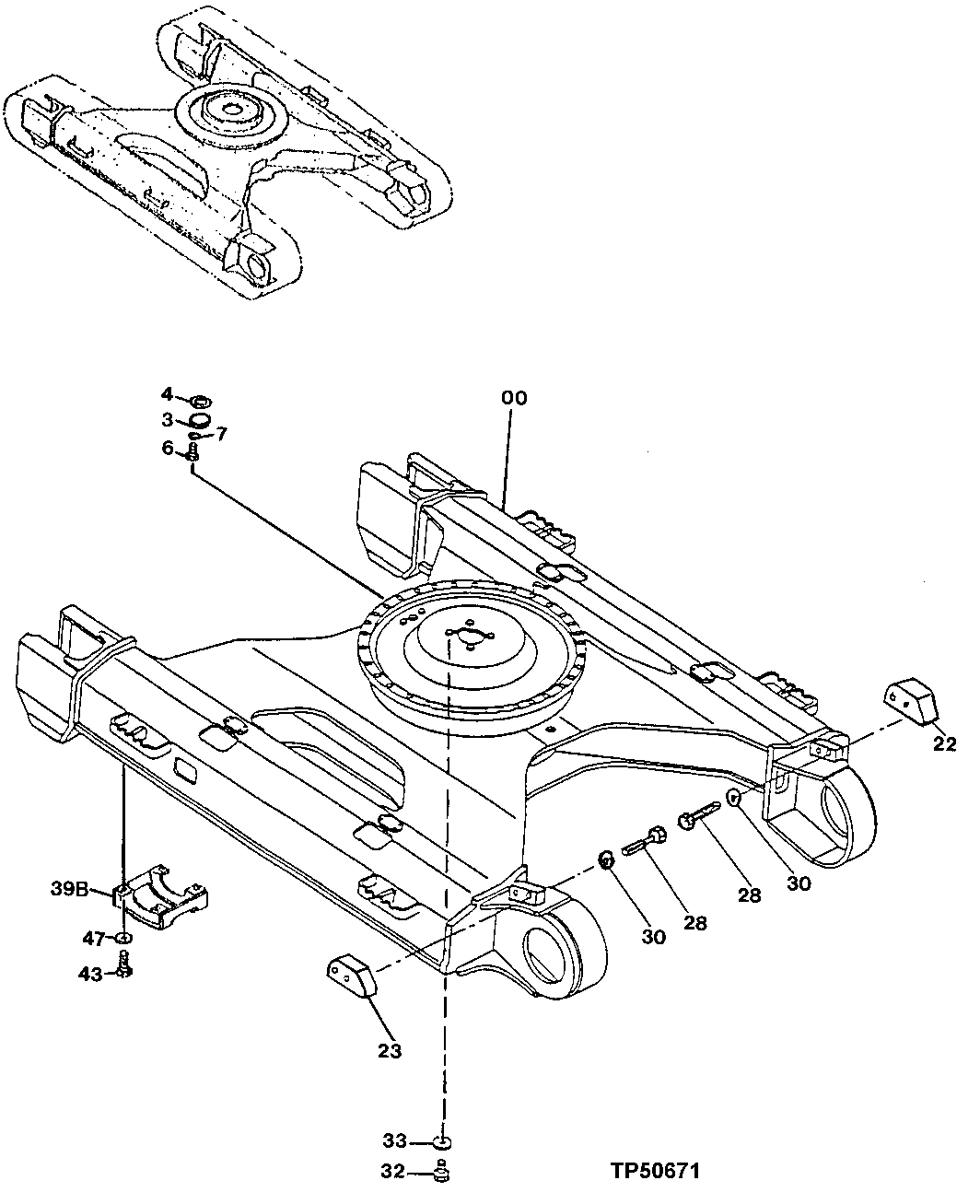

Запчасти John Deere 90ELC 107 - Track Frame (015714 - ) 1740 Frame Installation

0

Frame

TRACK, AT154806 (NOT FOR SERVICE)

1шт.

3

4128863

Plate

(SUB FOR TH102264)

1шт.

4

4272297

Gasket

(SUB FOR TH110612 AND 4211149)

1шт.

6

19M7938

Cap Screw

M10 X 20

2шт.

7

12M7066

Lock Washer

10 mm

2шт.

22

3080128

Retainer

(SUB FOR AT217824, THIS APPL ICATION ) (SUB FOR AT181148)

1шт.

23

3080129

Retainer

(SUB FOR AT217833, THIS APPL ICATION ) (SUB FOR AT181147)

1шт.

28

19M7719

Cap Screw

M16 X 70

4шт.

30

24M7338

Washer

17 X 30 X 3 mm

4шт.

32

19M8017

Cap Screw

M12 X 20

1шт.

33

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

39B

8059049

Guard

(SUB FOR AT163128)

2шт.

41

19M8232

Cap Screw

M18 X 50

8шт.

43

4248682

Bolt

(SUB FOR AT154716)

8шт.

47

4335209

Spacer

(SUB FOR AT163129)

8шт.
