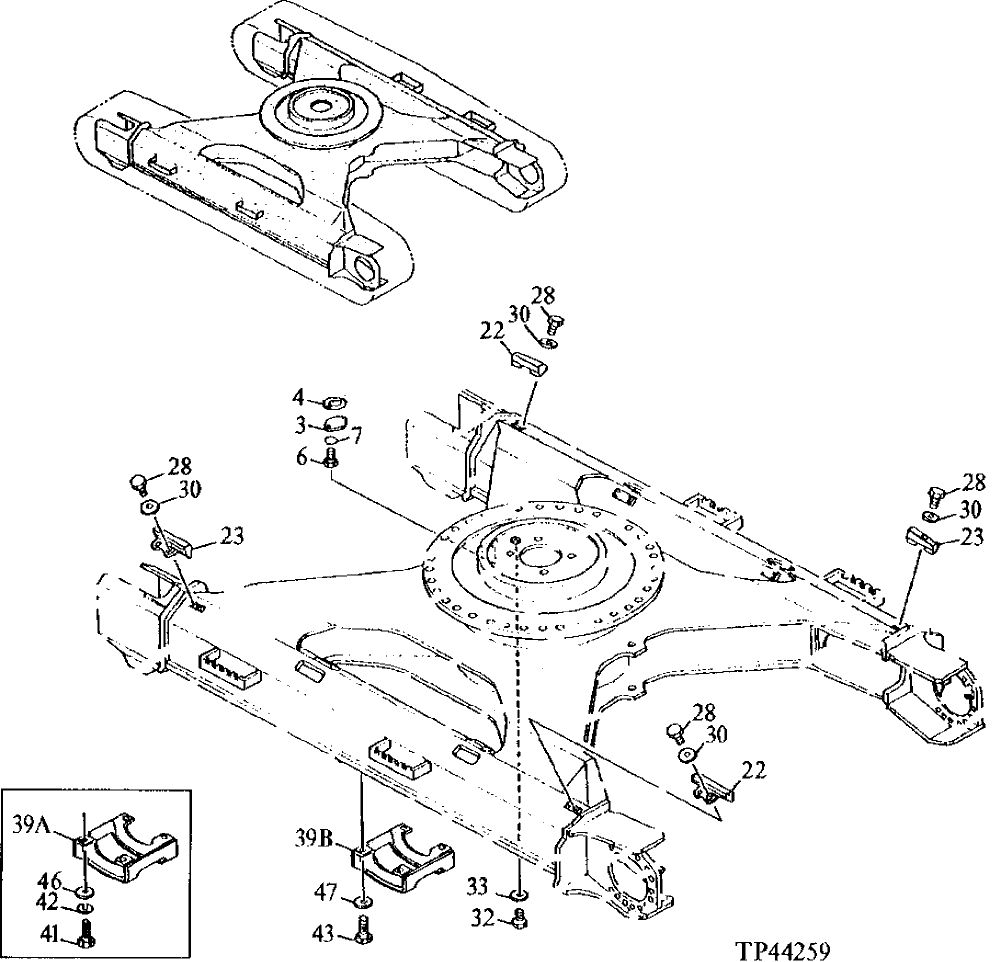

Запчасти John Deere 90ELC 106 - Track Frame ( - 015713) 1740 Frame Installation

0

Frame

TRACK (AT154806 NOT FOR SERVICE)

1шт.

3

4128863

Plate

(SUB FOR TH102264)

1шт.

4

4272297

Gasket

(SUB FOR TH110612 AND 4211149)

1шт.

6

19M7938

Cap Screw

M10 X 20

2шт.

7

12M7066

Lock Washer

10 mm

2шт.

22

2031046

Stop

(SUB FOR AT154655)

2шт.

23

2031047

Stop

(SUB FOR AT154656)

2шт.

28

19M8011

Cap Screw

M12 X 30

8шт.

30

M135494

Washer

12.500 X 35 X 4.500 mm (SU B FOR AT121286 OR 4183252)

8шт.

32

19M8017

Cap Screw

M12 X 20

1шт.

33

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

39A

AT314587

Guard

(SUB FOR AT154841 OR 8052020)

2шт.

39B

Guard

8059049 NOT FOR SERVICE THIS APPLICATION ( AT163128 NO LONGER AVAILABLE) (ORDER AT15 4841, (4) 19M8232, (4) 12H236, (4) 24M7353)

2шт.

41

19M8232

Cap Screw

M18 X 50

8шт.

42

12H236

Lock Washer

3/4"

8шт.

43

4248682

Bolt

(SUB FOR AT154716)

8шт.

46

24M7353

Washer

20 X 34 X 3 mm

8шт.

47

4335209

Spacer

(SUB FOR AT163129)

8шт.
