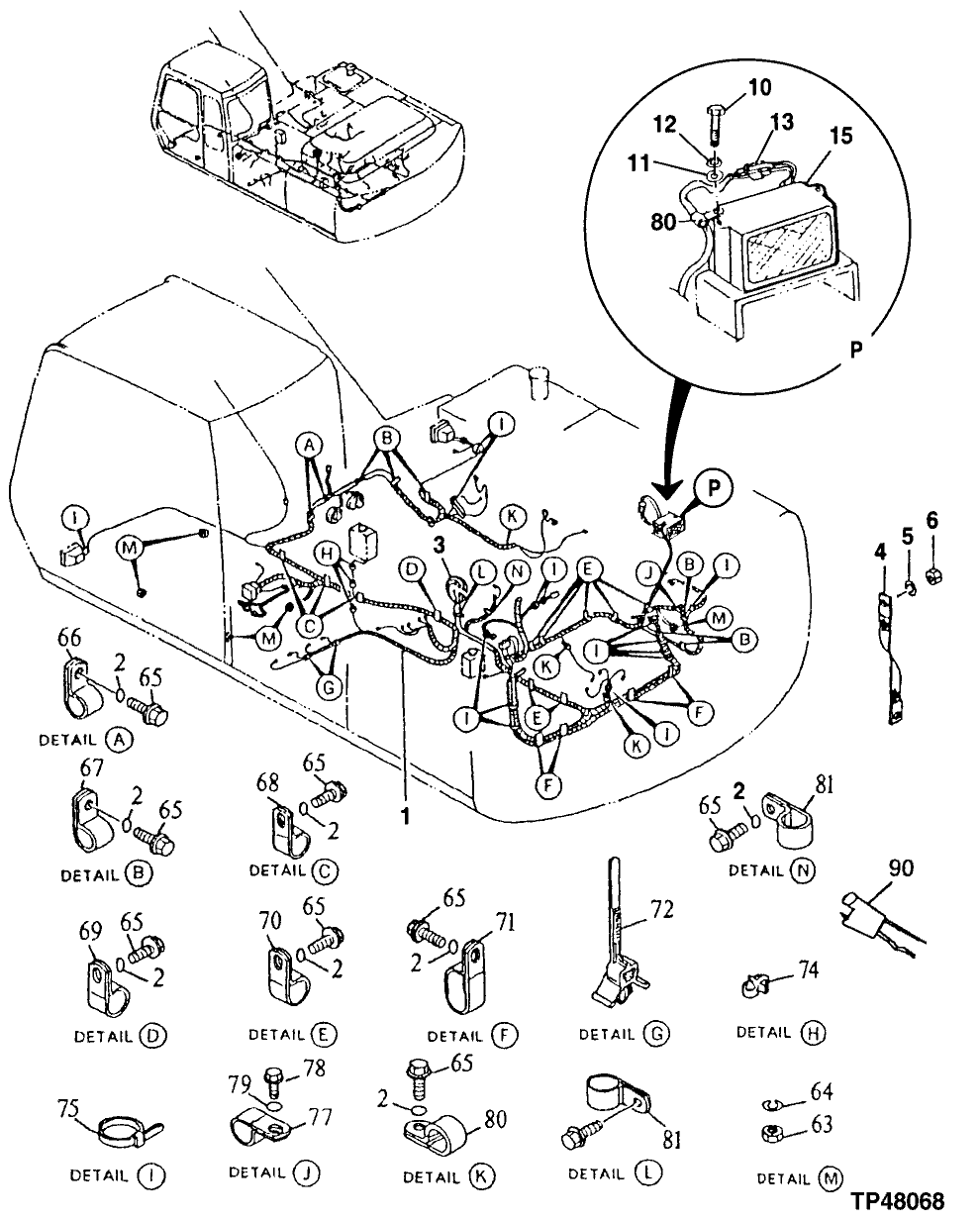

Запчасти John Deere 90ELC 98 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

0001216

Wiring Harness

(SUB FOR AT160981)(INCLU DES AT158011 CONNECTORS)

1шт.

0001880

Wiring Harness

(SUB FOR AT202402)

1шт.

1A

4288109

Diode

(SUB FOR (12) AT174465)(NOT ILLUSTRATE D) (COMPONENT OF WIRE HARNESS) (SEPARAT E DIODES) (1-KEYSWITCH, 1-SWING STOP CU SHION SOLENOID, 1-GRIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

12шт.

4374532

Diode

(SUB FOR AT179476)(NOT ILLUSTRATED) (COMP ONENT OF WIRE HARNESS) (PLASTIC CONNECTOR CONTAINS 5 DIODES) (1-KEYSWITCH, 1-SWING S TOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1-F UEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMENT )

1шт.

2

12M7066

Lock Washer

10 mm

27шт.

3

4312250

Hold-Down Clip

(SUB FOR AT158011)(WIRE AND CONNEC TOR TO SOLENOID VALVE) (SET OF TEN)

1шт.

4

AT47069

Ground Cable

406.400 mm (SUB FOR AT154993)STRAP (ENGINE FLYWHEEL HOUSING TO GROUND)

1шт.

5

12M7066

Lock Washer

10 mm

1шт.

6

14M7274

Nut

M10

1шт.

10

19M8456

Cap Screw

M8 X 100

2шт.

11

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

13

H77698

Tie Band

1шт.

15

AT301074

Alarm System

(SUB FOR AT154966, 4283028)

1шт.

63

14M7274

Nut

M10

5шт.

64

12M7066

Lock Washer

10 mm

5шт.

65

19M7938

Cap Screw

M10 X 20

27шт.

66

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

2шт.

67

4190275

Clamp

(SUB FOR TH108598)

6шт.

68

AT121321

Hose Clamp

3шт.

69

R72659

Clamp

(SUB FOR TH108594 OR 4235654)

1шт.

70

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

7шт.

71

T32854

Clamp

4шт.

72

H77698

Tie Band

2шт.

74

4218657

Clip

(SUB FOR AT132515)

3шт.

75

H77698

Tie Band

(SUB FOR M88199)

15шт.

77

4000860

Clamp

(SUB FOR AT154911)

1шт.

78

19M8425

Cap Screw

M6 X 16

1шт.

79

12M7006

Lock Washer

6 mm

1шт.

80

4190261

Clip

(SUB FOR TH109649)

4шт.

81

4190275

Clamp

(SUB FOR TH108598)

2шт.

90

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.
