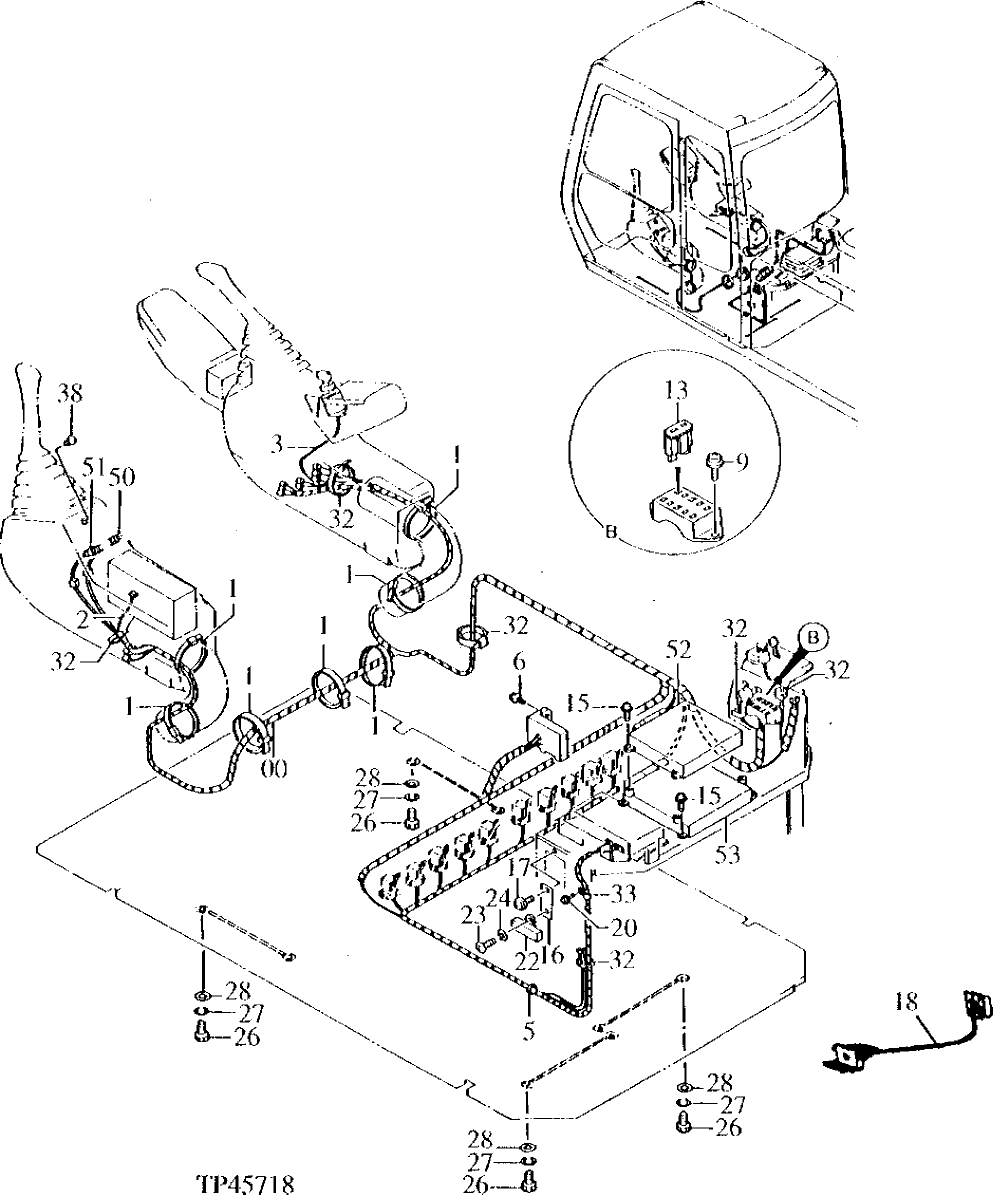

Запчасти John Deere 90ELC 91 - ELECTRIC PARTS (015000 - ) 1674 Wiring Harness And Switches

0

0001878

Wiring Harness

(SUB FOR AT202400)

1шт.

4192489

Diode

(SUB FOR TH110500)

3шт.

1

H77698

Tie Band

7шт.

2

4277941

Wiring Harness

(SUB FOR AT154956)(RADIO)

1шт.

3

4277927

Wiring Harness

(SUB FOR AT154955)(STARTER SWITCH)

1шт.

5

4254600

Clip

(SUB FOR AT154928)

1шт.

6

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

13

57M7329

Fuse

(BLADE) (BLACK)

6шт.

57M7125

Fuse

(TAN)

8шт.

57M7121

Fuse

(RED)

3шт.

57M7120

Fuse

(YELLOW)

2шт.

15

19M8425

Cap Screw

M6 X 16

ARшт.

12M7006

Lock Washer

6 mm

ARшт.

24M7293

Washer

6.500 X 13 X 1.600 mm

ARшт.

16

4316851

Plate

(SUB FOR AT202450)

1шт.

17

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

18

2035206

Wiring Harness

(SUB FOR AT158373)(9 FT. EX TENSION) (TO CAB CONNECTOR)

1шт.

2036643

Wiring Harness

(SUB FOR AT161804)(15 FT. E XTENSION) (TO CAB CONNECTOR)

1шт.

20

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

1шт.

22

4191772

Resistor

(SUB FOR AT155250)(ALTERNATOR EXITATION)

1шт.

23

4204811

Screw

(SUB FOR AT155253)

1шт.

24

12H315

Lock Washer

0.164" (SUB FOR 12M7063)

1шт.

26

19M8324

Cap Screw

M10 X 16

4шт.

27

12M7066

Lock Washer

10 mm

4шт.

28

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

32

H77698

Tie Band

6шт.

33

4000859

Clip

(SUB FOR AT154910)

1шт.

38

4344989

Clip

(SUB FOR AT203632)

1шт.

50

4322387

Switch

(MOTION ALARM) (SUB FOR AT 154976 ) (SUB FOR AT161978)

1шт.

51

4322389

Switch

(STARTING AID) (SUB FOR AT 154975 ) (SUB FOR AT161977)

1шт.

52

9109826

Control

(SUB FOR AT159414)(ENGINE CONTROL)

1шт.

53

9137868

Central Control Unit

(SUB FOR AT204851)(PUMP VALVE CONTROL)

1шт.
