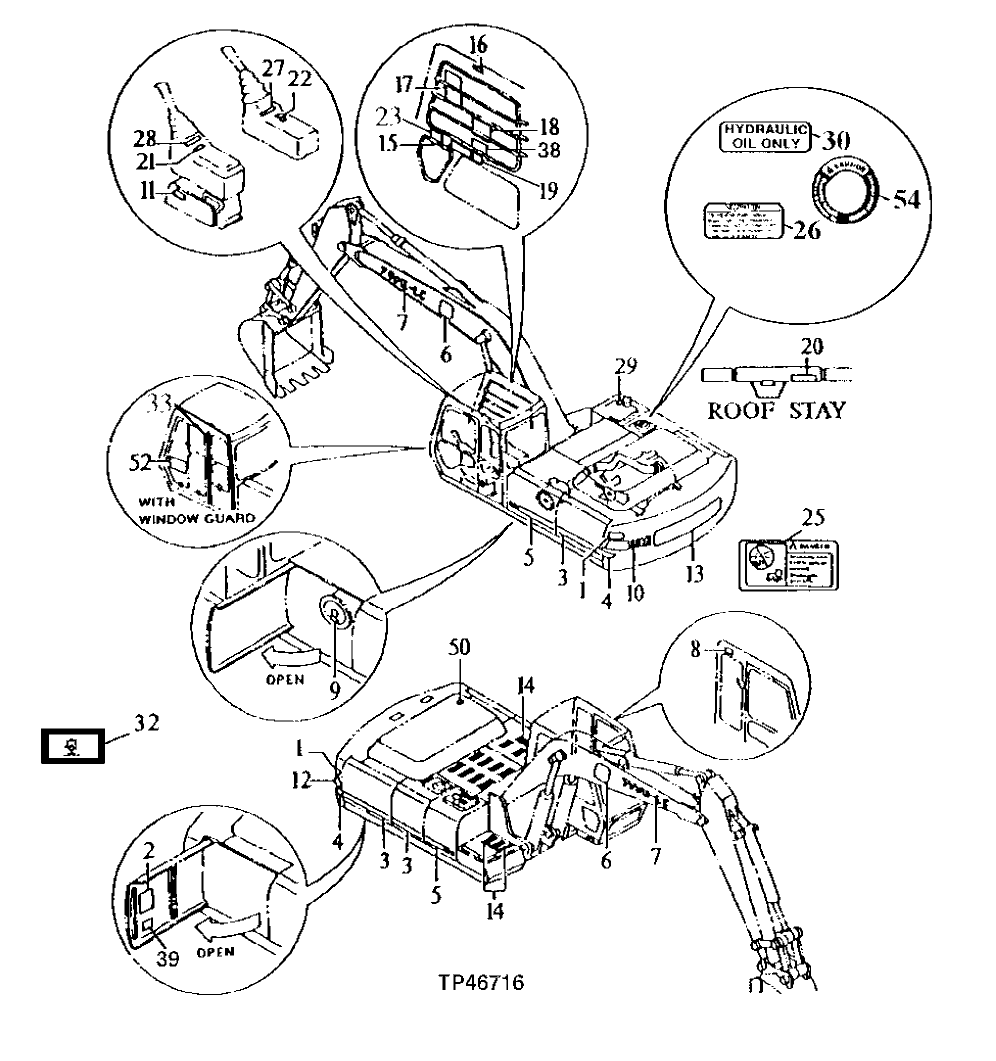

Запчасти John Deere 90ELC 78 - Labels and Decals ( - 010233) 1320 VEHICLE FINISH AND TRIM

25

T146102

Label

(SUB FOR T146102 OR T146102)(BYPASS START)

1шт.

T146104

Safety Sign

(K2) (BYPASS START - FRENCH)

1шт.

T146106

Safety Sign

(K3) (BYPASS START - SPANISH)

1шт.

26

P63448

Label

(SUB FOR AT155733)(PUMP BLEED INFORMATION)

1шт.

T114803

Label

(K2) (PUMP BLEED INFORMATION - FRENCH)

1шт.

T153403

Label

(K3) (PUMP BLEED INFORMATION - SPANISH)

1шт.

27

TH103404

Label

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159843

Label

(SUB FOR TH103406)(RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

28

TH103405

Label

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

T159844

Label

(SUB FOR TH101630)(LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

29

T79632

Label

(DIESEL ONLY)

1шт.

T114681

Label

(K2) (DIESEL ONLY - FRENCH)

1шт.

T127575

Label

(K3) (DIESEL ONLY - SPANISH)

1шт.

30

T101942

Label

(HYDRAULIC OIL)

1шт.

T102618

Label

(K2) (HYDRAULIC OIL - FRENCH)

1шт.

T102620

Label

(K3) (HYDRAULIC OIL - SPANISH)

1шт.

32

T153187

Label

(AMBER) (HYDRAULIC FILTER RESTRICTION I NDICATOR) (SUB FOR T143272 CLEAR LABEL)

1шт.

33

4295579

Tape

(SUB FOR AT166677)(BLACK)

1шт.

38

T153672

Label

(LONG FRONT OPERATION)

1шт.

T153708

Label

(LONG FRONT OPERATION - FRENCH)

1шт.

T153709

Label

(LONG FRONT OPERATION - SPANISH)

1шт.

39

T153673

Label

(LONG FRONT PERIODIC MAINTENANCE)

1шт.

T153710

Label

(LONG FRONT PERIODIC MAINTENANCE - FRENCH)

1шт.

T153711

Label

(LONG FRONT PERIODIC MAINTENANCE - SPANISH)

1шт.

50

T146671

Safety Sign

(SUB FOR T143238)(RADIATOR CAP)

1шт.

T153424

Label

(K2) (RADIATOR CAP - FRENCH)

1шт.

T153396

Safety Sign

(K3) (RADIATOR CAP - SPANISH)

1шт.

52

AT152168

Label

(SUB FOR T144115)(VANDAL COVER LOCATIONS)

1шт.

54

T146670

Label

(HYDRAULIC RESERVOIR CAP)

1шт.

T153423

Label

(K2) (HYDRAULIC RESERVOIR CAP - FRENCH)

1шт.

T153397

Label

(K3) (HYDRAULIC RESERVOIR CAP - SPANISH)

1шт.

56

T153574

Label

(K2) (FUSE BOX COVER - F RENCH) (NOT ILLUSTRATED)

1шт.

T153564

Label

(K3) (FUSE BOX COVER - S PANISH) (NOT ILLUSTRATED)

1шт.

57

Safety Sign

(AVOID TIPOVER - FRENCH) (NOT ILLUST RATED) ( T153540 NO LONGER AVAILABLE)

1шт.

Safety Sign

(AVOID TIPOVER - SPANISH) (NOT ILLUST RATED) ( T153542 NO LONGER AVAILABLE)

1шт.
