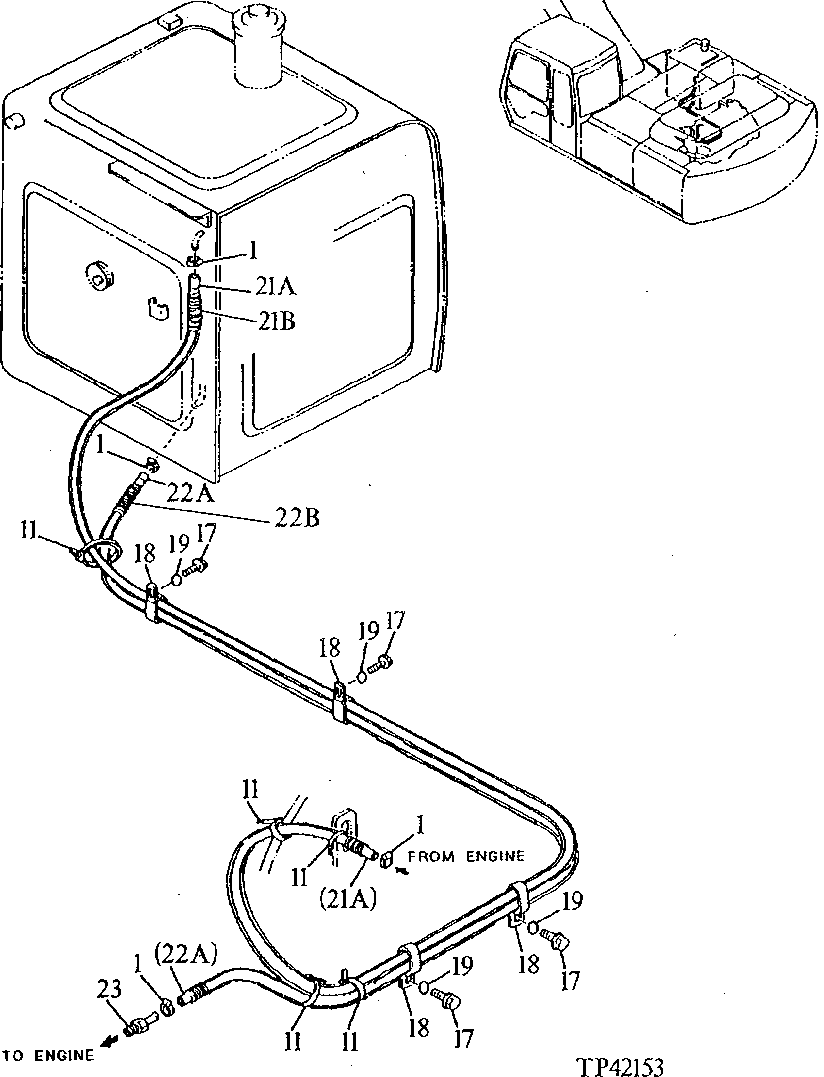

Запчасти John Deere 90ELC 74 - FUEL HOSES ( - 014999) 0560 External Fuel Supply Systems

1

TY22464

Clamp

(SUB FOR AT145649 ) (SUB FOR AR21836)

4шт.

11

H77698

Tie Band

ARшт.

17

19M7938

Cap Screw

M10 X 20

4шт.

18

4190266

Clip

(SUB FOR TH108793)

4шт.

19

12M7066

Lock Washer

10 mm

4шт.

21A

Hose

(CUT TO LENGTH FROM T79477 BULK MATERIAL)

1шт.

21B

Tube

(CUT TO LENGTH FROM T83427 BULK MATERIAL)

1шт.

22A

Hose

(CUT TO LENGTH FROM TY2256 1 BULK MATERIAL) (3200 MM)

1шт.

22B

Tube

(CUT TO LENGTH FROM T83427 BULK MATERIAL)

1шт.

23

R67293

Fitting

(SUB FOR TH100897)

1шт.
