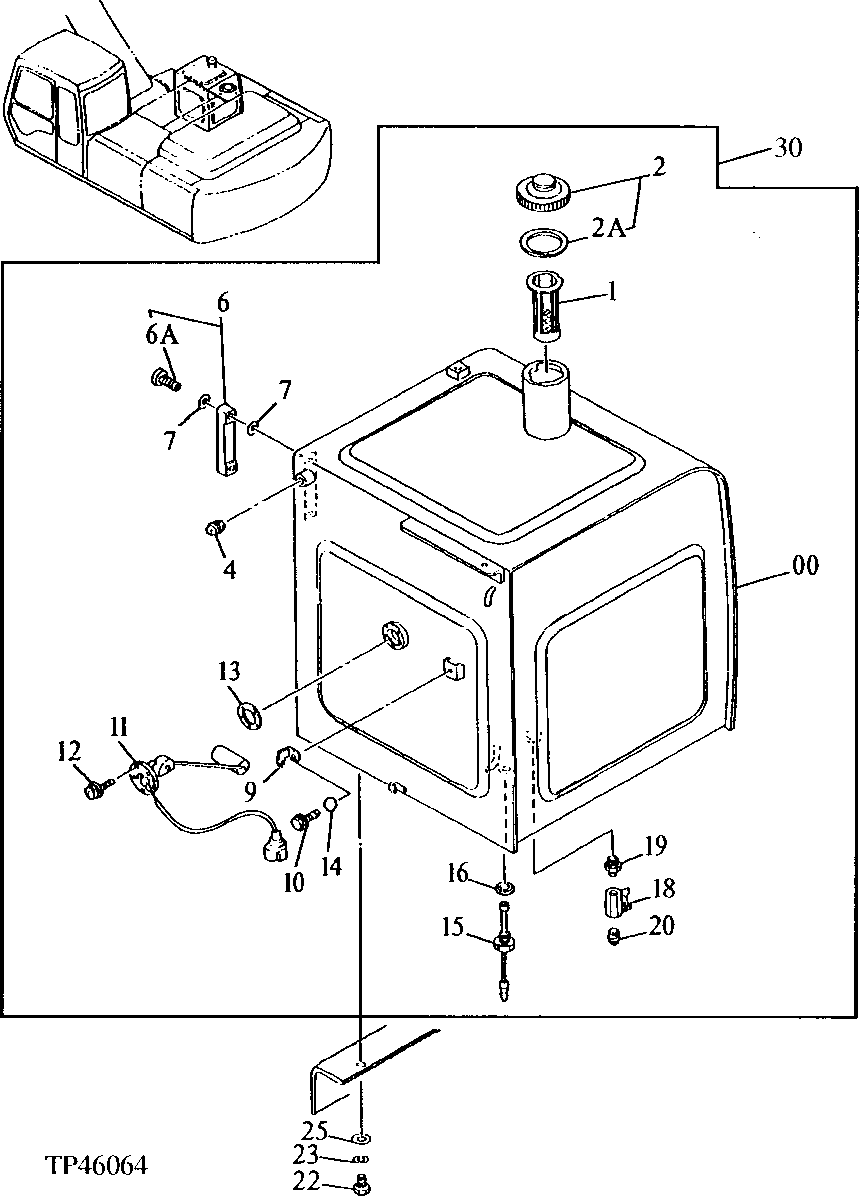

Запчасти John Deere 90ELC 73 - Fuel Tank 0560 External Fuel Supply Systems

0

Fuel Tank

AT154805 NO LONGER AVAILABLE

1шт.

1

4121496

Fuel Filter

SUB FOR TH100509

1шт.

2

4361638

Cap

SUB FOR TH108249, KEY LOCK ABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800, NOT ILLUSTRATED

1шт.

AT323462

Filler Cap

SUB FOR TH108249, AT175989 OR 4361638, CAN BE LOCKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

2A

4168820

Packing

SUB FOR TH103384, FOR US E WITH TH108249 FUEL CAP

1шт.

4

94-2024

Fitting Plug

SUB FOR TH101292

1шт.

94-2013

Fitting Plug

SUB FOR TH100648

1шт.

6

8033923

Level Gauge

SUB FOR TH108250

1шт.

6A

4100967

Bolt

SUB FOR TH101894

2шт.

7

449558

Washer

SUB FOR TH100675

4шт.

9

4257159

Bracket

SUB FOR AT154243

1шт.

10

19M8324

Cap Screw

M10 X 16

1шт.

11

4660782

Float

SUB FOR AT154239 OR 4257128

1шт.

12

21M7278

Screw

M5 X 10

5шт.

13

T211051

Gasket

SUB FOR U42323

1шт.

14

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

15

4259788

Switch

SUB FOR AT154272

1шт.

16

4157648

Sealing Washer

SUB FOR TH108583

1шт.

18

4374265

Drain Valve

SUB FOR TH111035, SUB FOR AT177419

1шт.

19

T116057

Fitting

1шт.

20

M800462

Plug

SUB FOR TH101049

1шт.

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

22

4288155

Bolt

SUB FOR AT154799

4шт.

23

12H294

Lock Washer

5/8"

4шт.

25

24M7338

Washer

17 X 30 X 3 mm

4шт.

30

9155497J

Fuel Tank

SUB FOR AT170588, AT178658 OR 9155497

1шт.
