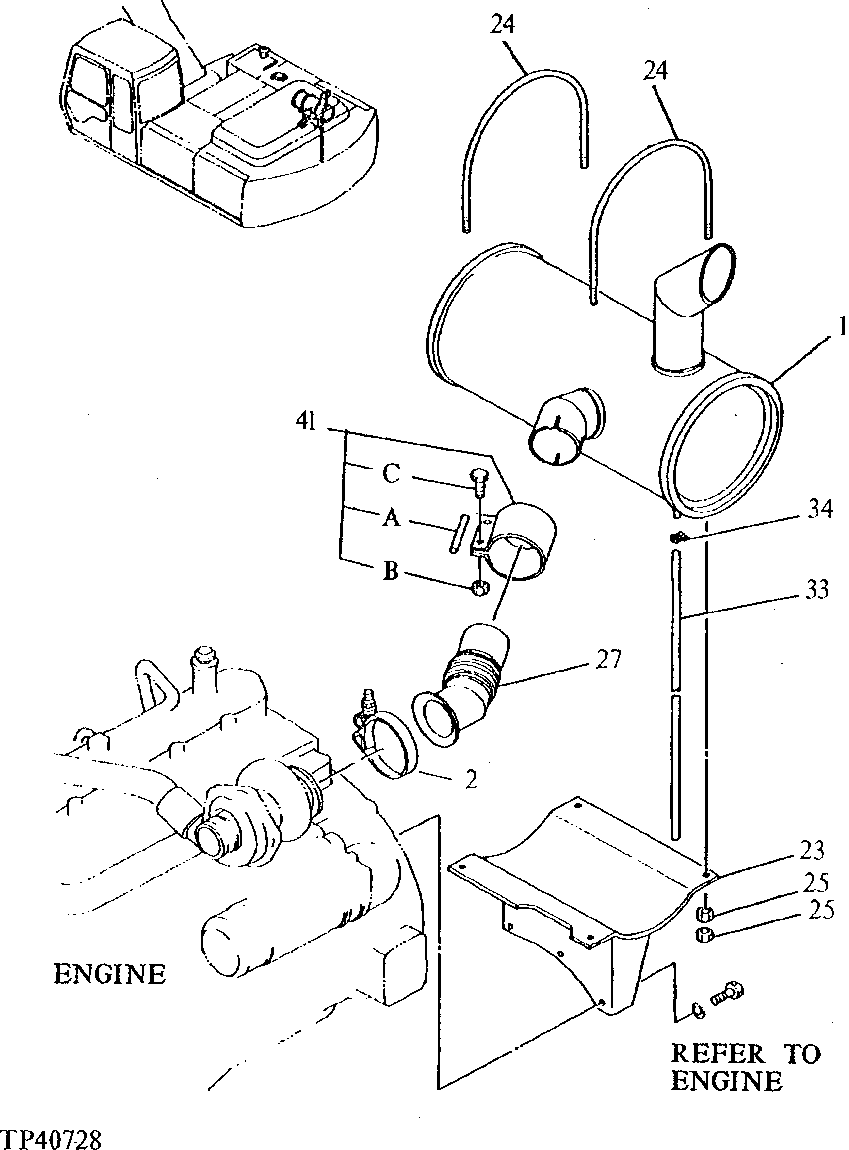

Запчасти John Deere 90ELC 72 - Muffler 0530 External Exhaust Systems

1

4687644

Muffler

(SUB FOR 4282411 ) (SUB FOR AT155323)

1шт.

2

RE70212

Clamp

(SUB FOR AT103553 OR RE40048)

1шт.

Clamp

(NOT AVAILABLE FOR SERVICE)

1шт.

23

7023278

Bracket

(SUB FOR AT155408)

1шт.

24

4189055

U-Bolt

(SUB FOR TH109412)

2шт.

25

14M7274

Nut

M10

8шт.

27

8052041

Exhaust Pipe

(SUB FOR AT155567)

1шт.

33

4297136

Tube

(SUB FOR AT155310 OR 4277931)

1шт.

34

TY22462

Clamp

(SUB FOR AR77962 OR AR48236)

1шт.

41

4283787

Clamp

(SUB FOR AT154968)

1шт.

41A

T130341

Gasket

1шт.

41B

H80440

Lock Nut

11.125 mm

2шт.

41C

4162836

Bolt

(SUB FOR AT154914)

2шт.
