67 - Reserve Water Tank

Запчасти John Deere 90ELC 67 - Reserve Water Tank 0510 COOLING SYSTEMS

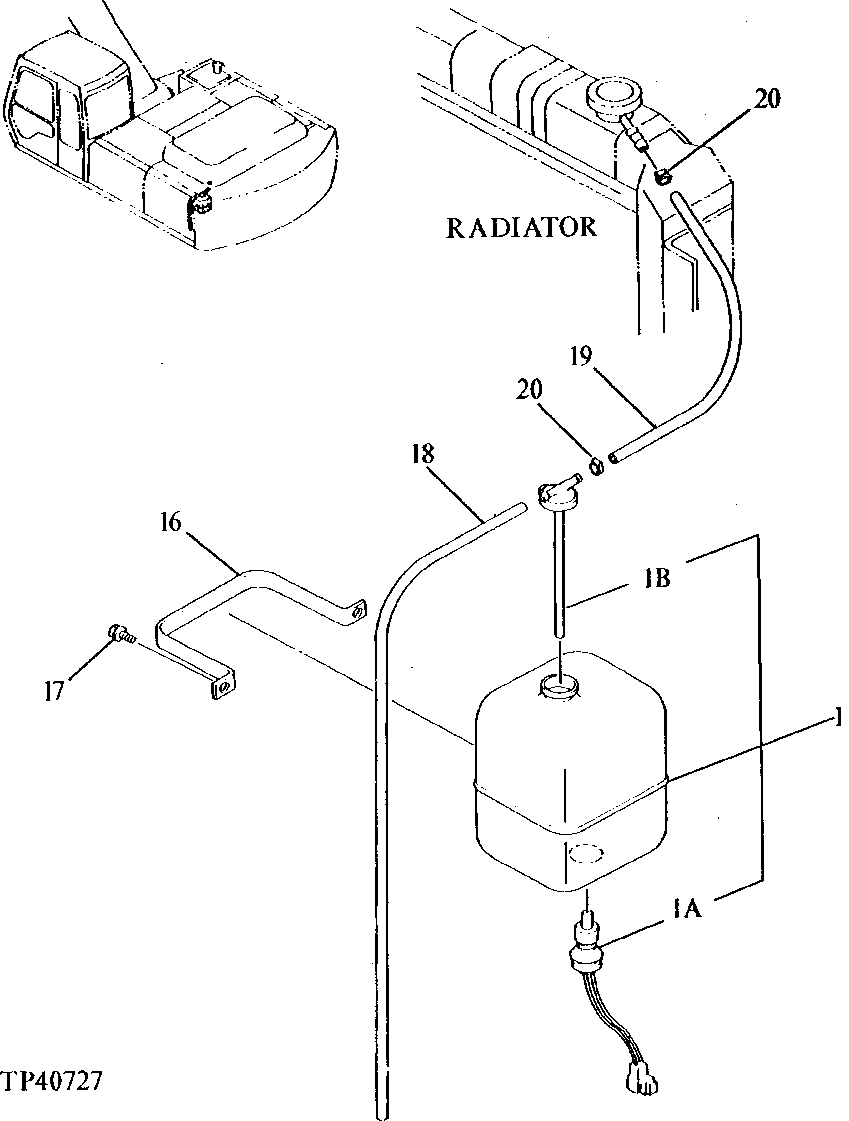

Схема запчастей John Deere 90ELC - 67 - Reserve Water Tank 0510 COOLING SYSTEMS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4206452

Tank

(SUB FOR AT147301)

1шт.

1A

4153251

Sender

(SUB FOR TH102932)

1шт.

1B

4396809

Cap

(SUB FOR TH102933)

1шт.

16

4284094

Clamp

(SUB FOR AT155337)

1шт.

17

21M7288

Screw

M6 X 10

2шт.

18

Hose

(CUT TO LENGTH FROM T79477 BULK MATERIAL)

1шт.

19

Hose

( AT126396 NO LONGER AVAILABLE) (SUB T79477 BULK MATERIAL CUT TO LENGTH)

1шт.

20

TY22462

Clamp

(SUB FOR AR77962 OR AR48236)

2шт.
