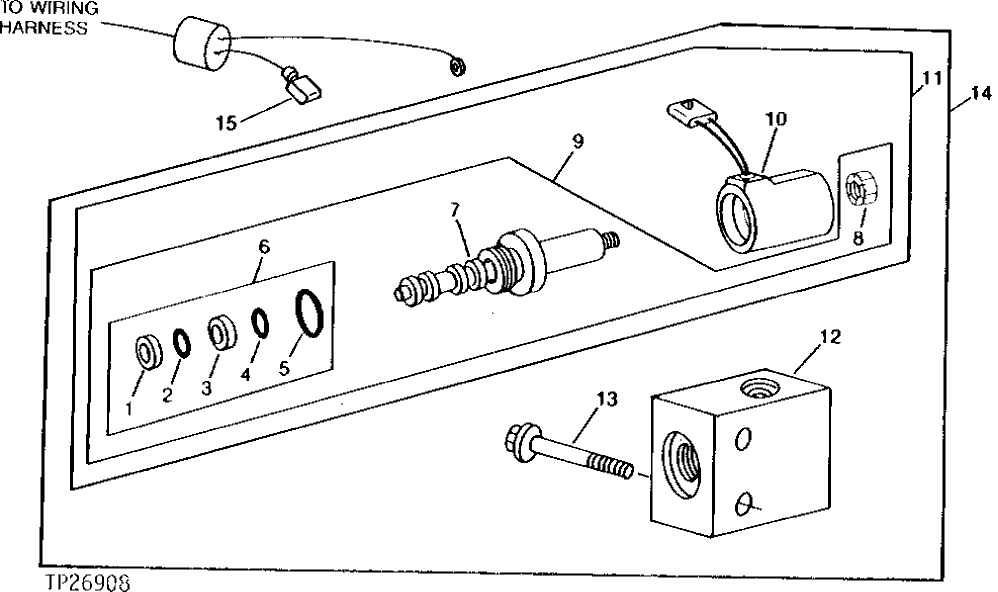

Запчасти John Deere 90D 94 - LOW SPEED SOLENOID VALVE 3360 - EXCAVATOR 33

1

R42926

BACK-UP RING

13.157 X 15.850 X 1.143 MM (0.518" X 0.624" X 0.045")

1шт.

2

T40308

O-RING

12.421 X 1.778 MM (0.489" X 0.070")

1шт.

3

R45187

BACK-UP RING

16.332 X 19.025 X 1.143 MM (0.643" X 0.749" X 0.045")

1шт.

4

R45638

O-RING

15.596 X 1.778 MM (0.614" X 0.070")

1шт.

5

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116")

1шт.

6

R42926

BACK-UP RING

(SUB FOR AT66730)

1шт.

7

VALVE

1шт.

8

M63707

LOCK NUT

6.350 MM (1/4")

1шт.

9

VALVE

(FURNISH RE21872)

1шт.

10

RE24904

ELECTRICAL COIL

1шт.

11

AT115457

SOLENOID VALVE

1шт.

12

HOUSING

(SUB AT306723) ( T107202 NO LONGER AVAILABLE)

1шт.

13

19M7808

SCREW

M10 X 65

2шт.

14

AT306723

ELEC.PROPORTIONAL VALVE

(INCLUDES ELECTRICAL COIL) (SUB FOR AT115437, AT116486, AT140041)

1шт.

15

WIRING HARNESS

(AT66692 NO LONGER REQUIRED)

1шт.
