90 - SAW VALVE

Запчасти John Deere 90D 90 - SAW VALVE 3360 - EXCAVATOR 33

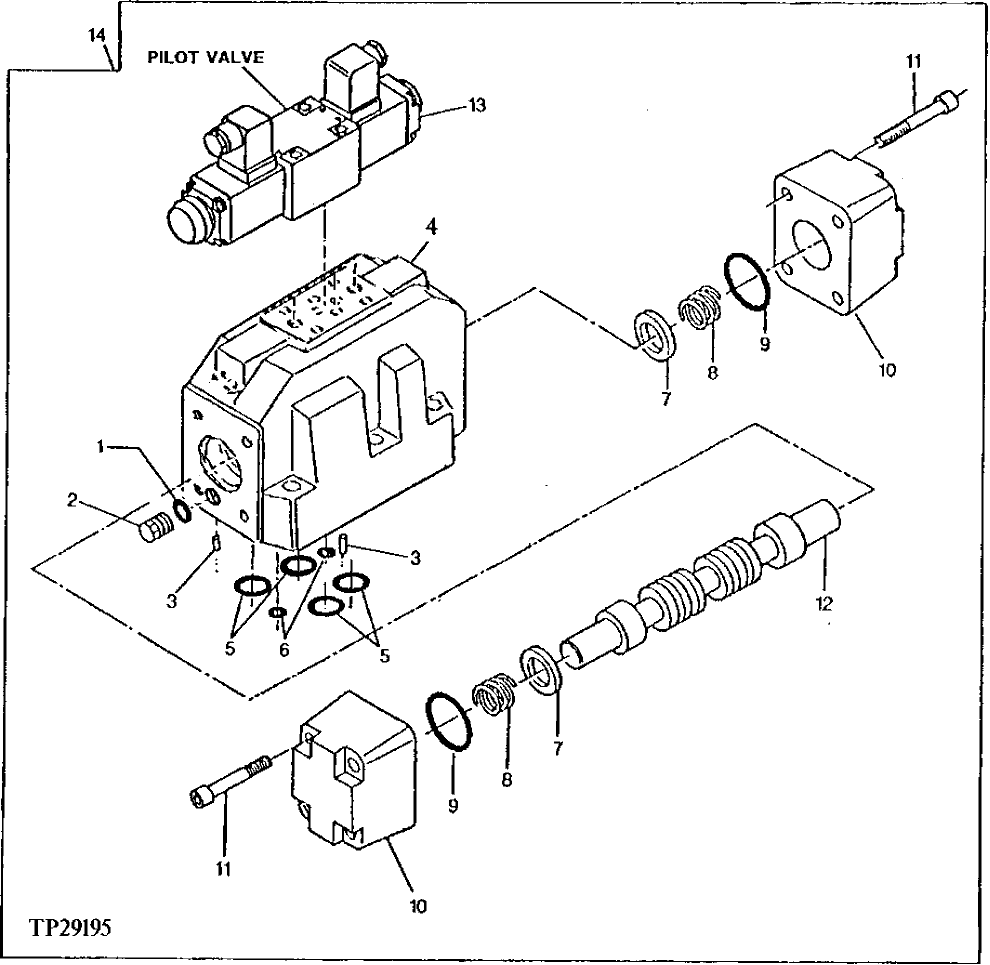

Схема запчастей John Deere 90D - 90 - SAW VALVE 3360 - EXCAVATOR 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AT108766

O-RING

(K)

1шт.

2

PLUG

(SUB AT125698 OR AT125534)

1шт.

3

DOWEL PIN

(SUB AT125698 OR AT125534)

2шт.

4

HOUSING

(SUB AT125698 OR AT125534)

1шт.

5

AT108768

O-RING

(K)

4шт.

6

AT108767

O-RING

(K)

2шт.

7

AT108763

RETAINER

2шт.

8

AT108771

EXTENSION SPRING

(USE WITH AT125698 INTERMITTENT SAW)

2шт.

AT108762

EXTENSION SPRING

(SUB AT125534) (USE WITH AT125534 CONSTANT SPEED SAW)

2шт.

9

AT108769

O-RING

(K)

2шт.

10

VALVE COVER

(SUB AT125698 OR AT125534)

2шт.

11

19M8444

SCREW

M12 X 60, (SUB FOR AT108764)

8шт.

12

VALVE SPOOL

(SUB AT125698 OR AT125534)

1шт.

13

AT108760

HYDR./PILOT CONTROL VALVE

1шт.

14

AT125698

ELEC.PROPORTIONAL VALVE

INTERMITTENT SPEED

1шт.

AT125534

ELEC.PROPORTIONAL VALVE

CONSTANT SPEED

1шт.
