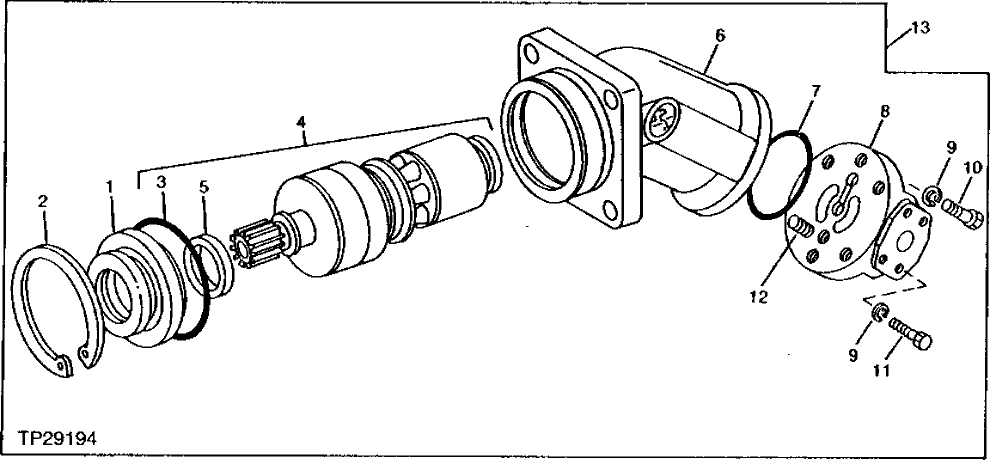

Запчасти John Deere 90D 88 - SAW PUMP 3360 - EXCAVATOR 33

1

AT108759

HOUSING

1шт.

2

40M7117

SNAP RING

(SUB FOR AT108758)

1шт.

3

H64810

O-RING

(K) (SUB FOR AT108748)

1шт.

4

AT108746

CYLINDER BLOCK

1шт.

5

AT108747

SEAL

(K)

1шт.

6

HOUSING

(SUB AT125536)

1шт.

7

T12582

O-RING

(K) (SUB FOR AT108749)

1шт.

8

PLATE

(SUB AT125536)

1шт.

9

12M7135

LOCK WASHER

10 MM, (SUB FOR AT108751) (SUB FOR 12M6791)

11шт.

10

19M8328

SCREW

M10 X 25, (SUB FOR AT108750)

3шт.

11

19M8444

SCREW

M12 X 60, (SUB FOR AT108753)

4шт.

12

DOWEL PIN

( 44M7107 NLA) (SUB FOR AT108756)

1шт.

13

AT125536

HYDRAULIC PUMP

1шт.
