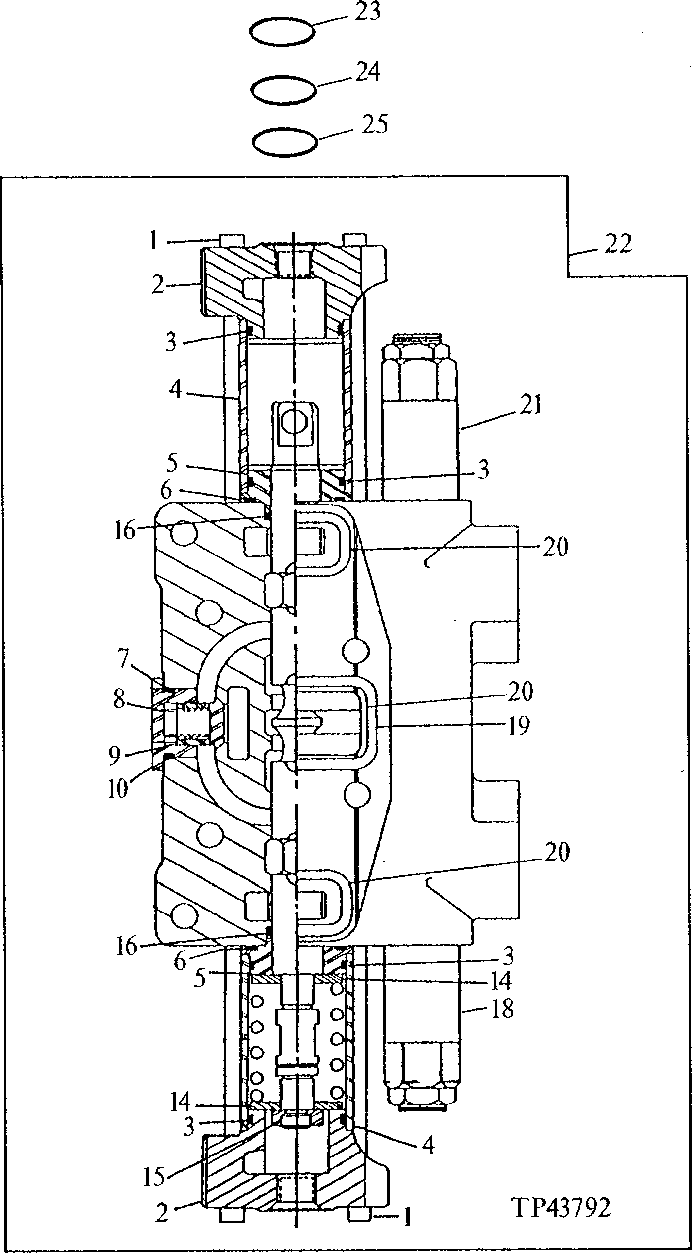

Запчасти John Deere 90D 86 - FORESTRY PACKAGE CONTROL VALVE SECTION 3360 - EXCAVATOR 33

1

19H3644

SCREW

5/16" X 4-1/2", (SUB FOR AT108699 OR 19H3644)

4шт.

2

T102430

CAP

(SUB FOR AT108705)

2шт.

3

H84318

O-RING

(SUB FOR AT108697)

4шт.

4

T102436

SLEEVE

2шт.

5

T102428

RETAINER

2шт.

6

M4125T

O-RING

(SUB FOR AT108706)

2шт.

7

U12547

O-RING

(SUB FOR AT108701)

1шт.

8

T103365

SPRING

(SUB FOR AT108702)

1шт.

9

T103364

POPPET

(SUB FOR AT108703)

1шт.

10

T103366

DRAIN PLUG

(SUB FOR AT108700)

1шт.

14

T103088

WASHER

(SUB FOR AT108704)

2шт.

15

14H849

NUT

7/16", (SUB FOR AT108698)

1шт.

16

R495R

O-RING

(SUB FOR AT108692)

2шт.

18

AT108693

BLEED VALVE

(RELIEF)

1шт.

19

U45843

WASHER

(SUB FOR AT108696)

1шт.

20

T103464

RING

(SUB FOR AT108695)

3шт.

21

AT108693

BLEED VALVE

(RELIEF)

1шт.

22

AT108694

PRESSURE RELIEF VALVE

1шт.

23

AT124574

O-RING

(A)

1шт.

24

BACK-UP RING

(A) ( AT124573 NO LONGER AVAILABLE)

1шт.

25

U12547

O-RING

(SUB FOR AT119357) A

1шт.
