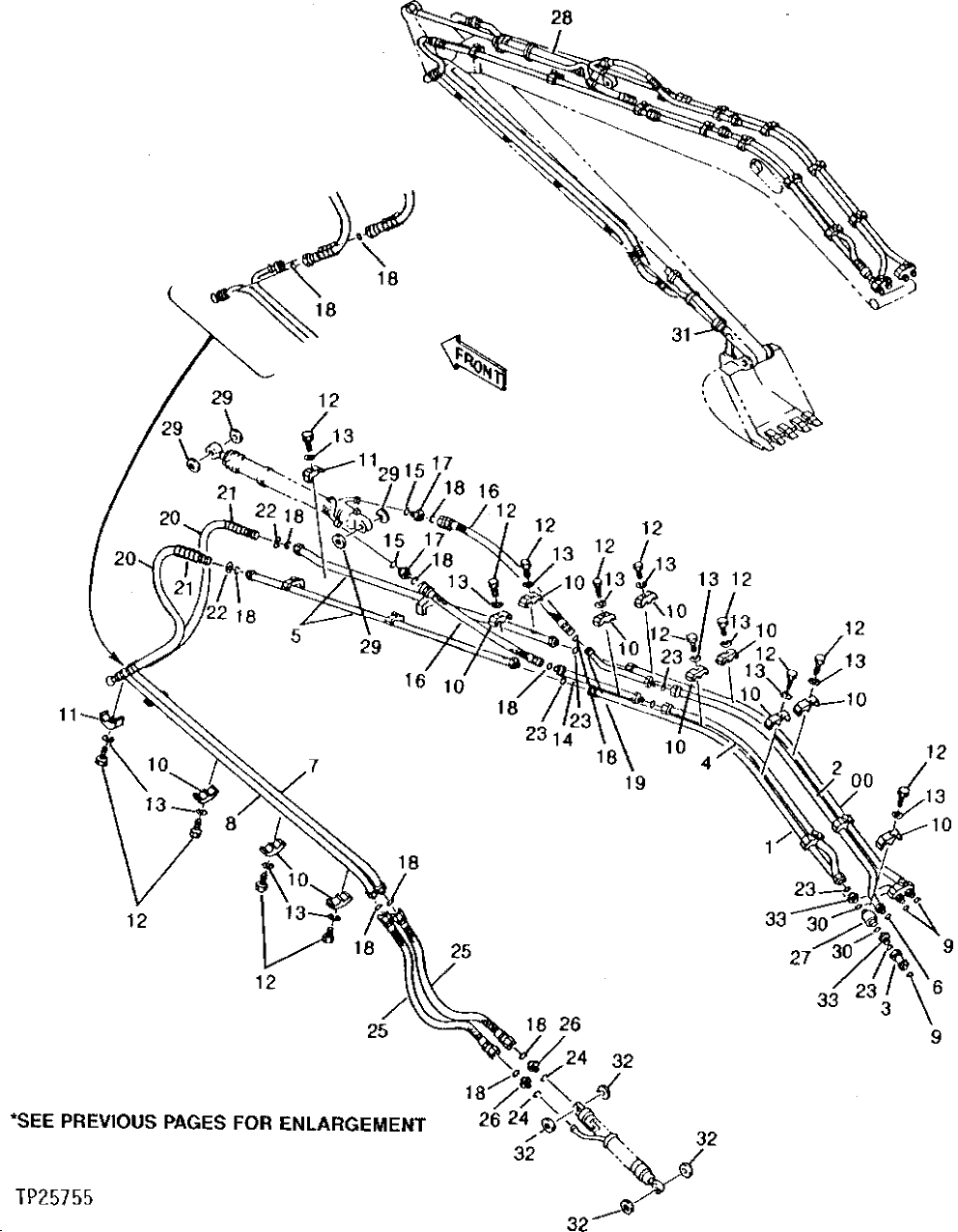

Запчасти John Deere 90D 82 - SUPER LONG FRONT ARM, BOOM LINES AND FITTINGS 3360 - EXCAVATOR 33

0

8043254

OIL LINE

(SUB FOR TH111754)

1шт.

1

8042436

OIL LINE

(SUB FOR TH111755)

1шт.

2

8042437

OIL LINE

(SUB FOR TH111756)

1шт.

3

9731243

OIL LINE

(SUB FOR TH111757)

1шт.

4

8042438

TUBE

(SUB FOR TH111758)

1шт.

5

8042441

TUBE

(SUB FOR TH111759)

2шт.

6

T76938

O-RING

(SUB FOR TH108326)

1шт.

7

8042443

TUBE

(SUB FOR TH111760)

1шт.

8

8042442

TUBE

(SUB FOR TH111761)

1шт.

9

T77858

O-RING

(SUB FOR TH108349)

3шт.

10

4189859

CLAMP

(SUB FOR TH109071)

16шт.

11

4190126

CLAMP

(SUB FOR TH109830)

6шт.

12

19M7362

CAP SCREW

M12 X 55

22шт.

13

12H301

LOCK WASHER

1/2"

22шт.

14

8042439

OIL LINE

(SUB FOR TH111764)

1шт.

15

TH101926

O-RING

1шт.

16

AT120769

HYDRAULIC HOSE - FABRICATE

2шт.

17

AT318016

ADAPTER FITTING

(SUB FOR 4189537, TH110496)

2шт.

18

T77858

O-RING

(SUB FOR TH108349)

12шт.

19

8042440

OIL LINE

(SUB FOR TH111763)

1шт.

20

AT120770

HYDRAULIC HOSE - FABRICATE

2шт.

21

4053610

HOSE GUARD

(SUB FOR TH104495)

2шт.

22

4203220

WASHER

(SUB FOR TH109827)

2шт.

23

T76938

O-RING

(SUB FOR TH108326)

6шт.

24

AT318035

O-RING

(SUB FOR 4506424, TH100055)

1шт.

25

AT120771

HYDRAULIC HOSE - FABRICATE

2шт.

26

A853166

ADAPTER FITTING

(SUB FOR AT107392 OR 4189619)

2шт.

27

9075046

FLOW CONTROL HYD. VALVE

(SUB FOR AT120774) (SLOW RETURN)

1шт.

28

HYDRAULIC CYLINDER

(SUB FOR TH111762) (ARM)

1шт.

29

TH102446

SEAL

(I.D. 80 MM - O.D. 95 MM)

4шт.

30

TH101926

O-RING

1шт.

31

4241241

HYDRAULIC CYLINDER

(SUB FOR AT120773) (SUB FOR AT86766) (BUCKET)

1шт.

32

4117954

SEAL

(SUB FOR TH106006)

4шт.

33

4189535

ADAPTER FITTING

2шт.
