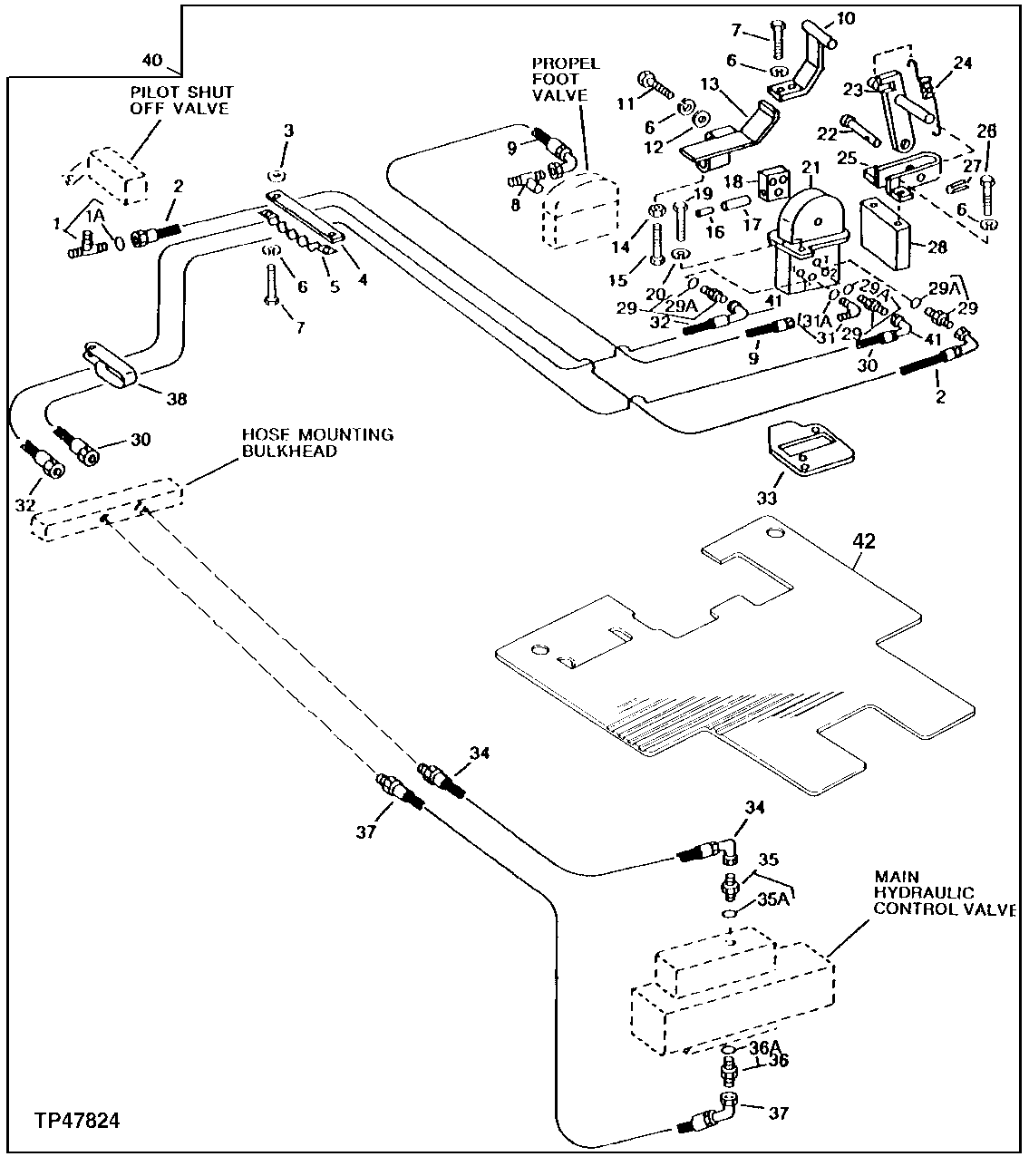

Запчасти John Deere 90D 70 - AUXILIARY FUNCTION VALVE, HOSES, PEDAL, CIRCUIT RELIEF VALVES AND PEDAL LOCK 3360 - EXCAVATOR 33
№
Артикул
Название
Примечание
Количество
1
4208911
TEE FITTING
(SUB FOR TH110202) (SUB FOR AT126456)
1шт.
1A
CH11570
O-RING
1шт.
2
AT72803
HYDRAULIC HOSE - FABRICATE
9/16" X 1 499 MM (59") X 9/16", (SUB FOR TH110198)
1шт.
3
24M7028
WASHER
10.500 X 20 X 2 MM
2шт.
4
9727637
PLATE
(SUB FOR TH108457)
1шт.
5
9727639
HOSE CLAMP
(SUB FOR TH108456)
1шт.
8
4208473
TEE FITTING
(SUB FOR TH110203)
1шт.
9
AT69452
HYDRAULIC HOSE - FABRICATE
9/16" X 1 225 MM (48-1/4") X 9/16", (SUB FOR TH110199)
1шт.
10
9728875
FOOTREST
(SUB FOR TH110195)
1шт.
12
24M7028
WASHER
10.500 X 20 X 2 MM
2шт.
13
8046079
PEDAL
(SUB FOR TH110191) (SUB FOR AT134292)
1шт.
15
19M8008
CAP SCREW
M8 X 35, (SUB FOR AT134128)
1шт.
16
34M7062
SPRING PIN
5 X 32 MM
1шт.
17
34M7124
SPRING PIN
8 X 30 MM, (SUB FOR 34M7065)
1шт.
18
4211166
SUPPORT
(SUB FOR TH110190)
1шт.
19
19M8008
CAP SCREW
M8 X 35
3шт.
21
9074843
HYD ACTUATED CONTROL VALVE
(SUB FOR TH110188) (ALSO ORDER (2) TH111705 CIRCUIT RELIEF VALVES)
1шт.
22
45M3667
PIN FASTENER
10 X 28 MM, (SUB FOR TH105681)
1шт.
23
9733399
BRACKET
(SUB FOR TH110192) (SUB FOR AT134303)
1шт.
24
4149125
SPRING
(SUB FOR TH106748)
1шт.
25
8034081
BRACKET
(SUB FOR TH110193)
1шт.
26
19M8761
SCREW
M10 X 22, (SUB FOR TH102993)
2шт.
27
11M7082
COTTER PIN
2.500 X 25 MM, (SUB FOR TH105682) (SUB FOR 11M7080)
1шт.
28
4211167
SPACER
(SUB FOR TH110194)
1шт.
14M7274
NUT
M10, (SUB FOR T114432) (NOT ILLUSTRATED) UNDER CAB FLOOR BENEATH TH110194
2шт.
29
4200467
ADAPTER FITTING
(SUB FOR TH108417)
3шт.
29A
M800650
PACKING
1шт.
30
AT67064
HYDRAULIC HOSE - FABRICATE
9/16" X 29-1/2" X 9/16", (SUB FOR TH110196 OR 4210338, ALONG WITH AE24616)
1шт.
31
AT318014
ELBOW FITTING
(SUB FOR 4156434) (SUB FOR TH101930)
1шт.
31A
M800650
PACKING
1шт.
32
AT67064
HYDRAULIC HOSE - FABRICATE
9/16" X 29-1/2" X 9/16", (SUB FOR TH110196 OR 4210338, ALONG WITH AE24616)
1шт.
33
9728874
PLATE
(SUB FOR TH110189)
1шт.
34
AT72803
HYDRAULIC HOSE - FABRICATE
9/16" X 59" X 9/16", (SUB FOR 4209792, ALONG WITH R27238 AND 14H832)
1шт.
R27238
FITTING
(NOT ILLUSTRATED)
1шт.
14H832
NUT
9/16", (NOT ILLUSTRATED)
1шт.
35
4202422
ADAPTER FITTING
(SUB FOR TH108440)
1шт.
35A
CH11570
O-RING
1шт.
36
4200466
ADAPTER FITTING
(SUB FOR TH108320)
1шт.
36A
CH11570
O-RING
1шт.
37
AT50269
HYDRAULIC HOSE - FABRICATE
9/16" X 40" X 9/16", (SUB FOR 4209793, ALONG WITH R27238 AND 14H832)
1шт.
R27238
FITTING
(NOT ILLUSTRATED)
1шт.
14H832
NUT
9/16", (NOT ILLUSTRATED)
1шт.
38
4190292
CLIP
(SUB FOR TH108321)
1шт.
39
4228353
PRESSURE RELIEF VALVE
(NOT ILLUSTRATED OR INCLUDED IN KIT - MUST BE ORDRED SEPARATELY) (USE WITH TH110188) (SUB FOR TH104759, THIS APPLICATION) (SUB FOR TH111705) (RELIEF SETTING AT 4270 PSI)
2шт.
40
TH108154
KIT
AUXILIARY FUNCTION
1шт.
41
AE24616
ELBOW FITTING
2шт.
42
3040042
MAT
(SUB FOR AT132472)
1шт.
Выбрано товаров: 52
