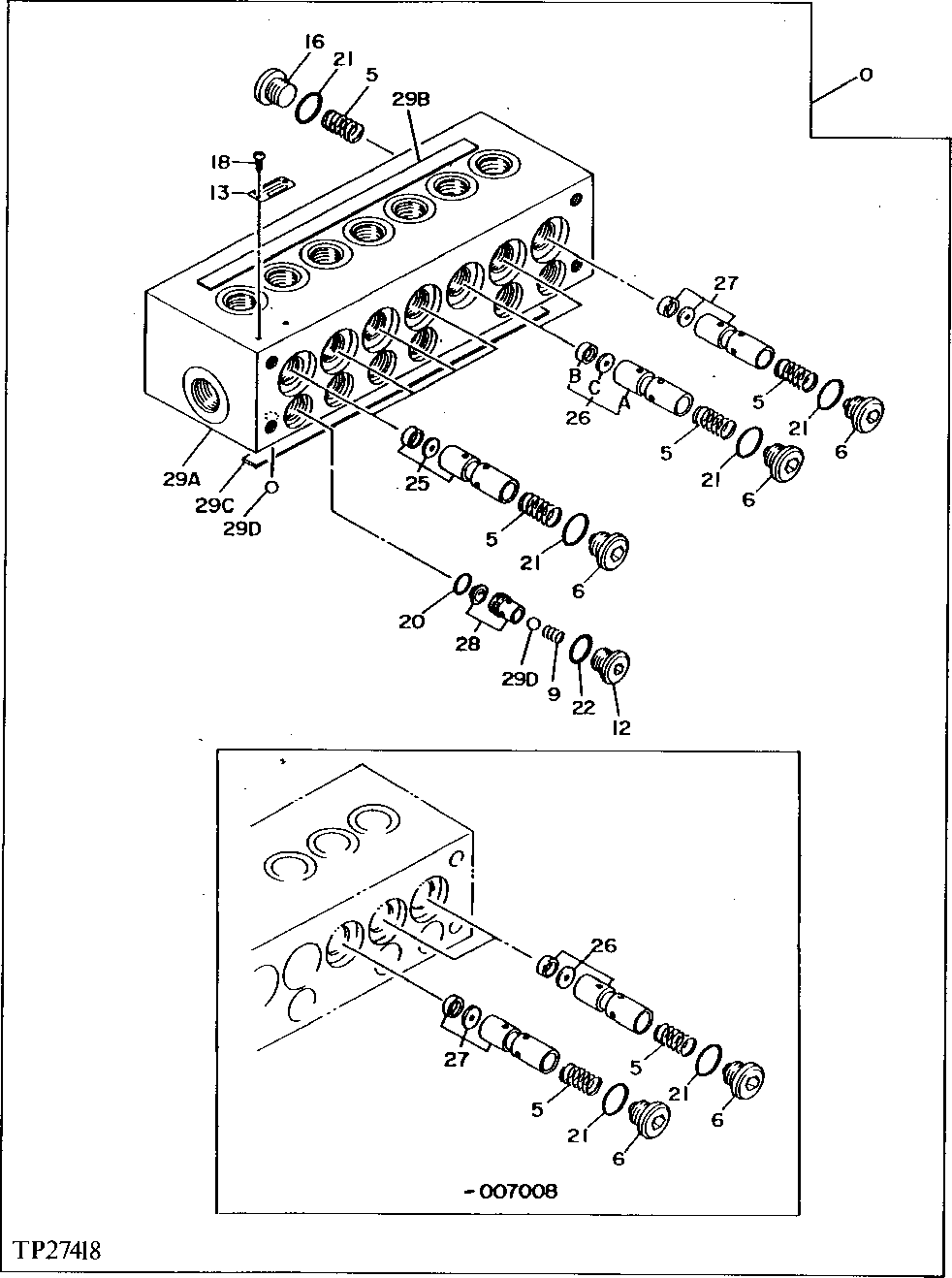

Запчасти John Deere 90D 68 - FLOW CONTROL VALVE 3360 - EXCAVATOR 33

0

4188552

FLOW CONTROL HYD. VALVE

(SUB FOR TH109593)

1шт.

5

0309801

SPRING

(SUB FOR TH109280)

14шт.

6

0309802

PIPE PLUG

(SUB FOR TH109281)

7шт.

9

0309803

SPRING

(SUB FOR TH109282)

6шт.

12

AT49216

FITTING PLUG

(SUB FOR TH109283) (CONTAINS O-RING)

6шт.

T70177

O-RING

(NOT ILLUSTRATED)

1шт.

13

SERIAL NUMBER PLATE

(NOT AVAILABLE FOR SERVICE)

1шт.

16

15M7036

DRAIN PLUG

(SUB FOR TH109285 OR 0309805)

7шт.

18

0208717

SCREW

(SUB FOR TH102697)

2шт.

20

CH11569

PACKING

(SUB FOR TH100032)

6шт.

21

CH11570

O-RING

14шт.

22

4S00110

O-RING

(SUB FOR TH109284 OR R26448, THIS APPLICATION)

6шт.

25

0309807

PLUNGER

(SUB FOR TH109287)

4шт.

26

4212780

PLUNGER

(SUB FOR TH111865)

2шт.

27

4212781

PLUNGER

(SUB FOR TH111866)

1шт.

28

0309810

FILTER

(SUB FOR TH109290)

6шт.

29A

HOUSING

(SUB TH109593)

1шт.

29B

SEAL

( TH109292 NO LONGER AVAILABLE)

1шт.

29C

SEAL

( TH109293 NO LONGER AVAILABLE)

1шт.

29D

L38718

BALL

(SUB FOR TH109294)

12шт.
