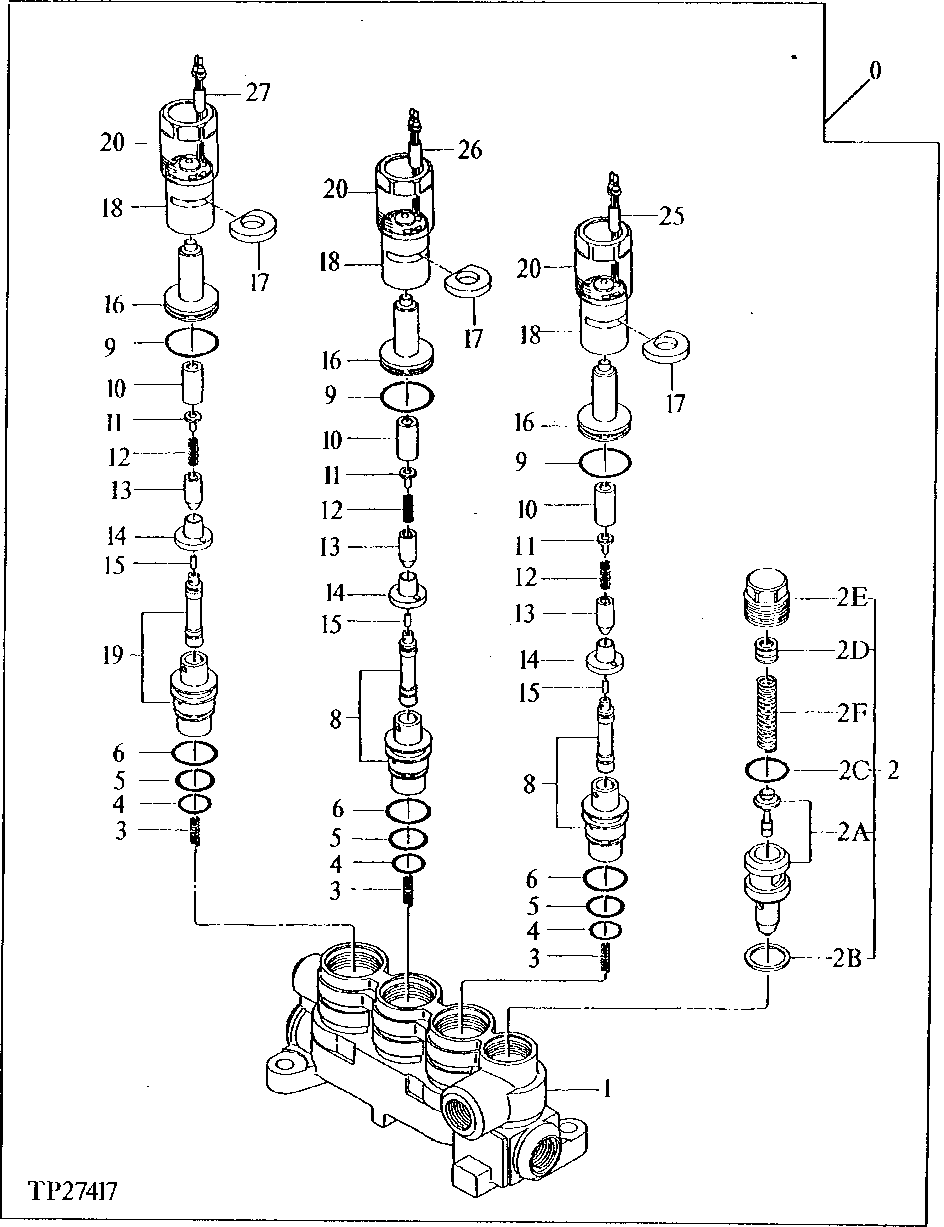

Запчасти John Deere 90D 62 - SOLENOID VALVE 3360 - EXCAVATOR 33

0

4196411

SOLENOID VALVE

(SUB FOR TH108398)

1шт.

1

HOUSING

( TH109249 NO LONGER AVAILABLE)

1шт.

2

RELIEF VALVE

( TH109250 NO LONGER AVAILABLE)

1шт.

2A

RELIEF VALVE

( TH109251 NO LONGER AVAILABLE)

1шт.

2B

0308704

GASKET

(SUB FOR TH109252)

1шт.

2C

4487138

O-RING

(SUB FOR TH109253 OR 0308705)

1шт.

2D

SHIM

(K) (SUB AT146246) ( TH109254 NO LONGER AVAILABLE)

1шт.

SHIM

(K) (SUB AT146246) ( TH109255 NO LONGER AVAILABLE)

1шт.

SHIM

(K) (SUB AT146246) ( TH109256 NO LONGER AVAILABLE)

1шт.

2E

PLUG

( TH109257 NO LONGER AVAILABLE)

1шт.

2F

0308710

SPRING

(SUB FOR TH109258)

1шт.

3

0308711

SPRING

(SUB FOR TH109259)

3шт.

4

CH11570

O-RING

3шт.

5

985099

O-RING

(SUB FOR TH101479)

3шт.

6

AT264333

O-RING

(SUB FOR TH100096)

3шт.

8

VALVE SPOOL

( TH109260 NO LONGER AVAILABLE)

2шт.

9

0308713

O-RING

(SUB FOR TH109261)

3шт.

10

PIPE

( 0308714 NO LONGER AVAILABLE) (SUB FOR TH109262)

3шт.

4488303

LINE

3шт.

11

0308715

VALVE SEAT

(SUB FOR TH109263)

3шт.

12

4488310

SPRING

(SUB FOR TH109264 OR 0308716)

3шт.

13

3096332

PLUNGER

(SUB FOR TH109265 OR 0308717)

3шт.

14

0308718

STOP

(SUB FOR TH109266)

3шт.

15

0308719

PIN

(SUB FOR TH109267)

3шт.

16

HOUSING

( TH109268 NO LONGER AVAILABLE)

3шт.

17

0308721

WASHER

(SUB FOR TH109269)

3шт.

18

0308722

SOLENOID

(SUB FOR TH109270)

3шт.

19

VALVE SPOOL

(SUB TH108398) ( TH109271 NO LONGER AVAILABLE)

1шт.

20

0308724

SCREW

(SUB FOR TH109272)

3шт.

25

TAPE

( TH109273 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

26

TAPE

( TH109274 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

27

TAPE

( TH109275 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.
