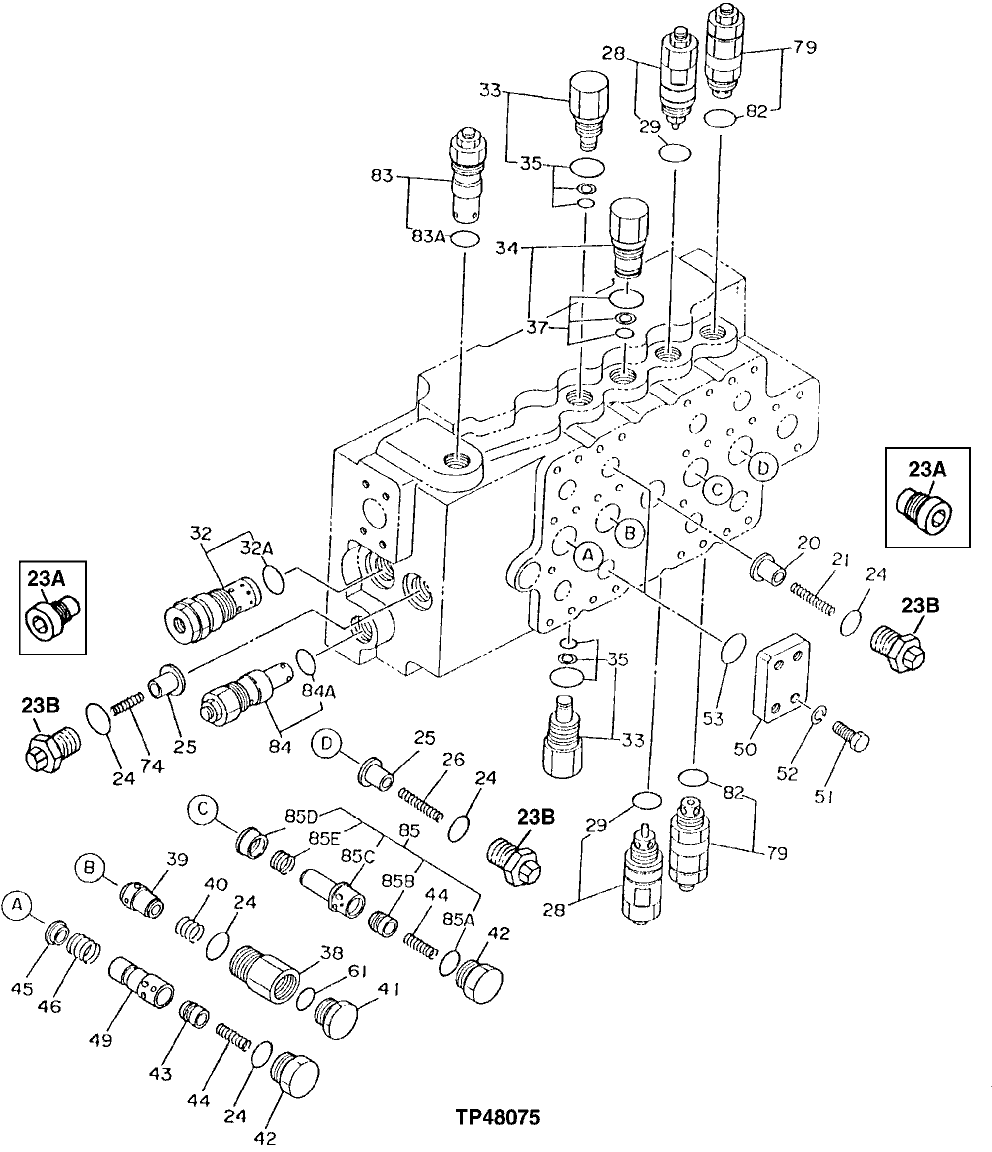

Запчасти John Deere 90D 48 - CONTROL VALVE SECTIONS 3360 - EXCAVATOR 33

20

4235391

POPPET

(SUB FOR TH111922) (USE WITH TH109524 ORIGINAL CONTROL VALVE)

1шт.

21

4235392

SPRING

(SUB FOR TH111923) (USE WITH TH109524 ORIGINAL CONTROL VALVE)

1шт.

23A

FITTING PLUG

(SUB AT204926)

3шт.

23B

0496323

FITTING PLUG

(SUB FOR TH102731, THIS APPLICATION) (SUB FOR AT204926)

3шт.

24

U17409

O-RING

26.619 X 2.946 MM (1.048" X 0.116")

5шт.

25

0111711

POPPET

(SUB FOR TH102728)

2шт.

26

0224410

SPRING

(SUB FOR TH102729)

1шт.

28

4228353

PRESSURE RELIEF VALVE

(SUB FOR TH104759, THIS APPLICATION) (SUB FOR TH111705) (ANTI-CAVITATION CIRCUIT RELIEF VALVE) (RELIEF SETTING AT 4270 PSI)

2шт.

29

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116") (SUB FOR TH112252)

1шт.

32

0309709

RELIEF VALVE

(SUB FOR TH109974) (FLOW SENSING)

1шт.

32A

U17409

O-RING

26.619 X 2.946 MM (1.048" X 0.116")

1шт.

33

0667927

FITTING PLUG

(SUB FOR TH109975 OR AT177441) (SUB FOR AT213687)

2шт.

0667927

FITTING PLUG

(SUB FOR TH109975 OR AT177441) (SUB FOR AT213687)

1шт.

0667927

FITTING PLUG

(SUB FOR TH109975 OR AT177441) (SUB FOR AT213687)

1шт.

R27175

DRAIN PLUG

1шт.

U12547

O-RING

23.470 X 2.946 MM (0.924" X 0.116")

1шт.

0413616

O-RING

(SUB FOR 4154207)

1шт.

34

0413616

O-RING

(SUB FOR TH109976) (SUB FOR AT177442)

1шт.

35

4257233

SEAL KIT

(SUB FOR TH112253)

1шт.

37

4257234

SEAL KIT

(SUB FOR TH112254)

1шт.

38

0309713

FITTING PLUG

(SUB FOR TH109978)

1шт.

39

0309714

POPPET

(SUB FOR TH109979)

1шт.

40

0309715

SPRING

(SUB FOR TH109980)

1шт.

41

0412310

FITTING PLUG

(SUB FOR TH109981) (SUB FOR AT154037)

1шт.

42

0496324

FITTING PLUG

(SUB FOR TH109982, THIS APPLICATION) (SUB FOR AT204927)

2шт.

43

0125107

CHECK VALVE

(SUB FOR TH109983)

1шт.

44

0125108

SPRING

(SUB FOR TH109984)

2шт.

45

0496316

POPPET

(SUB FOR TH109985, THIS APPLICATION) (SUB FOR AT166924)

1шт.

46

4237927

SPRING

(SUB FOR TH109986, THIS APPLICATION) (SUB FOR AT166925)

1шт.

49

0496317

SLEEVE

(SUB FOR TH109989, THIS APPLICATION) (SUB FOR AT166922)

1шт.
