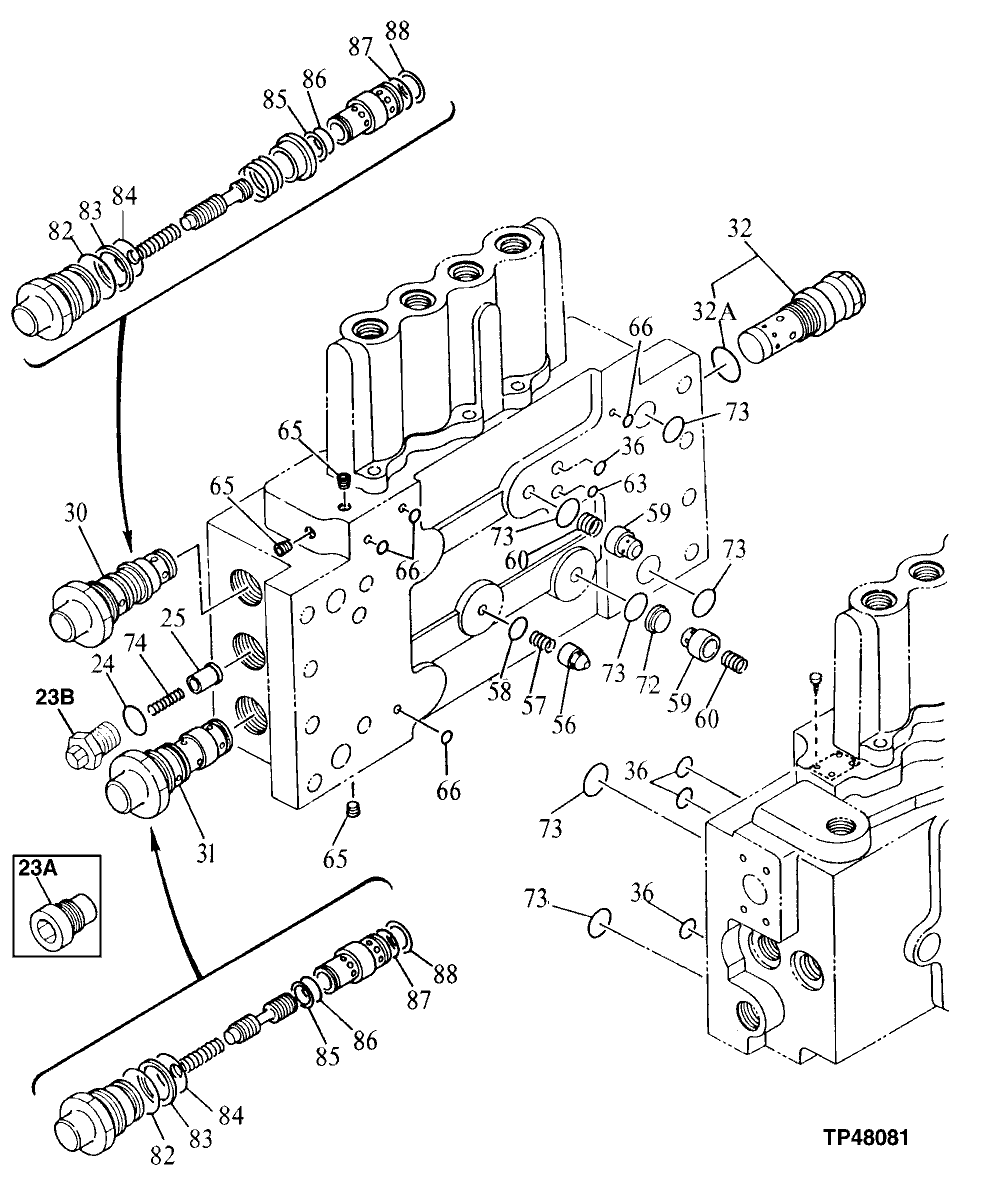

Запчасти John Deere 90D 46 - CONTROL VALVE 3360 - EXCAVATOR 33

23A

FITTING PLUG

(SUB AT204926)

1шт.

23B

0496323

FITTING PLUG

(SUB FOR TH102731, THIS APPLICATION) (SUB FOR AT204926)

1шт.

24

U17409

O-RING

1шт.

25

0496312

POPPET

(SUB FOR TH102728, THIS APPLICATION) (SUB FOR AT168183)

1шт.

30

4282693

FLOW CONTROL HYD. VALVE

(SUB FOR TH109972 OR AT131218, THIS APPLICATION) (SUB FOR AT131218) (FLOW COMBINER)

1шт.

31

0309708

FLOW CONTROL HYD. VALVE

(SUB FOR TH109973) (SELECTOR)

1шт.

32

0309709

RELIEF VALVE

(SUB FOR TH109974) (FLOW SENSING)

1шт.

32A

U17409

O-RING

1шт.

36

4506418

O-RING

(SUB FOR TH111686)

4шт.

56

0309604

POPPET

(SUB FOR TH111966)

1шт.

57

0309605

SPRING

(SUB FOR TH111967)

1шт.

58

AT264333

O-RING

(SUB FOR 4226443, TH111687, 4028265)

1шт.

59

0309608

POPPET

(SUB FOR TH111968)

2шт.

60

0309606

SPRING

(SUB FOR TH111969)

2шт.

63

T111819

O-RING

(SUB FOR TH111688, 4506415)

1шт.

65

94-2010

FITTING PLUG

(SUB FOR TH100689)

3шт.

66

CH11568

PACKING

(SUB FOR TH111689, TH104588 AND 4506407)

4шт.

72

0309607

SEAT

(SUB FOR TH111970)

1шт.

73

CH17886

PACKING

(SUB FOR TH111690) (SUB FOR 4509182)

6шт.

74

0309728

SPRING

(SUB FOR TH109997)

1шт.

82

O-RING

(K) (SUB AT131219)

1шт.

83

O-RING

(K) (SUB AT131219)

1шт.

84

O-RING

(K) (SUB AT131219)

1шт.

85

O-RING

(K) (SUB AT131219)

1шт.

86

O-RING

(K) (SUB AT131219)

1шт.

87

O-RING

(K) (SUB AT131219)

1шт.

88

O-RING

(K) (SUB AT131219)

1шт.

90

4224901

HYD ACTUATED CONTROL VALVE

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES) (SUB FOR TH109524, TH111925 AND AT186100)

1шт.
