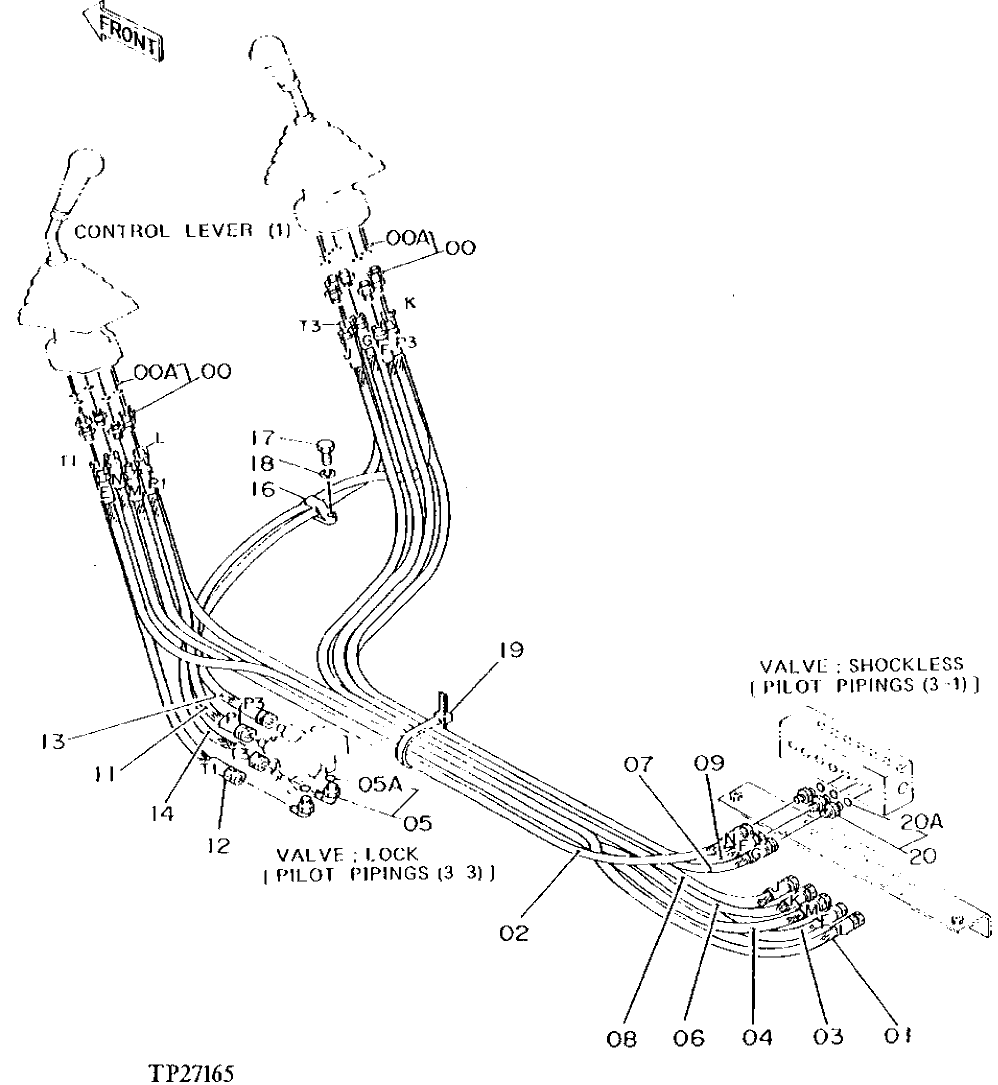

Запчасти John Deere 90D 42 - PILOT PLUMBING 3360 - EXCAVATOR 33

0

4200467

ADAPTER FITTING

(SUB FOR TH108417)

12шт.

0A

M800650

PACKING

(SUB M800650)

1шт.

1

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109622 OR AH99310, THIS APPLICATION) (L)

1шт.

2

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109623 OR AH99310, THIS APPLICATION) (N)

1шт.

3

AH99310

HYDRAULIC HOSE

9/16" X 1 829 MM (72") X 9/16", (E) (SUB FOR TH109624)

1шт.

4

AH99310

HYDRAULIC HOSE

9/16" X 1 829 MM (72") X 9/16", (M) (SUB FOR TH109625)

1шт.

5

4154671

ELBOW FITTING

(SUB FOR TH101047)

2шт.

5A

CH11570

O-RING

1шт.

6

AE42000

HYDRAULIC HOSE

(SUB FOR TH109626) (K)

1шт.

7

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109627 OR AH99310, THIS APPLICATION) (G)

1шт.

8

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109628 OR TH108468, THIS APPLICATION) (J)

1шт.

9

4203024

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH108468) (SUB FOR TH109629 OR AH99310, THIS APPLICATION) (F)

1шт.

11

AT48428

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109630) (P1)

1шт.

12

AH108250

HOSE

(SUB FOR TH109631) (T1)

1шт.

13

AT46299

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109632) (P3)

1шт.

14

AT46299

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH109633) (T3)

1шт.

16

4190292

CLIP

(SUB FOR TH108321)

1шт.

17

19M8324

CAP SCREW

M10 X 16

1шт.

18

12M7066

LOCK WASHER

10 MM

1шт.

19

H77698

TIE BAND

(SUB FOR T44946)

1шт.

20

4200466

ADAPTER FITTING

(SUB FOR TH108320)

3шт.

20A

CH11570

O-RING

1шт.
